INSTALLATION: MERCHANDISER SET-UP / ELECTRICAL SET-UP

1. Merchandiser Set-Up

 Remove the rear lower grille.

 Ensure that the manufacturer provided

hot gas evaporator pan is installed under

the condensate drain.

 Ensure that overflow evaporator pan is

plugged into the receptacle inside base.

 Reinstall the rear grille after confirming

the above.

2. Electrical Set-Up

 With Power Cord:

 For your safety, equipment is

furnished with a properly

grounded cord connector.

Do not attempt to defeat the

grounded connector!

 Plug cord into certified electrical outlet

with ground. See Overview/Warnings

sheet for more specifics.

 Without Power Cord:

Note: Servicing to be accomplished by

certified electrical contractor.

 Electrical Leads

 Remove cover from the left lower

rear of the unit.

 Electrical leads connections are

provided in the junction box.

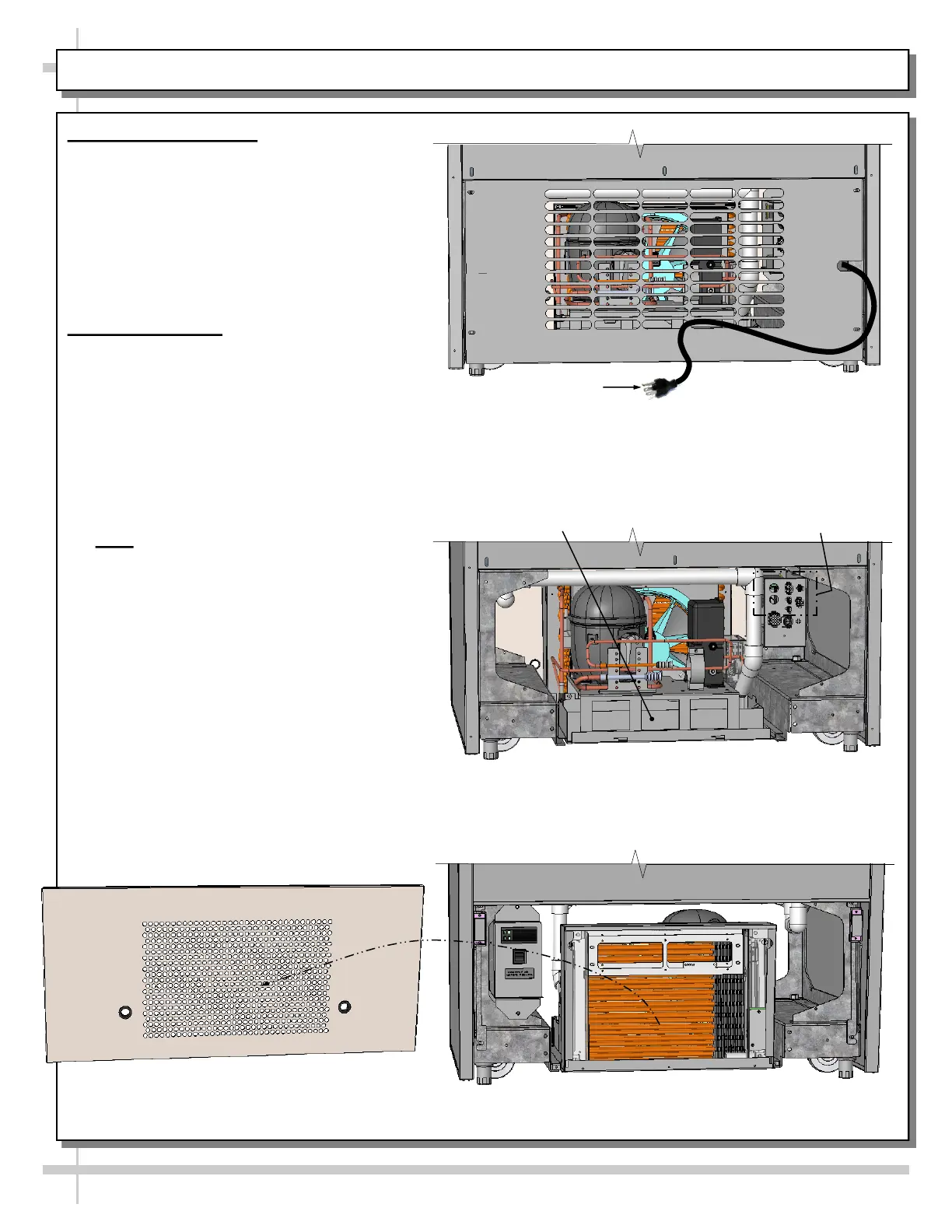

Rear Refrigeration Access After Rear Grille Removed

(Model HECO37R Shown. Your Unit May Not Reflect

Every Feature Or Option Of Your Particular Case)

Electrical Leads

(If No Power Cord)

Hot Gas

Condensate Pan

Rear Refrigeration Access After Rear Grille Removed

(Model HECO37R Shown. Your Unit May Not Reflect

Every Feature Or Option Of Your Particular Case)

Plug

Front Refrigeration Access After Front Grille Removed

(Model HECO37R Shown Above)
