CASE REMOVAL FROM SKID (LEVELERS/CASTERS)

Various Types Of

Case Shipping

Brackets

1. Removing Case Shipping Brackets That Are Attached To Skid

 Remove screws holding Case Shipping Brackets to skid.

 Remove Case Shipping Brackets from Skid.

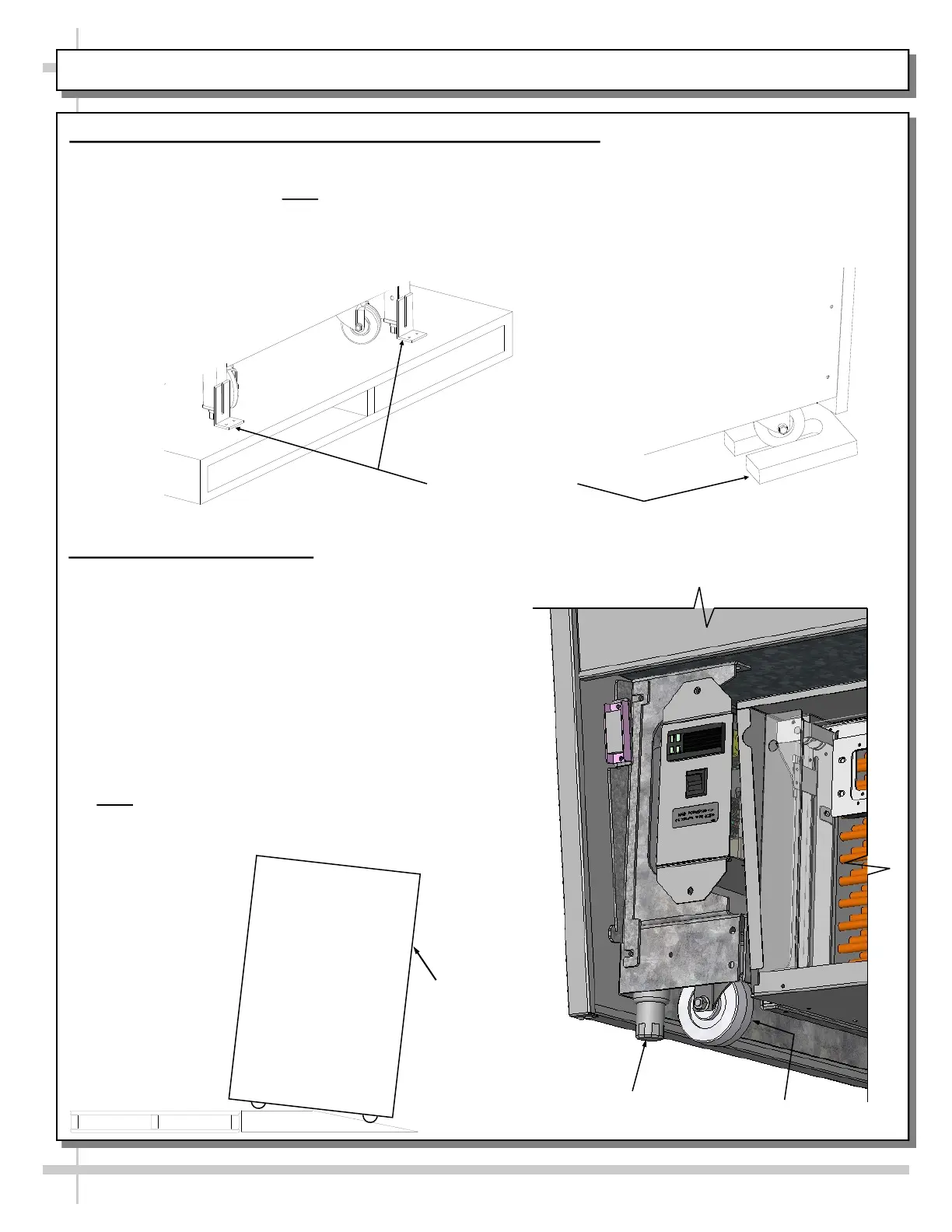

 See illustrations below. Note: Shipping Brackets will vary in size, shape, material and location

depending upon case type and model.

2. Removing Case From Skid

A. Place ramp up against skid (to allow case to

smoothly slide off from skid).

B. Maintain support of case at all times or center of

gravity may cause case to fall.

C. Slide unit to rear of skid. Slide down ramp and

off from skid.

D. After case is in proper position, lower levelers (by

rotating counter-clockwise) so casters are raised

off floor until case is securely in place.

E. To relocate case, raise levelers (by rotating

clockwise) so casters are lowered onto floor and

unit can be easily moved.

 Note: Illustration below reflects general outline of

sample case and may not reflect your particular

model or options).

Support

case

while

sliding

down

ramp.

Ramp

Caster (Typ.)

Leveler (Typ.)
