Je bekijkt pagina 15 van 49
28 29
Rev. 22.02.2022
Rev. 22.02.2022
1
2
3
4
11
12
13
6
5
7
8
9
10
1. Vertical angle
2. Left horizontal angle
3. Function menu
4. Function button
5. Distance measurement mode / downward
6. Angle measurement mode / upward
7. Keyboard
8. Coordinate measurement mode / leftward
9. Menu button / rightward
10. POWER button
11. Enter
12. ESC button
13. Asterisk button
3.1.3. FUNCTION KEYS
Button Name Function
Asterisk button
Enter the asterisk
mode. In the
Manual, the button
will be marked
as "*".
Angle
measurement
Enter the angle
measurement mode.
Distance
measurement
Enter the distance
measurement mode.
Coordinate
measurement
Enter the coordinate
measurement mode.
Menu
Enter the menu
mode.
ESC
Cancel operation
or return to the
previous page /
item.
POWER button Power on / o.
Function keys
They correspond
to the information
displayed.
Numeric
keyboard
Enter numbers /
characters.
Scroll buttons
Move the cursor left,
right, up, and down.
In the Manual, the
keys are marked as
„◄/►/▲/▼”.
Enter
Conrm data
selection or go to
the next page /
item..
3.1.4. THE ICONS
Icon Meaning Operation
Dual sensor
Single sensor
Sensor o
Bluetooth o
system settings
Bluetooth
OFF
Bluetooth on
system settings
Bluetooth
ON
Mode
w/o reector
Mode with
reector
IR sheet
3. USE GUIDELINES
The device is used to perform precise measurement of
distances and horizontal and vertical angles in geodesy and
construction.
The user is liable for any damage resulting from
improper use of the device.

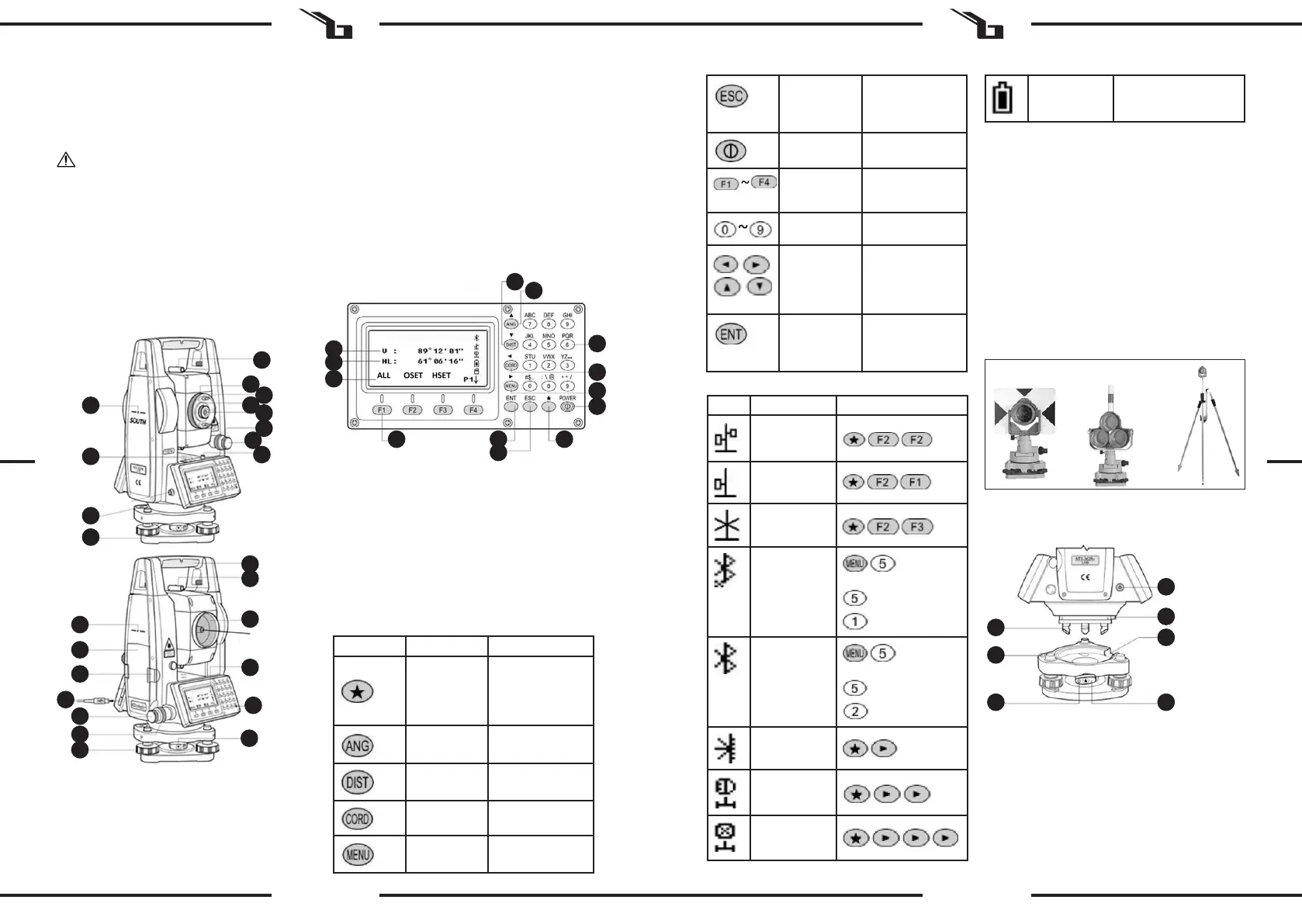

3.1. DEVICE DESCRIPTION
3.1.1. THE DEVICE
o) The use of an umbrella is recommended to avoid
damage when working in direct sunlight or in the
rain.
p) Switch o the device before removing the battery.
q) Do not point the laser beam directly at the eyes, it
may damage eyesight.
1. Handle
2. Battery
3. Battery lock
4. Lens
5. Optical focusing ring
6. Spotting eyepiece
7. Eyepiece focusing ring
14
10
13
20
23
11
6
7
8
9
5
12
1
9
4
18
17
21
10
2
3
16
15
22
19
ATTENTION! Despite the safe design of the device
and its protective features, and despite the use of
additional elements protecting the operator, there is
still a slight risk of accident or injury when using the
device. Stay alert and use common sense when using
the device.
8. Eyepiece holder
9. Collimator
10. Telescope’s axis of rotation mark
11. Vertical wheel clamp
12. Vertical wheel ne motion screw
13. Tubular level
14. Tubular level screw
15. Horizontal wheel clamp
16. Horizontal wheel ne motion screw
17. Power button
18. Display
19. USB socket
20. Box level
21. Clamping lever
22. Set (levelling) screw
23. Base
3.1.2. THE KEYBOARD
Battery voltage real-time battery voltage
3.2. PREPARING FOR USE
APPLIANCE LOCATION
The temperature of environment must not be higher than
40°C and the relative humidity should be less than 85%.
Ensure good ventilation in the room in which the device is
being used. There should be at least 10 cm distance between
each side of the device and the wall or other objects. The
device should always be used when positioned on an even,
stable, clean, reproof and dry surface, and be out of the
reach of children and persons with limited mental and
sensory functions.
3.2.1. ASSEMBLING THE DEVICE
1. THE REFLECTOR
When measuring the distance, place the reector prism at
the target. The reector systems come with a single / triple
prism that can be mounted with the tribrach onto a tripod
or mounted onto a prism pole. Reector systems can be
congured by the user.
2. THE TRIBRACH
Use a screwdriver to loosen the screw which holds the
tribrach. Turn the screw counterclockwise. The equipment
can be removed now.
1. Anchor jaw
2. Box level
3. Fixing screw
4. RS - 232 port
5. Pin
6. Slot
7. Locking knob
3.2.2. DEVICE USE
Hold down the power key for 1 second to turn the device
on. The start page is the angle measurement mode (a). Press
ESC to go to system information (b). Press MENU F4 to see
information about the device (c). Hold down the power key
for 4 seconds to turn the device o.
EN EN
1
2
3 7
6
5
4
