Operation Guide 24
Stanford Research Systems DC215 Voltage/Current Source
ON/OFF Control
When ON/OFF Control is selected, the output can be turned on or off based on rising or
falling edges:
▪ The output is turned on for a falling edge of ON/OFF Control
▪ The output is turned off for a rising edge of ON/OFF Control
Note that ON/OFF control is only one of several “Output ON” functions, all of which are
simultaneously active.
Source
The Source can be set to voltage or current output, over a number of different ranges
and output values.
V/I
▪ [V|I] toggles between voltage and current output.
▪ <VORI> sets the source type to voltage (0) or current (1).
The Source type is indicated by the display units LEDs. When the source type is
changed, a “V Out” or “I Out” message is briefly displayed and the DC215 is set to the
last range used for that Source type.
Changing the source type leaves the output in the OFF state. This includes all behavior
listed under the ON|OFF function.
Range
▪ The Source range is changed by the RANGE [↑] and [↓] keys.
▪ <Range i> sets the range based on “i”.
The range is indicated by the decimal point location on the Source display, which is
fixed for a given output range. Changing the range moves the decimal point on the
Source display. A “range xxx” message is briefly displayed while changing ranges.
ON/OFF
Control
ON State
Out ON
Output
OFF
ON
OFF

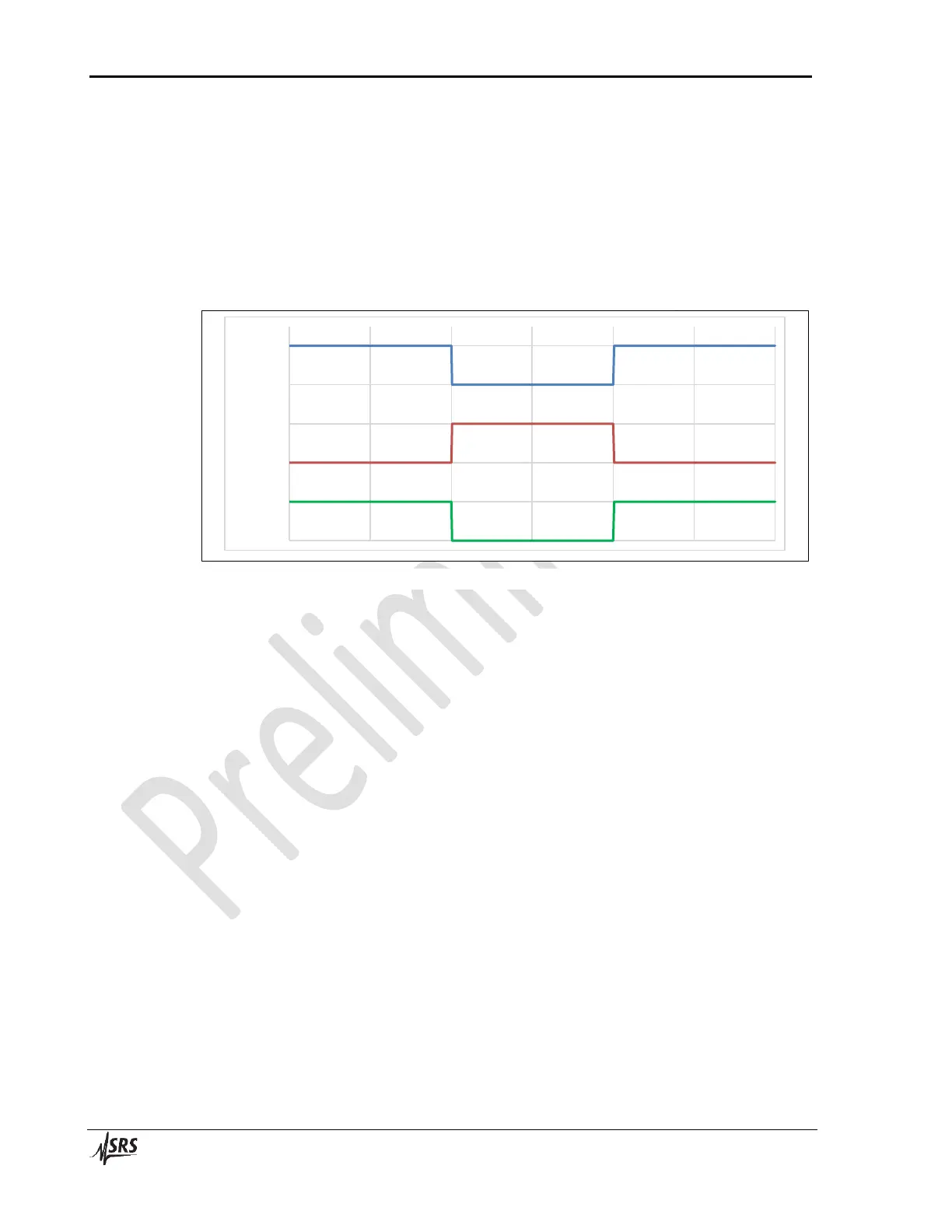

FIGURE 6: ON/OFF CONTROL
