Operation Guide 23
Stanford Research Systems DC215 Voltage/Current Source
When the output is off, Measurement Triggers are held off, and all active
measurements are cancelled. Data Logging is disabled and T
ramp
(ramp timer), T
Meas
(measurement timer) and R
delay
(ready delay timer) are reset.
The Sequencer will operate when the output is off for testing. While no signals will be
output, it will step through the sequence, displaying the output values and updating
the step trigger lines.
Output Control (Digital IO)
The Output Control (Digital IO) can be configured to either act as an output enable or
as an ON/OFF control signal. This function is selected in Digital IO (page 63).
Output Enable (OE)
When set to Output Enable (OE) mode, {Output Control} overrides [ON], <OUTP> or any
other “Output On” function. Use the following behavior for the output enable signal.
Note that setting Output Enable low, does not automatically turn the output back on;
one of the “Output On” functions must occur after OE is turned on.
Output Control low (Output Enabled)
The output can be turned on or off by any of the “Output On” functions.
Output Control high (Output Disabled)
The output is held off regardless of any “Output On” functions. If the output is on, it is
turned off and held off upon Output Control going hi. The Output Disabled bit (#3) of
OMSR/OMER is set when the output is disabled.
A “disabled” message (diSAb) appears on the front panel if Output Disable turns the
output off or holds off the output from being turned on.
Note: If Output Control is selected and not pulled low, the output will be disabled and
remain off regardless of any “Output On” events.

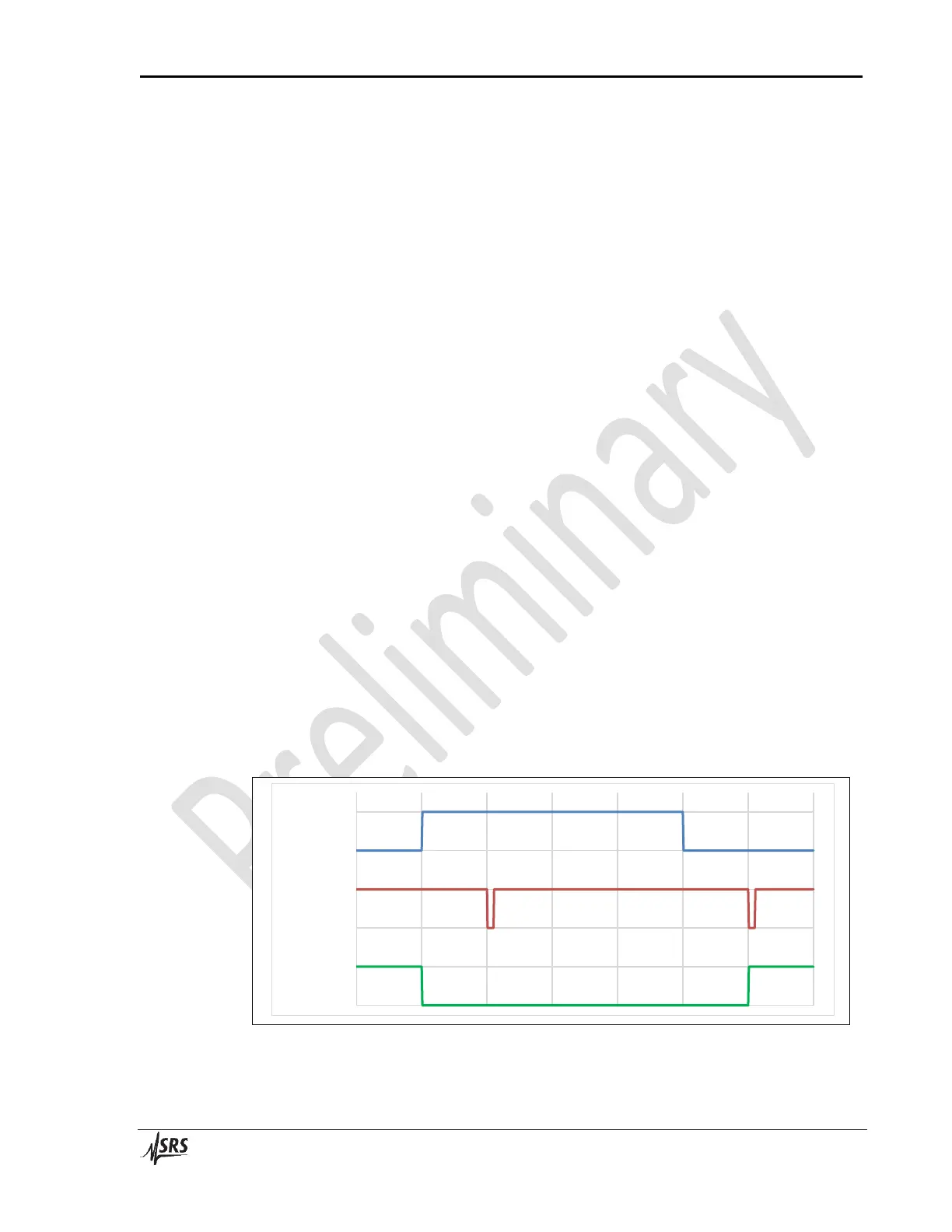

OE
ON Event
ON State
ON
OFF
ON
FIGURE 5: OUTPUT ENABLE BEHAVIOR
