Basics 16
Stanford Research Systems DC215 Voltage/Current Source
Rear Panel

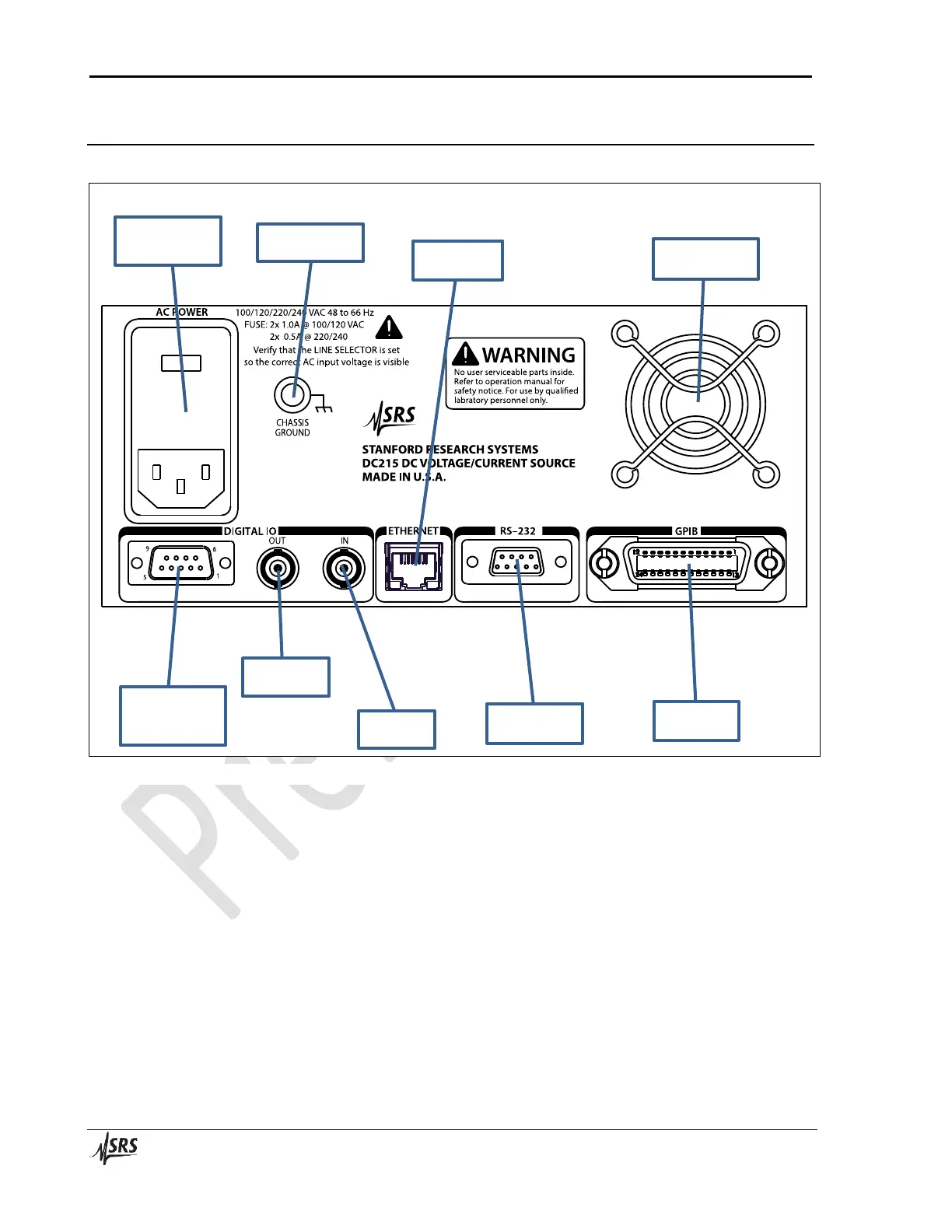

FIGURE XX: REAR PANEL
FIGURE 2: REAR PANEL
Power Entry Module
The power entry module provides an IEC 60320-1 AC input connection, fusing and line
voltage selection. See Fuse Installation and Line Select (page 171) for details on setting
the line voltage selection and fuses.
Ground Lug
This is connected to chassis ground and can be used to minimize ground potentials
between instruments.
Fan Port
A ventilation fan is used to cool the DC215. Be certain to not block the fan port and
ensure no foreign debris gets caught in the fan. See Environment (page 109) for
installation requirements.
Power Entry
Module
Ground Lug
Fan Port
Digital IO
DB-9
BNC Out
BNC In
Ethernet
GPIB
RS-232
FIGURE 2: REAR PANEL
