24
Note: To save images to a local PC, please enable the local smart snapshot storage first (SystemLocal Recording). To save images to
an SD card, please install an SD card first.
Detection Target:
Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line.
Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the
pre-defined alarm line.
Non-motor Vehicle: Select it and then alarms will be triggered if a vehicle with two wheels (eg. a motorcycle or bicycle) crosses the
pre-defined alarm line.
Note: When the installation method is set to “Ceiling”, only “Human” can be selected.
All of the three types of objects can be selected simultaneously. Please select the detection objects as needed. If no object/target is
selected, alarms will not be triggered even if line crossing detection is enabled.
Push target trajectory with a persistent connection: Push target trajectory (moving coordinate) to API test tool with a persistent
connection. If enabled, the system will push the target trajectory upon detecting a target. If disabled, the system will push the target
trajectory only when triggering line crossing alarm.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection alarm. Please refer to motion detection section for
details.
4. Click “Save” button to save the settings.

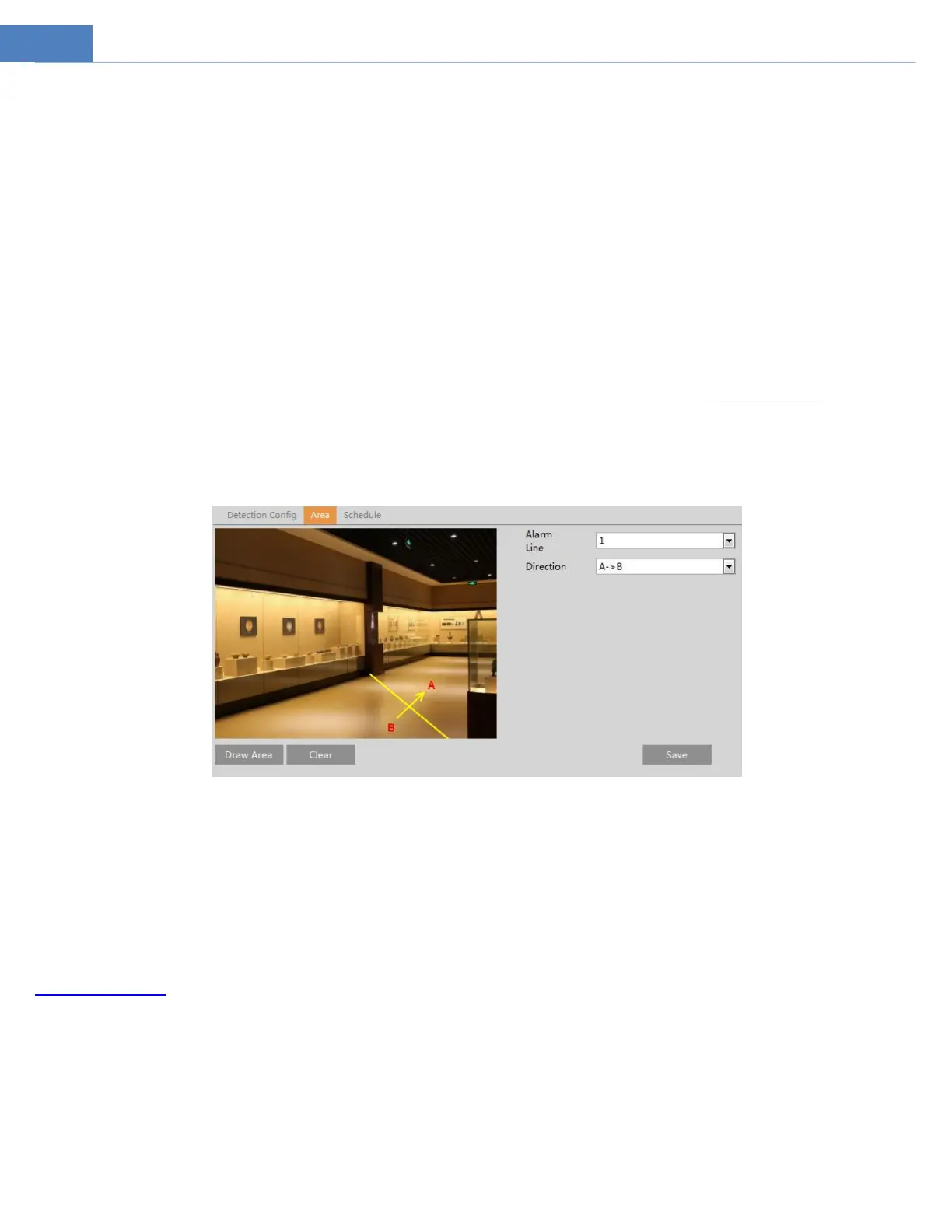

5. Set the area and sensitivity of the line crossing alarm. Click the “Area” tab to go to the interface as shown below.
Note: The image display may be different due to different installation modes. The following picture is for reference only.
Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously.
Direction：A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would
trigger the alarm.
A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.
A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.
A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.
Click the “Draw Area” button and then drag the mouse to draw a line in the image. Click the “Stop Draw” button to stop drawing.
Click the “Clear” button to delete the lines. Click the “Save” button to save the settings.
6. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See
Schedule Recording).
In the live view interface, click “Panoramic view” (desktop or wall mounting mode) or “Fisheye” (ceiling mounting mode) to view line
crossing detection.
※Configuration of camera and surrounding area
1. Auto-focusing function should not be enabled for line crossing detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness
of the scenes shouldn’t be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45°.
