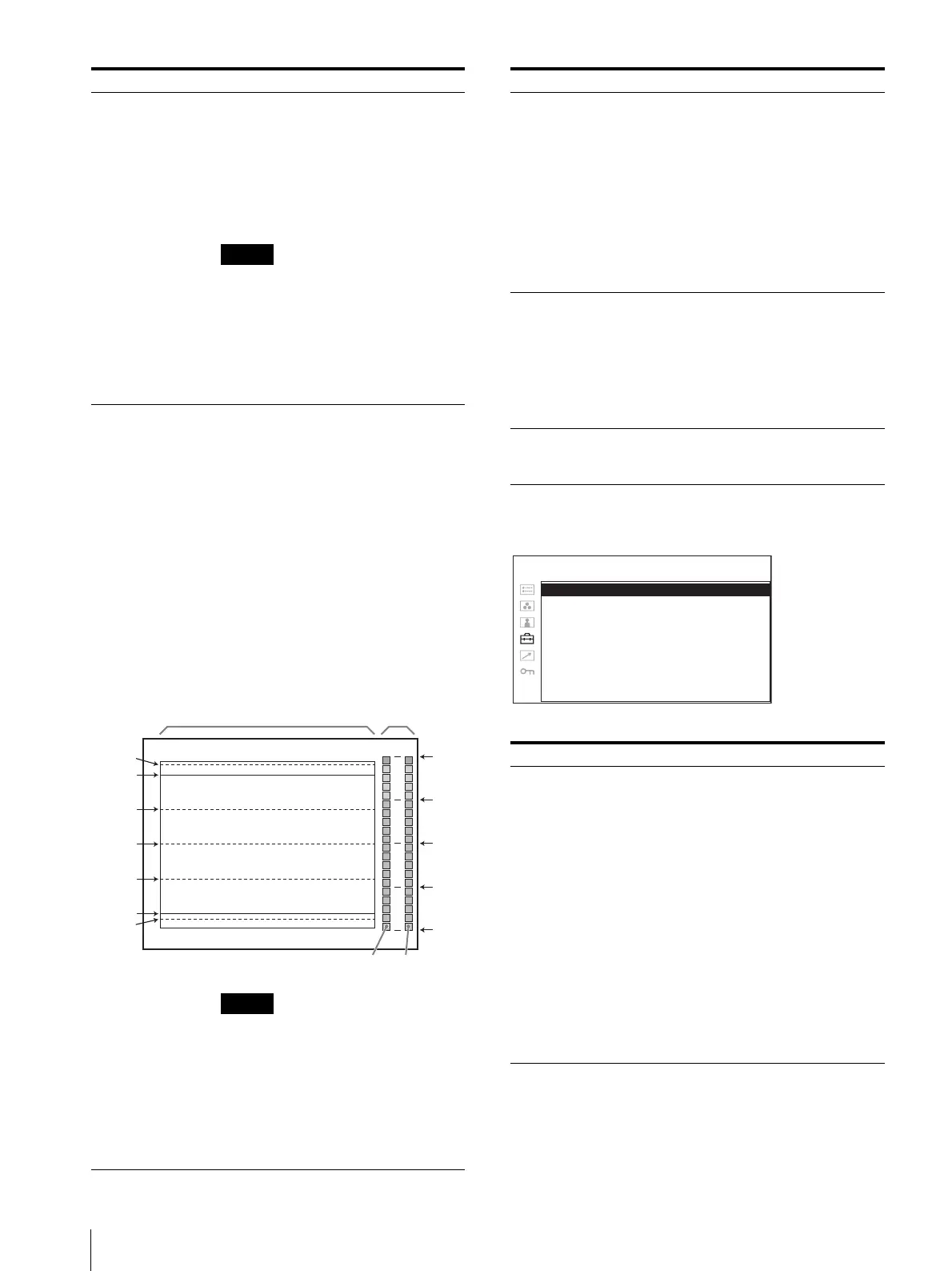

Adjustment Using the Menus
82
FUNCTION BUTTON SETTING
About the function assigned to the
function button
For details about supported 3D input signals for each
function, see “Input Signals and Adjustable/Setting
MULTI DISPLAY • PIP/POP: The sub display is put in
the main display for the 16:9 display
and by the side of the main display
for the 4:3 display.
• SIDE BY SIDE: The main display is
put in the left side of the display and
the sub display is put in the right side
of the display.
Notes
• When the HD15 or DVI signal is
input, SIDE BY SIDE cannot be
selected on the menu.
• When MULTI DISPLAY is set to
SIDE BY SIDE, CTI (page 78) is not
available.
• Only 2D display mode is available
when SIDE BY SIDE is selected.
SUB INPUT
SELECT
Sets the input signal of the sub display.
You can select from among
COMPOSITE, Y/C, RGB,
COMPONENT, OPTION A-1, OPTION
A-2, OPTION B-1, OPTION B-2,
VIDEO WAVE and OFF.
When you select VIDEO WAVE, the
waveform and audio level are displayed.
(Audio level is displayed only when you
connect the BKM-220D/243HS/244CC/
250TG.)
The indications of the waveform and
audio level signify as illustrated below,
although the percentage of the waveform,
audio level L/R CH, units and values of
the scale do not appear on the display.
VIDEO WAVE is not available for
LMD-4251TD.
Notes
• The multi display with COMPOSITE
and Y/C, RGB and COMPONENT,
OPTION A-1 and OPTION A-2, and
OPTION B-1 and OPTION B-2 is not
displayed.
• When SUB INPUT SELECT is set to
OFF, the sub display is not displayed
even if you set MULTI DISPLAY
ENABLE to ON.
Submenu Setting
-4%
0%
25%
50%
75%
100%
0
-10
-20
-30
-60
109%
R CHL CH
Audio levelWaveform
(dB)
POSITION Sets the position of the sub display. You
can select from among 1 to 3 for the 4:3
display and 1 to 4 for the 16:9 display.
4:3 display
• 1: Top
• 2: Center
• 3: Bottom
16:9 display
• 1: Bottom left
• 2: Bottom right
• 3: Top right
• 4: Top left
FRAME Sets the position of the main display
when MULTI DISPLAY is set to POP
and the sub display is put on the 4:3
display.
• RIGHT: The main display is put by
the right side of the sub display.
• LEFT: The main display is put by the
left side of the sub display.
SUB PICTURE
SIZE
Sets the size of the sub picture. You can
select from among 1 to 3. When the
setting is high, the size becomes large.
Submenu Setting
F1 BUTTON to F4
BUTTON
Assigns the function to the function
buttons of the front panel and turns the
function on or off.
You can assign the function from among
SCAN, ASPECT, EXT SYNC, I/P
MODE, MULTI DISPLAY, CLOSED
CAPTION, MONO, H/V DELAY,
MARKER, APA, BLUE ONLY, 2D/3D
SELECT, CHECKERBOARD, L/R
SWITCH, HOROPTER CHECK,
DISPARITY SIM., GRID, DISPARITY
RULER, AUTO L/R SW, DIFFERENCE
and VIRTUAL SUB. MAR.
Factory setting
• F1 button: EXT SYNC
• F2 button: SCAN
• F3 button: ASPECT
• F4 button: H/V DELAY
Submenu Setting
F1 BUTTON: xxxx
F2 BUTTON: xxxx
F3 BUTTON: xxxx
F4 BUTTON: xxxx
USER CONFIG –
FUNCTION BUTTON SETTING
