Connecting Between the Cable Adaptor and the Camera
Connecting Between the Cable Adaptor and the
Camera
After mounting the cable adaptor in the camera, make
connections between the cable adaptor and the camera, as
shown below.
These connections are not required if you will not use
intercom, microphone and viewfinder signals on the
separated CCD block. To check the viewfinder screen on
the camera side, connect the viewfinder to the VF
connector on the camera as for normal use.
1
Connect the camera lens cable of the cable adaptor to
the LENS connector on the camera and secure the
cable with the cable clamp.
2
Connect the VF connector on the camera and the VF
connector on the cable adaptor, using the supplied VF
relay cable (supplied with the HKC-T1500/T3300).
3
Connect the INTERCOM 1 connector on the rear of
the camera and the INTERCOM connector on the
cable adaptor, using the supplied INTERCOM relay
cable (supplied with the HKC-T1500/T3300).
4
Connect the AUDIO IN 1 connector on the rear of the
camera and the MIC connector on the cable adaptor
using the supplied MIC relay cable (supplied with the
HKC-T1500/T3300) and set the input select switch for
the AUDIO IN 1 connector to MIC.
M
IC
O
P
T H
E
A
D
IN
T
E
R
C
O
M
CABLE
12
.5
2
5
5
0
m
VF
IN
T
E
R
C
O
M
1
O
F
F
+
4
8
V
M
I
C
F
R
O
N
T
M
IC
DC OUT
AUD
IO IN
CH1
CH2
TEST
OUT
SDI2
DC IN 10.5-17V
P
R
O
M
P
T
E
R
R
E
T
IN
G
E
N
L
O
C
K
I
N
L
I
N
E
O
F
F
+
4
8
V
M
I
C
A
E
S
/
E
B
U
L
I
N
E
IN
T
E
R
C
O
M
2
EARPHONE
REMOTE
RET CTRL
CRANE
TRACKER
4
4
3
3
1
3
4
2

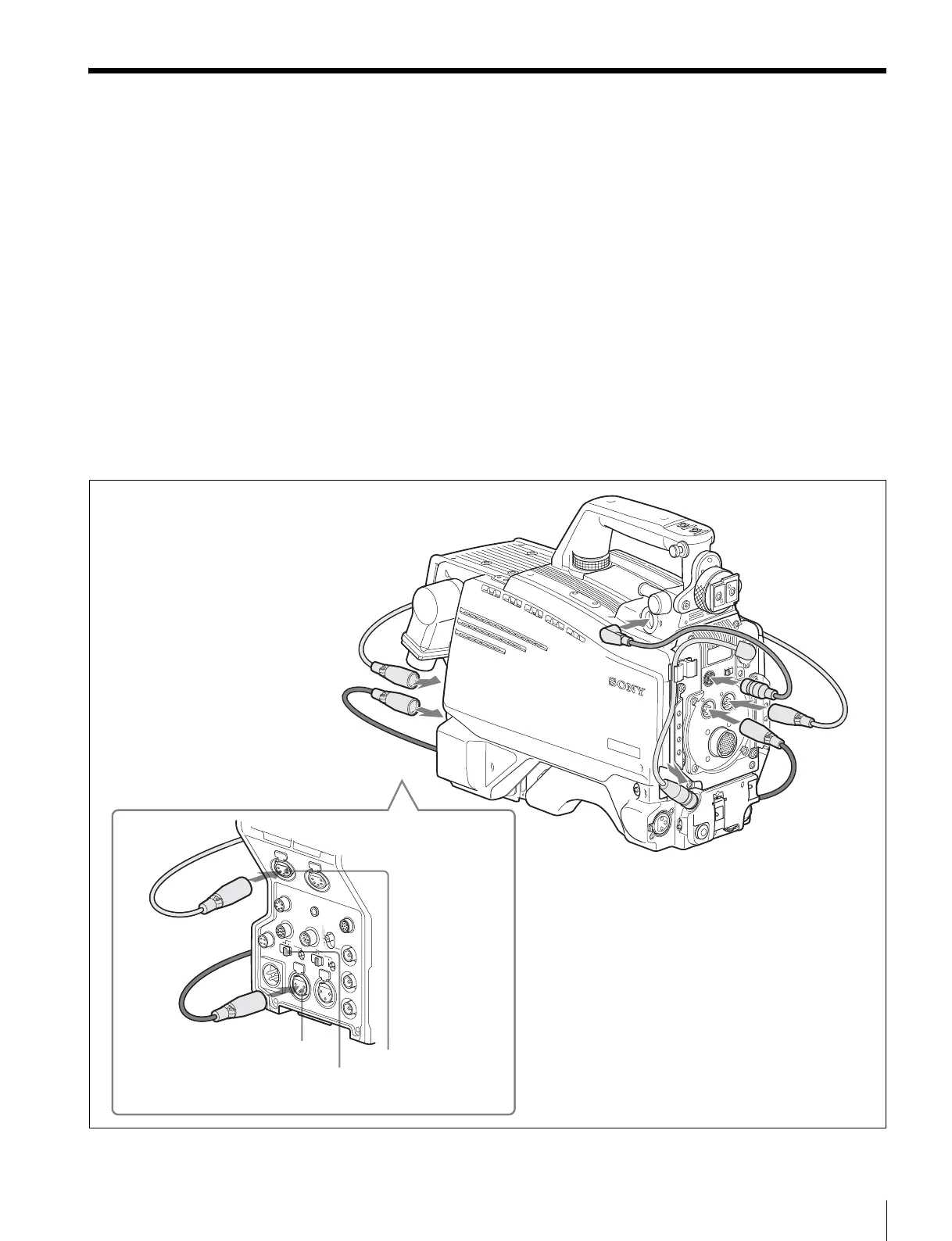

AUDIO IN 1 connector
Rear of the camera
INTERCOM 1 connector
Input select switch: MIC
(HKC-T1500 shown
in the figure)
