32

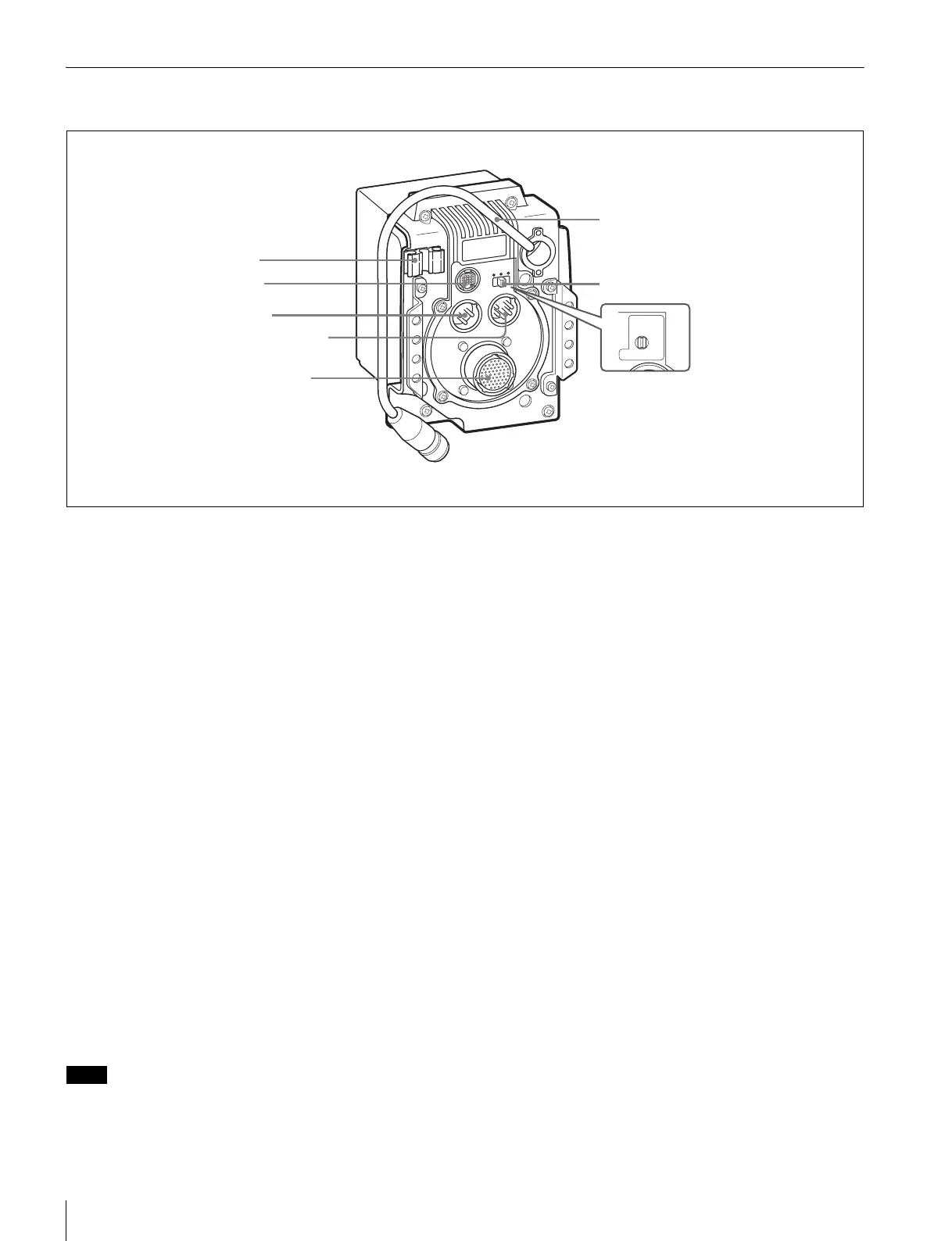

Locations and Functions of Parts
Cable Adaptor
a Cable clamp
To secure the camera lens cable connected to the LENS
connector of the camera.
b VF (viewfinder) connector (20-pin)
For connection to the VF connector on the camera, using
the supplied VF relay cable.
c MIC (microphone) connector (XLR 3-pin)
For connection to the AUDIO IN 1 connector on the
camera, using the supplied MIC relay cable.
d INTERCOM connector (XLR 5-pin)
For connection to the INTERCOM 1 connector on the
camera, using the supplied INTERCOM relay cable.
e OPT HEAD (optical head) connector (55-pin)
For connection to the CAM BODY connector on the CCD
block adaptor, using the supplied special HDCM cable.
f Camera lens cable
Connect to the LENS connector on the camera.
g CABLE (cable length) switch
Set the switch on the HKC-T1500 according to the length
of the special HDCM cable used to connect between the
CCD block mounted in the CCD block adaptor and the
cable adaptor.
The switch on the HKC-T3300 can be set to “12.5 m” only.
MIC
OPT HEAD
INTERCOM
CABLE
1
2
.5
2
5
5
0
m
VF
INTERCOM
CABLE
12.5m
c MIC connector
a Cable clamp
b VF connector
d INTERCOM connector
e OPT HEAD connector
f Camera lens cable
g CABLE switch
HKC-T3300
Note
