Locations and Functions of Parts
j MIC (microphone) connector (XLR 3-pin)
Used to connect the cable of a microphone.
k Cable clamp base
Attach the supplied cable clamp here.
For details, see “To use the supplied cable clamp” on page
38.
l Microphone holder base
Attach the CAC-12 Microphone Holder (optional) here.
For the attaching procedure, see “Attaching a
Microphone” on page 35.
m VF (viewfinder) connector (20-pin)
Used to connect the cable of a viewfinder.
n Lens cable clamp
To secure the lens cable.
o Tripod mounts (on the bottom)
One is for a 1/4-inch screw thread, and the other is for 3/8-
inch.
For details on mounting on the tripod, see “Mounting on a
Tripod” on page 36.
p INCOM (intercom) button
Functions the same as that on the camera.
q RET 1 (return video 1) button
Functions the same as that on the camera.
r Viewfinder shoe and fixing ring
Used to attach a viewfinder.
For the attaching procedure, see “Attaching a Viewfinder”
on page 34.
MIC
VF
R
E
T
1
I
N
C
O
M

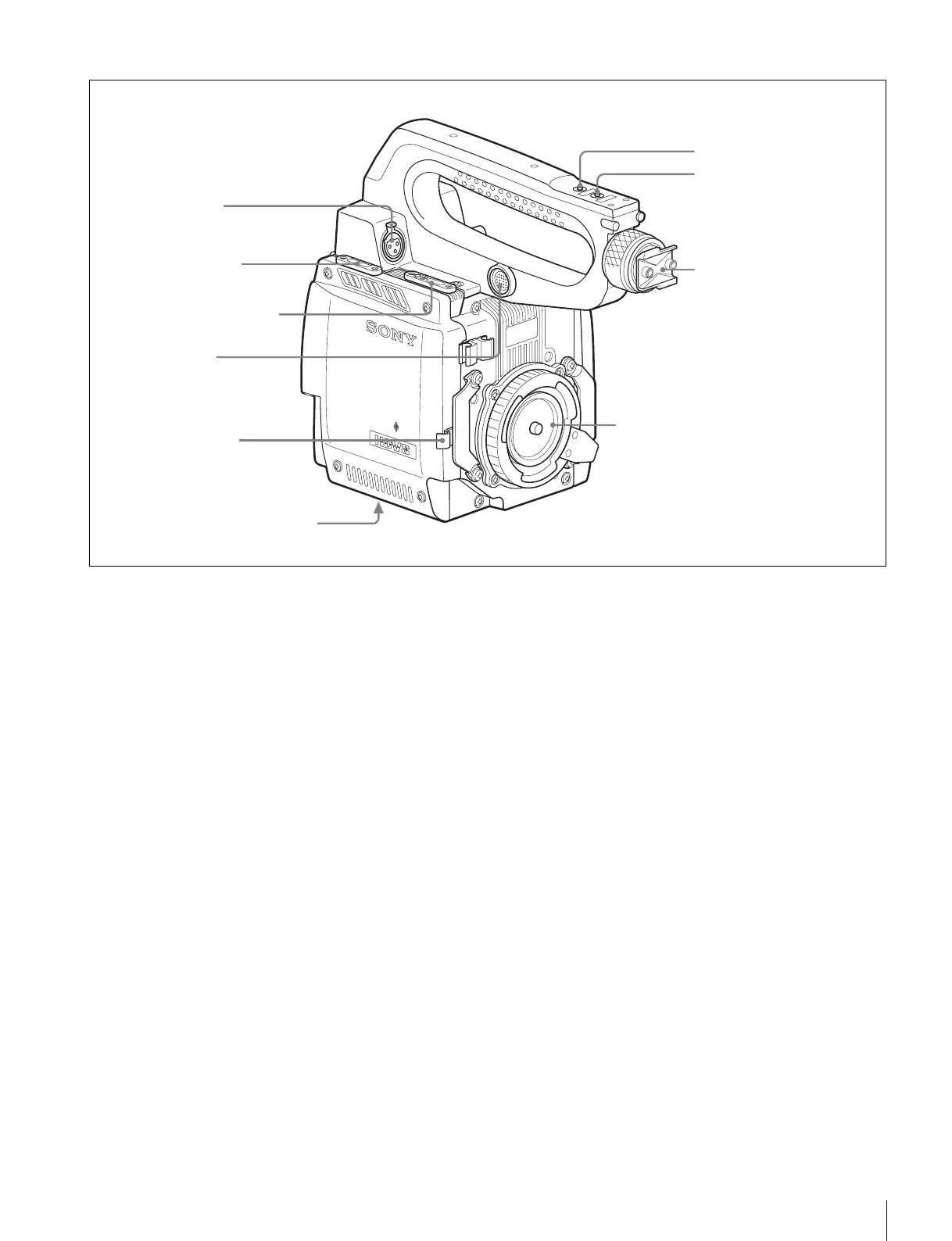

l Microphone holder base
j MIC connector
k Cable clamp base
m VF connector
p INCOM button
Camera’s CCD block
(The cable adaptor is mounted here in
place at the factory.)
q RET 1 button
r Viewfinder shoe
and fixing ring
n Lens cable clamp
o Tripod mounts (on the bottom)
