21
Installation
24V
24V
GND
12V
24V
24V
Terminal
12 V Wire 1
GND Wire 2
6. Connect the wires to the control unit as specied in the connection
diagram; see page 60.

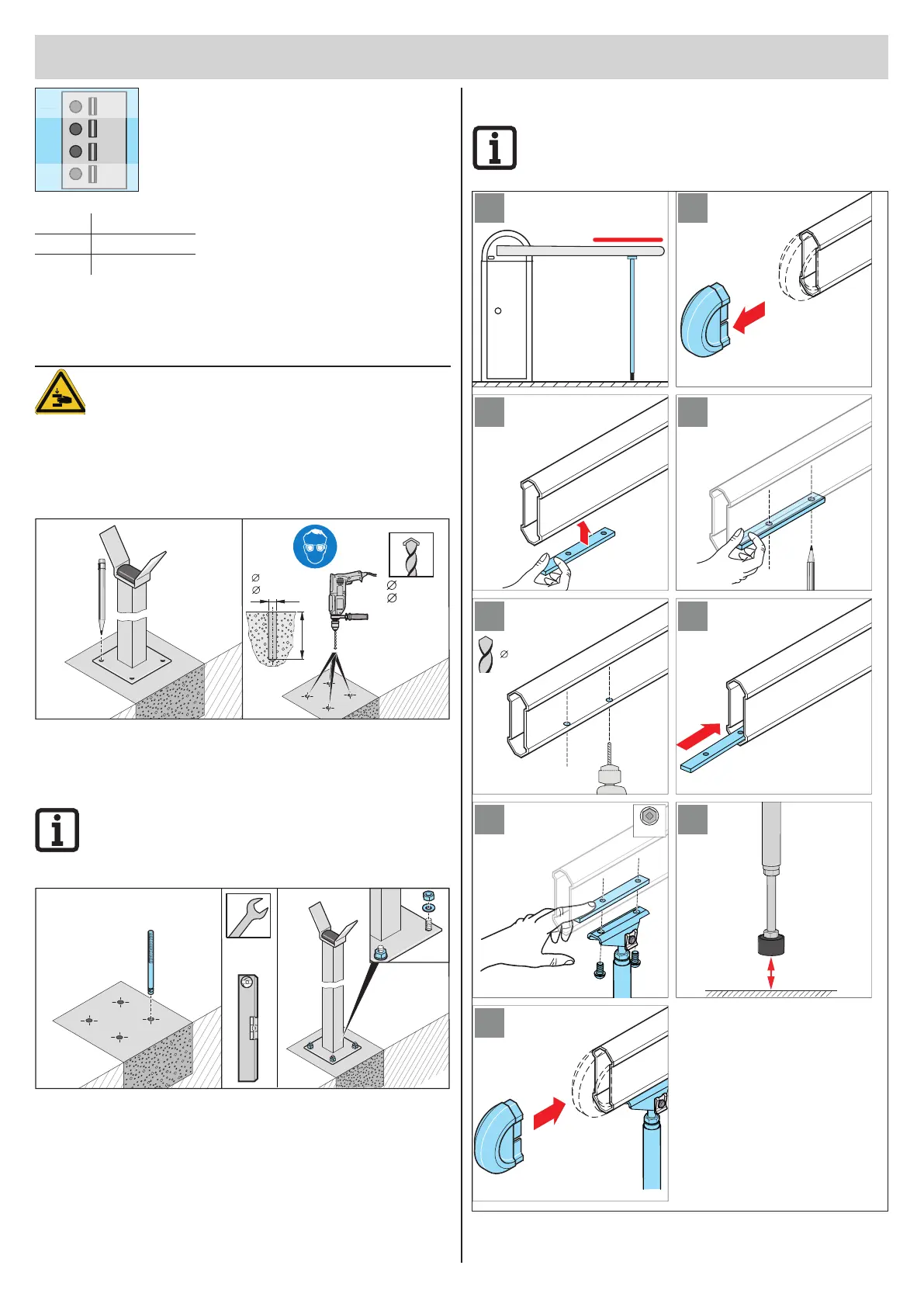

Installing the support post
RISK OF CRUSH INJURIES TO HANDS!
Danger of crushing between the fork of the support post
and the boom!
¾ Keep out of the range of movement of the boom!
¾ Never place your hand on the fork of the support post!
1. To calculate the required length of the support post, see "Installation
drawing" on page 15.
8 mm
10 mm
≤ 65 mm
10 mm
8 mm
4x
2. Put the support post in place and mark the position for the 4 holes.
3. Drill four holes Ø 8 or Ø 10 mm and at least 65 mm deep.
4. Blow out holes with compressed air.
INFORMATION:
Only use permissible fastening materials.
For recommended heavy-duty anchors, see "Installation
drawing" on page 15
4x
13 mm
17 mm
4x
5. Insert the heavy-duty anchors into the holes.
6. Put the support post in place. Put 4 washers in place and tighten
4 nuts. With the spirit level, check the horizontal alignment of the
support post and correct it if necessary.
Installing the oating support
INFORMATION!
The oating support is only certied for booms H10 and
D07!
6,5 mm
?
ca. 2 cm
1
2
3 4
5 6
8
9
7
4 mm
