22
Installation

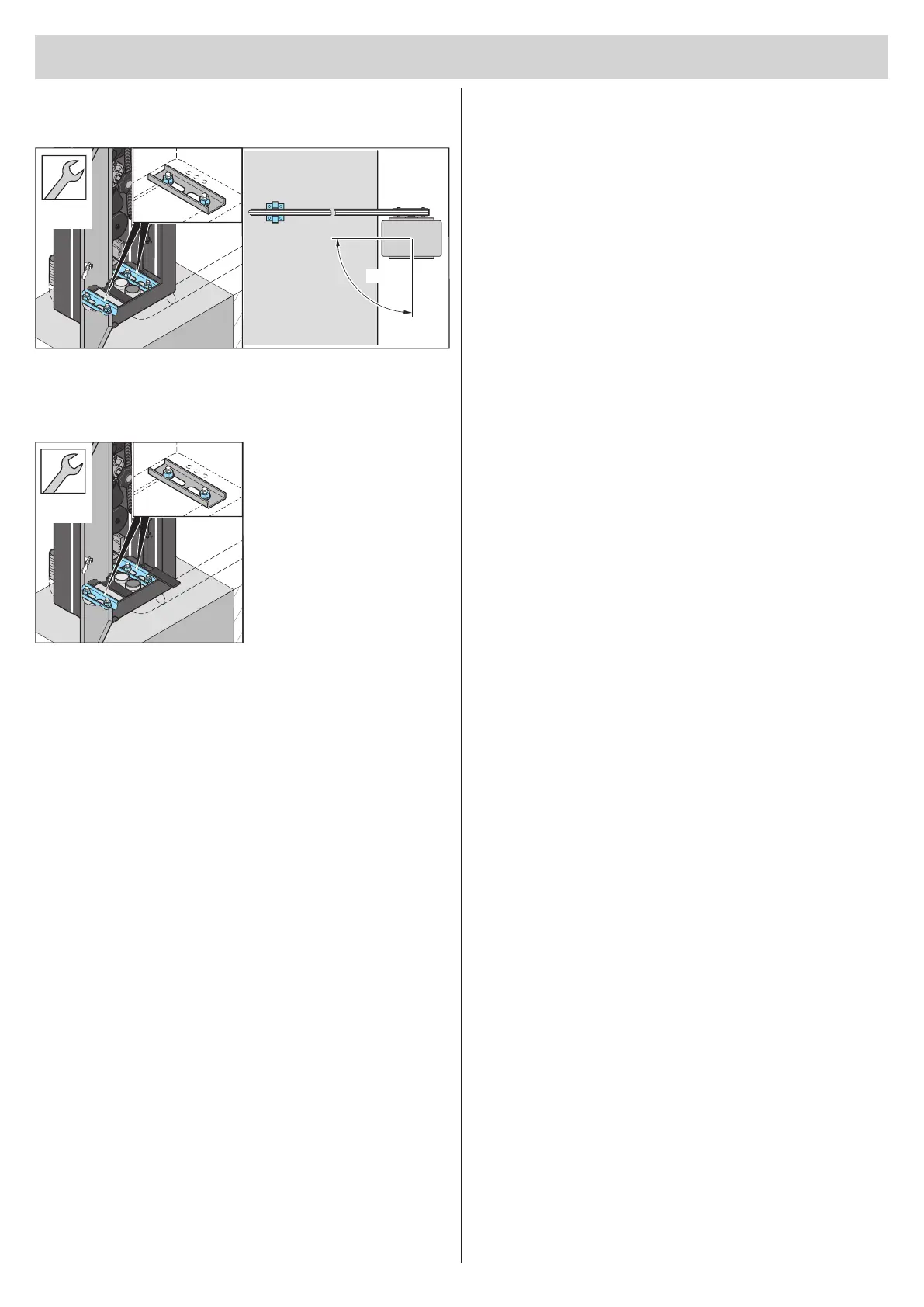

Aligning the position of the barrier
1. Open the emergency release (see page 30) and close the barrier.
90°
17 mm
19 mm
2. Open the barrier housing and loosen the 4 nuts so that the barrier can
be aligned.
3. Align the barrier so that it is parallel to the trac lane and the boom is
lying on the support post.
17 mm
19 mm
4. Tighten the 4 nuts as specied by the heavy-duty anchor manufacturer.
5. To calculate the position of the oating support, see "Installation
drawing" on page 15.
6. Remove the cap from the boom.
7. Hold the plate for screw connection of the oating support against
the boom from below, in the position previously dened
8. Use the plate as a template to mark the position of the bore holes.
9. Drill holes in the marked positions.
10. Push the plate for screw connection of the oating support into the
boom until the bore holes in the plate are aligned with the holes drilled
in Step 5.
11. Bolt the oating support to the boom.
12. Close the barrier and check the distance of the oating support
to the ground. When closed, the distance must be approx. 2 cm.
If necessary, correct the lower end positions of the barrier;
see "Connection options" on page 35.
13. Replace the cap on the boom.
