20

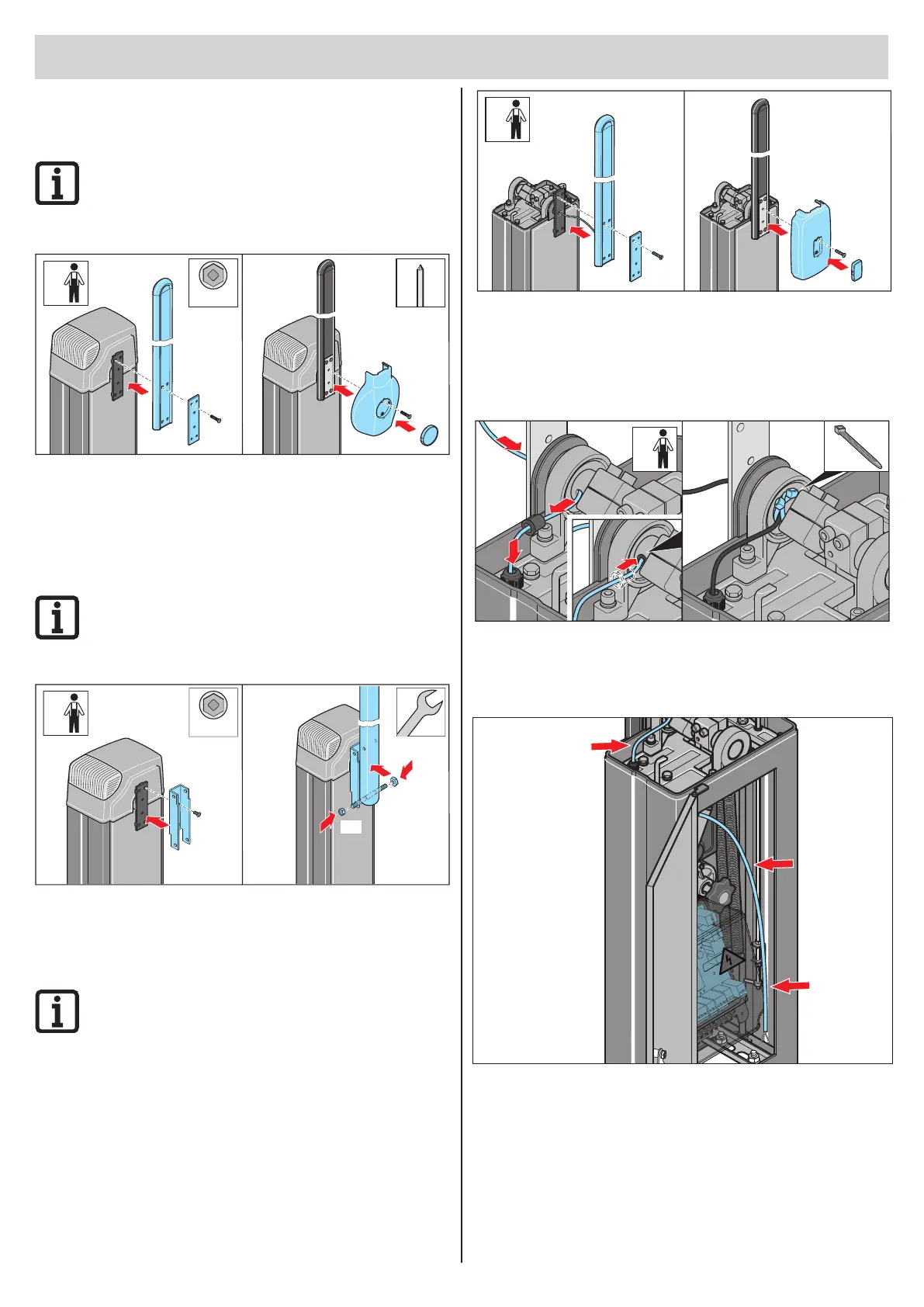

Installation
Installation of the boom
Flat boom H10
INFORMATION:
When using a oating support, install it before installing
the boom; see "Installing the oating support" on page 21
1. The boom is attached in the vertical opening position.
4x
2x
2x
max.
10 Nm
8 mm
2. Place the boom on the boom holder, t a shim plate, and fasten with
4 screws.
3. Install the cover with 2 screws and put the faceplate in place.
Round boom D07
INFORMATION:
When using a oating support, install it before installing
the boom; see "Installing the oating support" on page 21
1. The boom is attached in the vertical opening position.
2x
4x
2x
6 mm
17 mm
2. Fit the boom holder and fasten with 4 screws.
3. Bolt the boom and boom holder together with 2 threaded bolts.
LED boom H14
INFORMATION:
A oating support cannot be used with an LED boom!
A support post must be used for a boom length between
3 and 5 m
1. The boom is attached in the vertical opening position.
2x
4x
2x
max.
10 Nm
2. Install the boom.
⇒ One person positions the boom and holds it in place
⇒ The second person runs the cable through the opening and screws
on the boom and the shim plate as shown in the drawing
3. Fit the plastic cover.
2x
2x
4. Install the cable as shown in the drawing and fasten to the shaft with
2 crosswise positioned cable binders.
⇒ This prevents the cable from being damaged over time by the
movements of the boom
5. Route cables into the boom housing through the base plate cable
gland.
