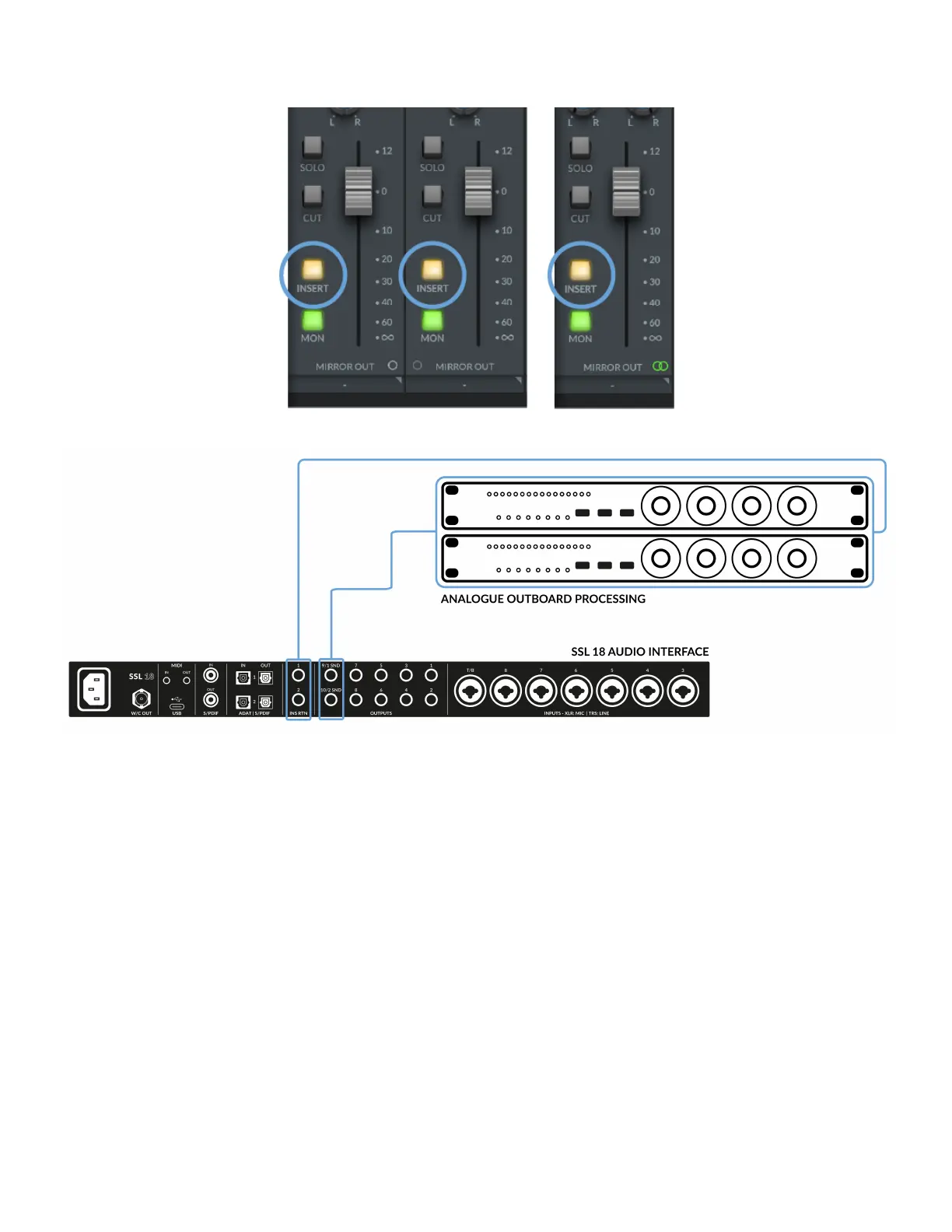

The diagram above shows the routing connections for the INSERTS on the back of the Interface.
8. 10 x BALANCED OUTPUTS 1/4" TRS Jack Output Sockets
Outputs 1 & 2 are primarily to be used for your main monitors and the physical volume is controlled by the Monitor Knob on the front of
the Interface. Outputs 3 & 4 can be set up as a secondary ALTpair of monitors (switchable to be controlled by the Monitor Knob when
the ALT button is engaged).
Output Pairs 1&2 and 3&4 can be switched between +24 dBu and +9 dBu via SSL 360°.
Outputs 3-10 are fixed at professional +24 dBu output operating levels.
All Outputs (including headphone outputs) are also DC-coupled and able to send +/-5v signal to allow CV control to Semi & Modular
Synths, Eurorack and CV-enabled outboard FX. Please Note: More information is available in the CV Control via Ableton® Live CV Tools
section in this User Guide.
A few things to be aware of when using the DC-coupled outputs:
When using output 1-2 for CV output, remember the Monitor Control Knob is still affecting the signal. Some experimentation on finding the
best level for your connected CV controlled synth/FX unit may be required.
Meters in the 360° Mixer are DC-coupled hence you can still expect them to work and show a DC signal.
