4
Reconnect cables
1 Identify the two black ground cables: B from the coil
cable, and C from the trolling motor power supply.
2 Place the ring connectors of the two ground cables onto
the threaded port (A) closest to the ribbon cable.
3 Install a 0.25-28 x 3/8 button head screw (supplied)
through both ring connectors. Use a 5/32 in Allen key to
tighten the screw and ring connectors onto the mount
controller board at A. Tighten to torque 2.03 Nm (18
in-lb).
4 Identify the red, positive power cable coming from the
coil cable (D). Route it under the ground and positive
cables from the trolling motor power supply (C and F).
5 Place its ring connector onto the threaded port (E) at the
rear of the mount. Install a 0.25-28 x 3/8 button head
screw (supplied) through the ring connector and use a
5/32 in Allen key to tighten the screw. Tighten to torque
2.03 Nm (18 in-lb).
6 Identify the red, positive power cable, coming from the
trolling motor power supply (F).
7 Place its ring connector onto the threaded port (G) at
the front starboard side of the mount controller board.
Install a 0.25-28 x 3/8 button head screw (supplied)
through the ring connector and use a 5/32 in Allen key to
tighten the screw. Tighten to torque 2.03 Nm (18 in-lb).
8 After securing the 3 screws at A, E, and G, apply
dielectric grease over their heads to prevent corrosion.

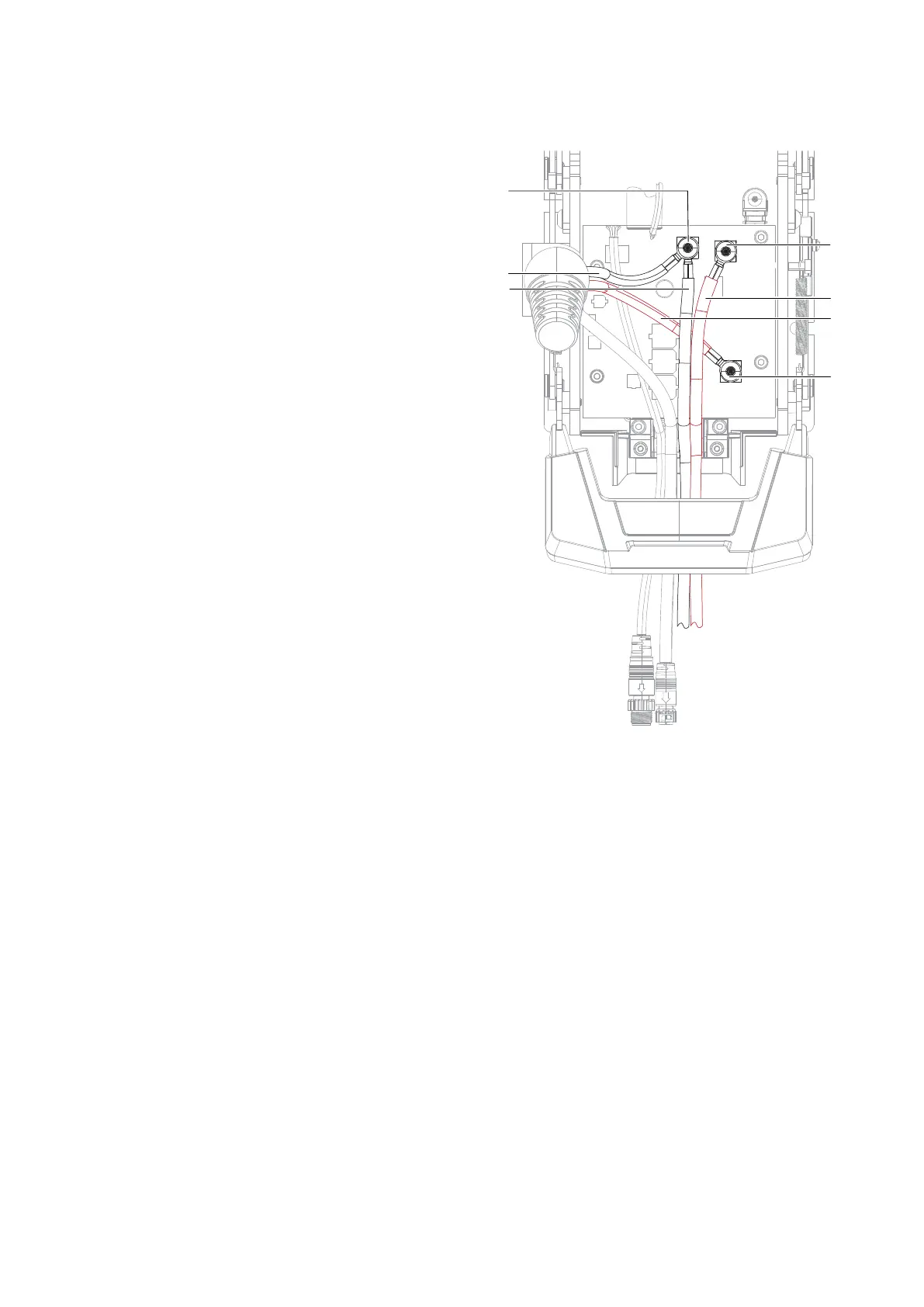

¼ Note: In the diagram below, some cables have been
removed for clarity.
¼ Note: The screws used to secure the ring connectors
in positions A, E, and G have a yellow thread-locking
compound applied to them.
A
G
C
F
B
E
D
A Attachment point for both ground cables
B Ground cable from coil cable
C Ground cable from trolling motor power supply
D Positive cable from coil cable
E Attachment point for positive cable from coil cable
F Positive cable from trolling motor power supply
G Attachment point for positive cable from trolling
motor power supply
