Fit isolation sleeves

The isolation sleeves prevent the metal transducer stem and anti-rotation stud from contacting the hull,

which could result in galvanic corrosion. The sleeves are also needed to ensure a secure t.

¼ Note: Always install an Active Imaging HD (Thru-Hull) transducer with isolation sleeves tted on the transducer

stem and anti-rotation stud, even if the boat’s hull is not metal.

1 Carry the isolation sleeves, the upper part of the fairing block, sealant, and other ttings to the inside of

the boat.

2 Find the transducer cable inside the hull, and thread the large isolation sleeve onto the transducer cable.

3 Place a small amount of sealant in each hole, and coat the outsides of the isolation sleeves with sealant

in a layer approximately 2 mm (

⁄ in) thick.

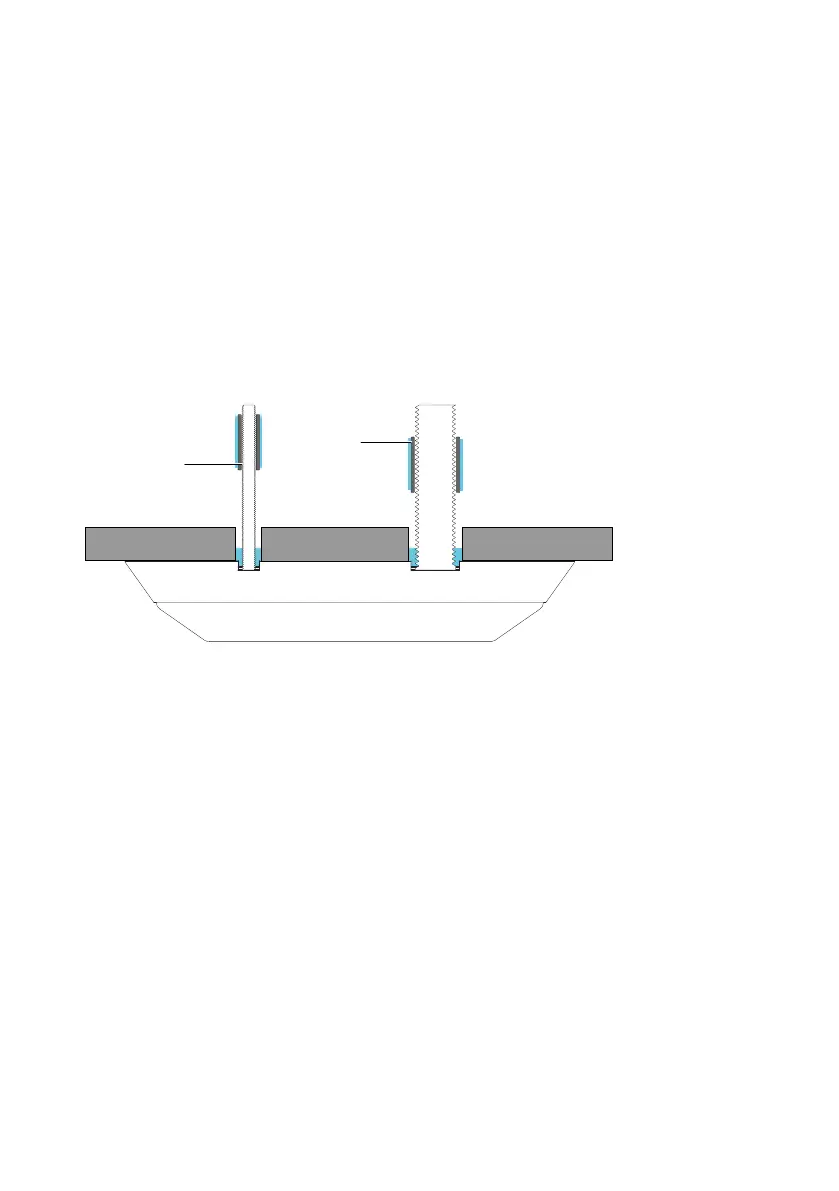

4 Slide the large isolation sleeve (A) over the transducer stem and down as far as it will go, so its bottom

rim is in contact with the lip at the base of the fairing block.

5 Slide the small isolation sleeve (B) over the anti-rotation stud and down as far as it will go, so its bottom

rim is in contact with the lip at the base of the fairing block.
