12
transducer on the starboard side. If the propeller is turning counter-clockwise, mount the transducer on the
port side.
If the hull has a steep deadrise, consider mounting dual transducers.
A distance of 152–305 mm (6–12 in) between the transducer and the keel is recommended, to prevent a
narrow valley between the fairing block and the keel that could cause a turbulent ow of water.

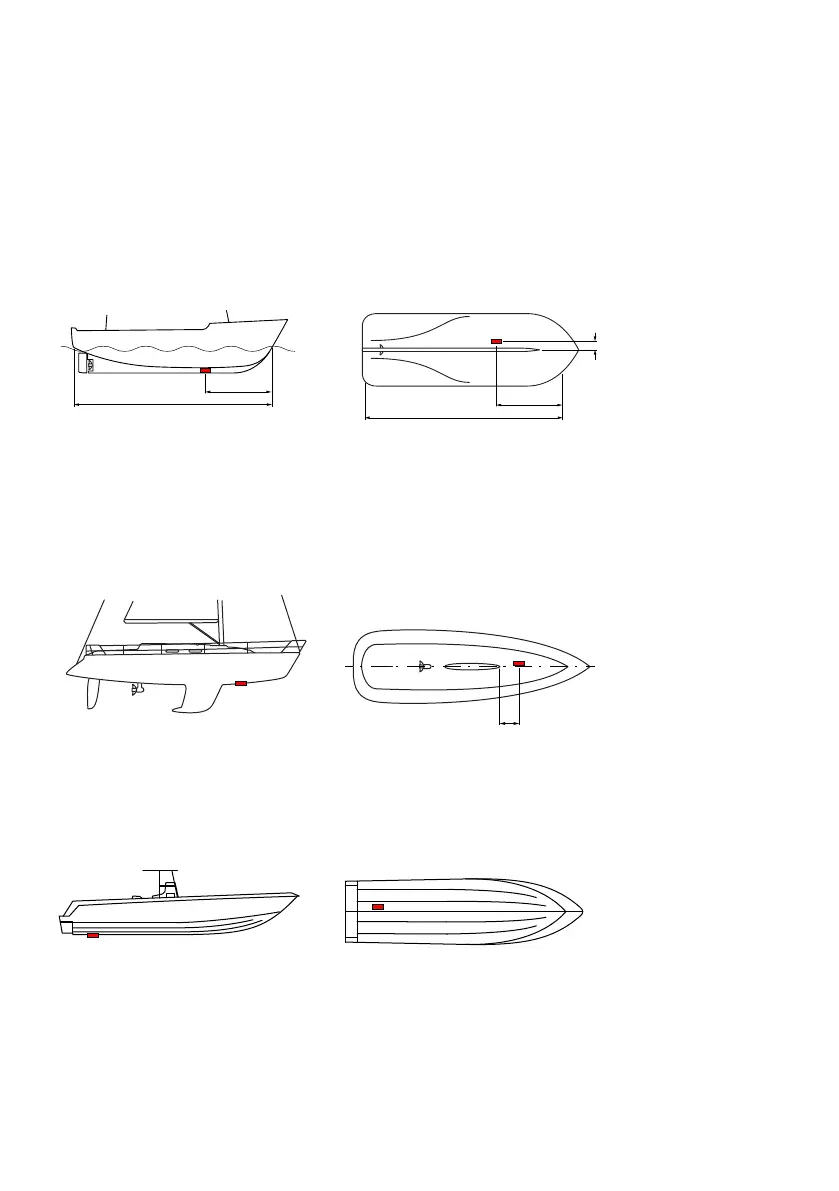

Displacement hull
In the diagrams below, L is the loaded waterline length.
Install the transducer about
1/3 L back from the bow, and 150–300 mm (6–12 in) starboard of the centerline
(for a clockwise-turning propeller).
L
L/3
L
L/3
150 – 300 mm
(6 – 12")
¼ Note: If the keel blocks the transducer’s side beam, install a dual transducer system.
Fin keel sailboat
Install the transducer 300–600 mm (12–24 in) in front of the keel, at the point of minimum deadrise angle,
and close to the centerline.
300 – 600 mm
(12 – 24")
Planing hull (outboard, stern drive)
Install the transducer aft, between the centerline and the rst set of lifting strakes.
