-5-

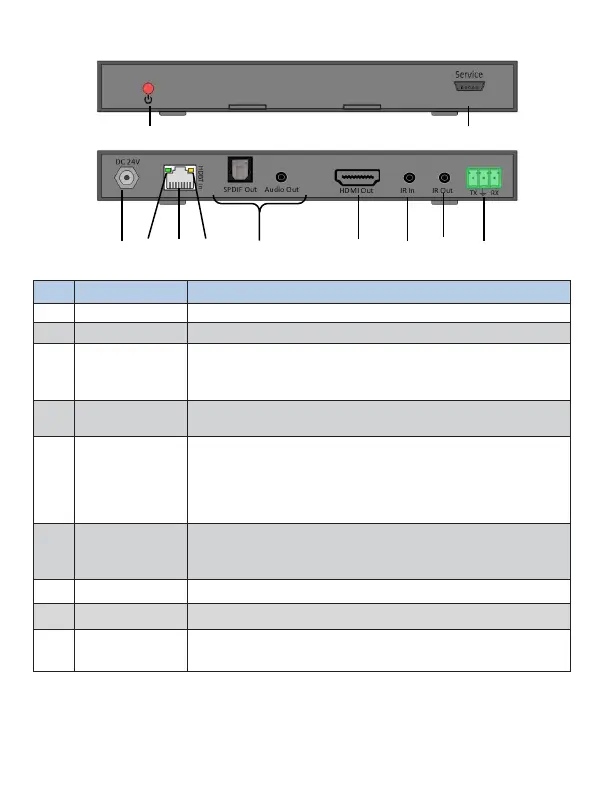

5.2 HDBaseT Receiver (Sold separately)
❶ ❷
❸❺ ❹❻ ❼ ❽ ❾ ❿ ⓫
No.
Name
Function Description
1
Power Indicator
When the receiver is powered, this will illuminate
2
SERVICE port
Used for firmware update.
3
DC 24V
Plug DC 24V/1A power supply into the unit and connect
the adapter to an AC outlet (Note: The HDBaseT receiver is
powered by the transmitter via a CAT cable.)
4
HDBT IN
Connect to the HDBT OUTPUT port on the transmitter
with a CAT cable.
5
Connection
Signal Indicator
lamp (Green)
▪ Illuminated: Transmitter and Receiver are in good
connection status.
▪ Flashing: Transmitter and Receiver are in poor
connection status.
▪ Dark: Transmitter and Receiver are not connected.
6
Data Signal
Indicator lamp
(Orange)
▪ Illuminating: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
7
AUDIO OUT
S/PDIF [optical] and 3.5mm Mini
8
HDMI Out
For connection to display via HDMI cable
9 IR INPUT
IR Input port for connection to the IR Receiver. IR receiver
accepts IR from remote.
