-6-

10

IR OUT

Connect to the IR blaster cable, the IR signal is from IR

IN port of the transmitter.

11

RS-232

3-pin Phoenix connector for RS-232 command

transmission. The RS-232 command will pass-through

from transmitter to receiver or from receiver to

transmitter.

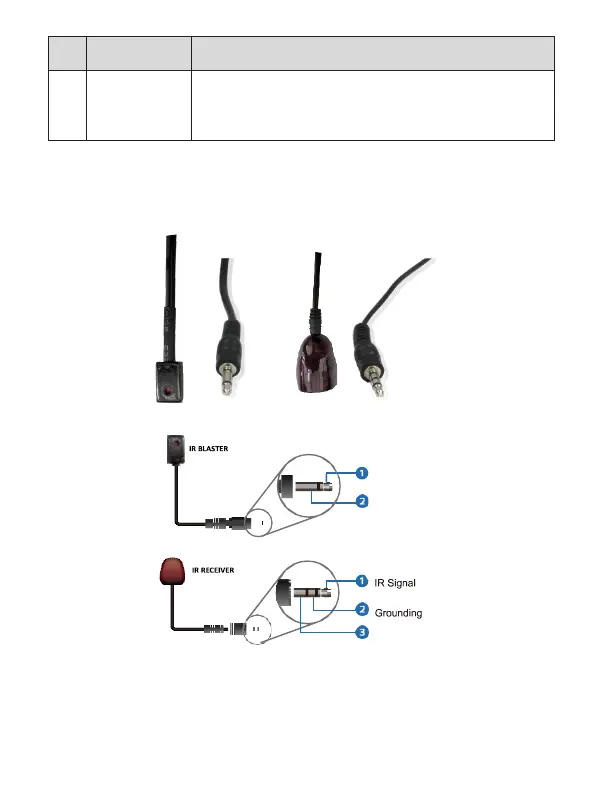

5.3 IR Pin Definition

IR BLASTER

IR RECEIVER

+

-

Power 12V

Note: When the angle between the IR receiver and the remote control is ± 45 °, the

transmission distance is 0-5 meters; when the angle between the IR receiver and the

remote control is ± 90 °, the transmission distance is 0-8 meters.
