require 252 cm² at high level and 504 cm²

at low level.

Installed in a compartment or enclosure

High level (within 15% of the room height

from ceiling) - 5 cm²/KW of net heat input

Low level (low as possible within 1 metre

from floor natural gas, 250 mm LPG) – 10

cm²/KW of net heat input.

A single generator (63KW net input) would

require 630 cm² at high level and 1260 cm²

at low level.

2.2.2 Outdoors

MURELLE EQUIPE 140 BOX ErP heat mod-

ules can also be installed outdoors with

the specific exhaust for single module

code 8089530.

2.3 SYSTEM REQUIREMENTS

The heating system should be flushed

prior to the connection of the heating

modules. The system should be treated in

accordance with BS 7593. Sime Ltd recom-

mend only the use of Fernox products for

the flushing and final treatment of the sys-

tem water. This is particularly important

in hard water areas.It is recommended

that the inhibitor concentration is checked

at installation, system modification and

at every service in accordance with the

manufacturers instructions. Test kits are

available from inhibitor stockist.

WARNING: Failure to clean the heat sys-

tem or add an adequate inhibitor invali-

dates the device’s warranty.

Gas connections must be made in accord-

ance with current standards and regula-

tions. When dimensioning gas pipes from

the meter to the module, both capacity vol-

ume (consumption) in m

/h and gas den-

sity must be taken into account.

System pipe sections must be able to

guarantee sufficient supply to cover maxi-

mum demand, limiting pressure loss

between the meter and any utility device

no greater than 1.0 mbar for second family

gas (natural gas).

A sticker inside the module includes iden-

tification and gas type data specific to the

module.

2.3.1 Condensation drain connection

The condensate drain must be connected

to the civil drain by a pipe with minimum 5

mm per meter gradient for condensation

collection.

Only stainless steel or plastic pipes are

suitable to convey condensate.

2.3.2 Filter on the

gas pipe

The gas valve on each generator is sup-

plied ex factory with an inlet filter, which,

however, is not adequate to entrap all the

impurities in the gas or in gas main pipes.

To prevent malfunctioning of the valve, or

in certain cases even to cut out the safety

device with which the valve is equipped,

install an adequate filter on the gas pipe.

2.5 FILLING THE SYSTEM

Cold system filling pressure must be 1

bar. The system must be filled slowly so

that air bubbles are released through the

specific escapes.

2.6 EXHAUST FOR OUTDOOR

INSTALLATION (fig. 5)

The exhaust terminal for single module

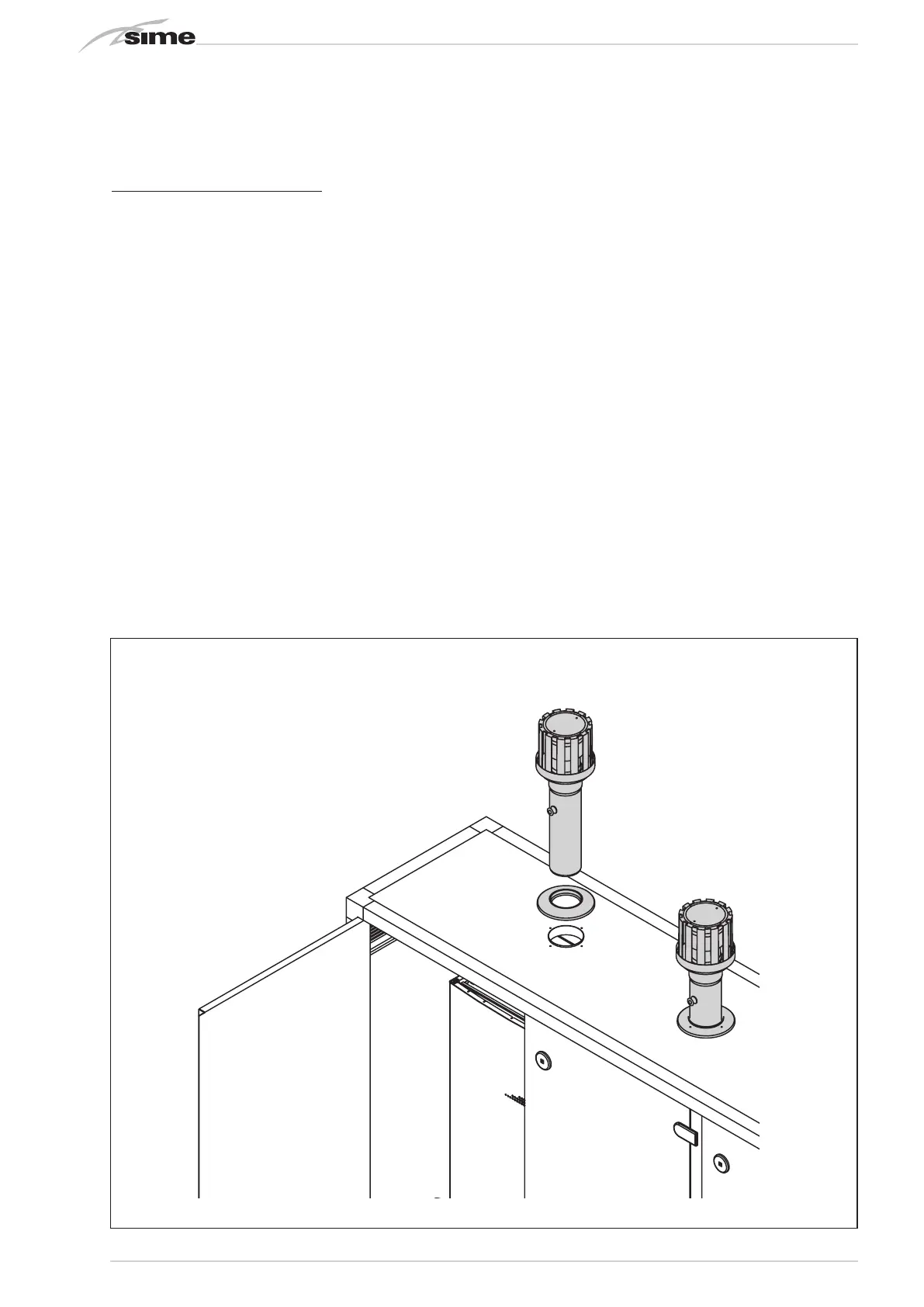

Fig. 5

STAFFA TELAIO

CALDAIA

Pmin

Pmax
