code 8089530 is required for this type

of installation. For separately supplied

accessory assembly see fig. 5.

2.7 INDOOR INSTALLATION

EXHAUST KIT (fig. 6)

Refer to fig. 6 for this type of installation.

The indicated solutions have the exhaust

manifold positioned both on the modules.

It is however possible to move the exhaust

of the left by simply rotating the manifold

180°.

NOTE: The kits are purposely treated also

to resist weathering when installed out-

doors.

2.8 TUBES CONNECTING THE

HYDRAULIC SEPARATOR KIT

(fig. 7)

The connecting pipes for the hydraulic

separator are supplied in kit 8101534.

The kit is made up of the following compo-

nents (fig. 7):

– System supply flanged section code

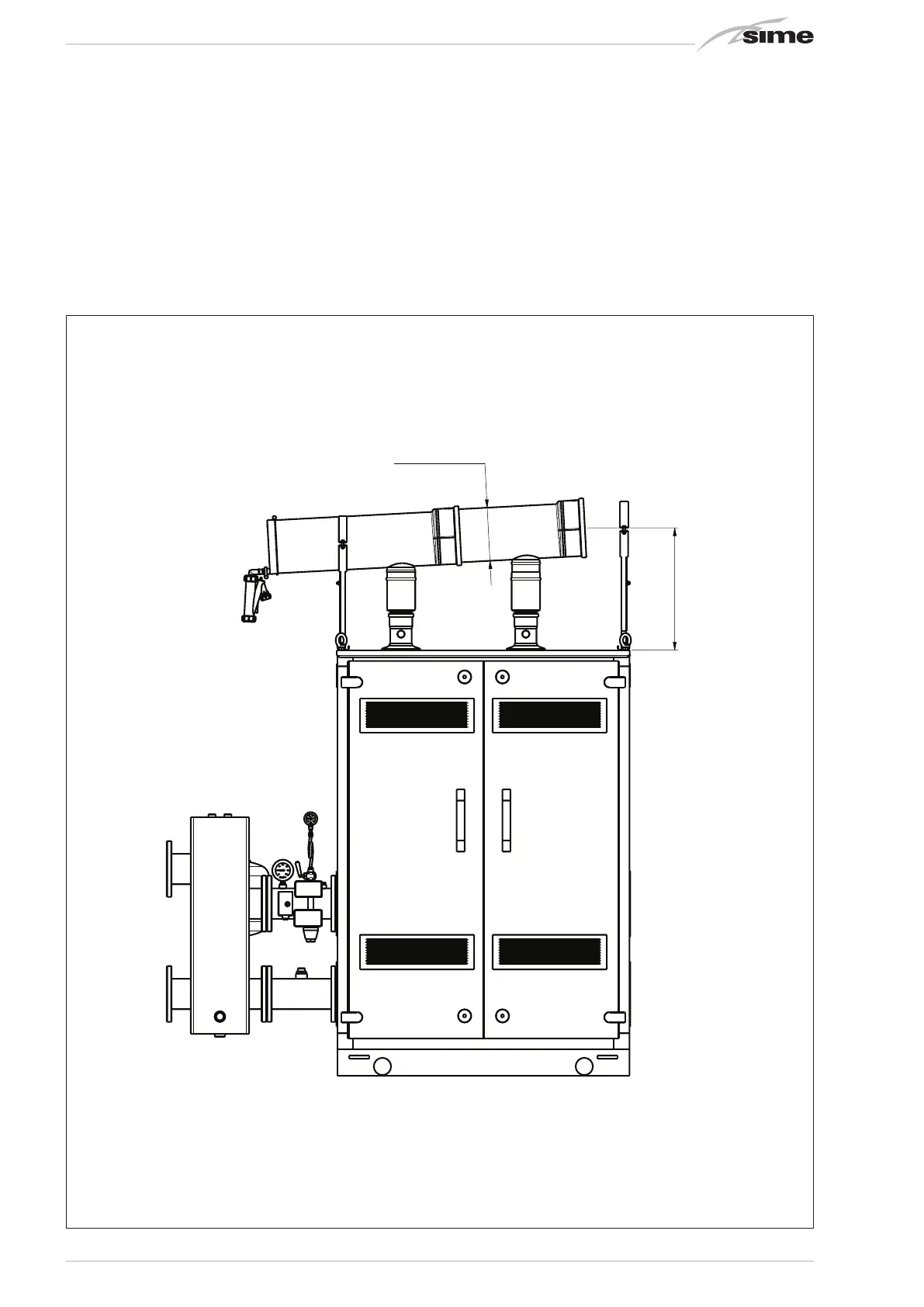

Fig. 6

390

ø 125

180 (50 BOX ErP)

200 (70 BOX ErP)

MURELLE 50 BOX ErP - 70 BOX ErP

con kit collettore fumi

cod. 8102510

MURELLE EQUIPE

100 BOX ErP - 140 BOX ErP

con kit collettore fumi

cod. 8102511

MURELLE EQUIPE 150 BOX ErP

con kit collettore fumi

cod. 8102512

ø 160

219

ø 160

254
