The unit is suitable for external installation

in a fixed location.

It must be installed by qualified engineers

in compliance with all instructions con-

tained in this manual. Furthermore, the

installation must be in accordance with

current standards and regulations.

CAUTION: Before assembling the

appliance, the installer MUST make

sure that the wall supports the weight.

2.1 SUPPLY (fig. 4)

MURELLE EQUIPE 140 BOX ErP heat mod-

ules are interconnected with flange and

gaskets. The cabinet is pre painted, zinc

coated.

They are supplied complete with flow and

return, gas and condensate manifolds,

external temperature probe kit, cascade

supply and RS-485 code 8092250 board

connection cable. Available separately:

– Connection kit for the hydraulic separa-

tor code 8101534.

– Single box (size: 630 x 640 x 1600) for

hydraulic separator, code 8101517 (fig-

ure 4)

– Hydraulic separator kit code 8101550.

– Polypropylene exhaust manifold kit for

indoor installation (purposely treated to

resist weathering when installed out-

doors) code 8102511

– Exhaust terminal code 8089530 (1 per

generator) for outdoor installations.

To electrically connect the modules and

to assemble the exhaust for indoor or out-

door installations, see points 2.6, 2.7 and

2.10 in this manual.

2.2 INSTALLATION

2.2.1 Indoors

MURELLE EQUIPE 140 BOX ErP heat

modules can be installed in boiler rooms

whose size and requirements meet cur-

rent regulations.

VENTILATION

The following is provide for your guid-

ance only, and assumes the ventilation air

is taken directly from outside. The sizes

of the vents may need to be increased in

respect of other appliances installed in the

same area, and seasonal use. Take care

that the position of low level vents would

not subject to adverse weather conditions,

ie flooding.

Ventilation requirements for Murelle HE

70 R ErP boilers and cascade systems.

BS6644 has a requirement that the tem-

peratures in a room or compartment do

not exceed certain levels:

25°C at floor level (0-100 mm)

32°C at mid level (1.5 M above the floor

level)

40°C at ceiling level (0-100 mm from ceil-

ing)

Installed as a class B appliance (open

flued).

Installed in a room

High level (within 15% of the room height

from ceiling) - 2 cm²/KW of net heat input

Low level (low as possible within 1 metre

from floor natural gas, 250 mm LPG)– 4

cm²/KW of net heat input

A single generator (63KW net input) would

2 INSTALLATION

2405

47 0

630 390

11 00

630

1730

1600

19 45

MURELLE EQUIPE 150 BOX (M)

18 0

15 5

403

64 0

63 7

34 2

44 0

81 0

41 5

260

67 5

1600

695

355

630

64 0

403

44 0

81 0

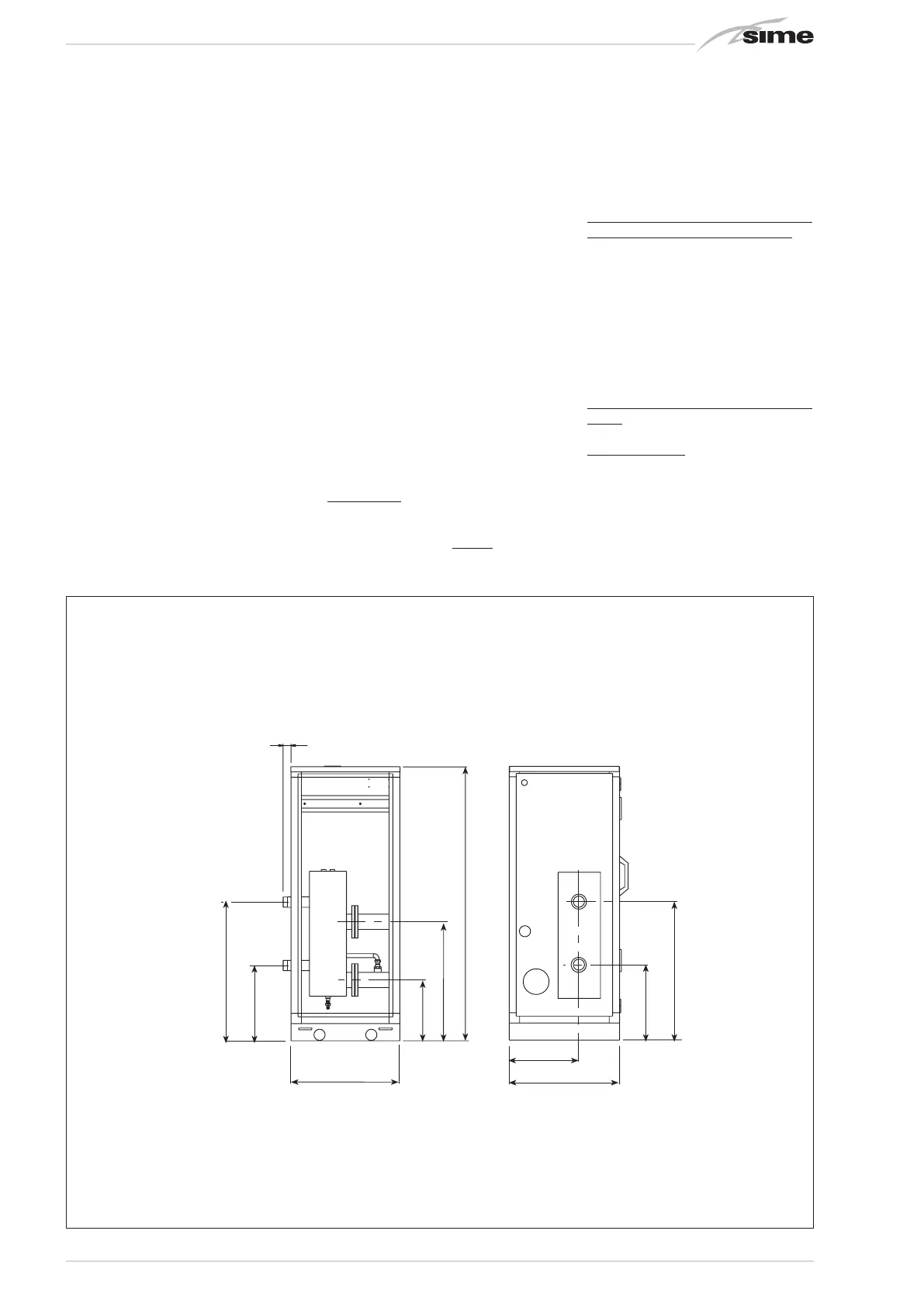

BOX CONTENITORE SINGOLO

PER SEPARATORE IDRAULICO

cod. 8101517

81 0

44 0

Fig. 4

NOTICE: The supply and return of the hydraulic compensator can be posi-

tioned on the right or left-hand side of the box by moving the connection

flange secured with six screws.

SINGLE BOX FOR

HYDRAULIC SEPARATOR AND CONNECTIONS

code 8101517
