26

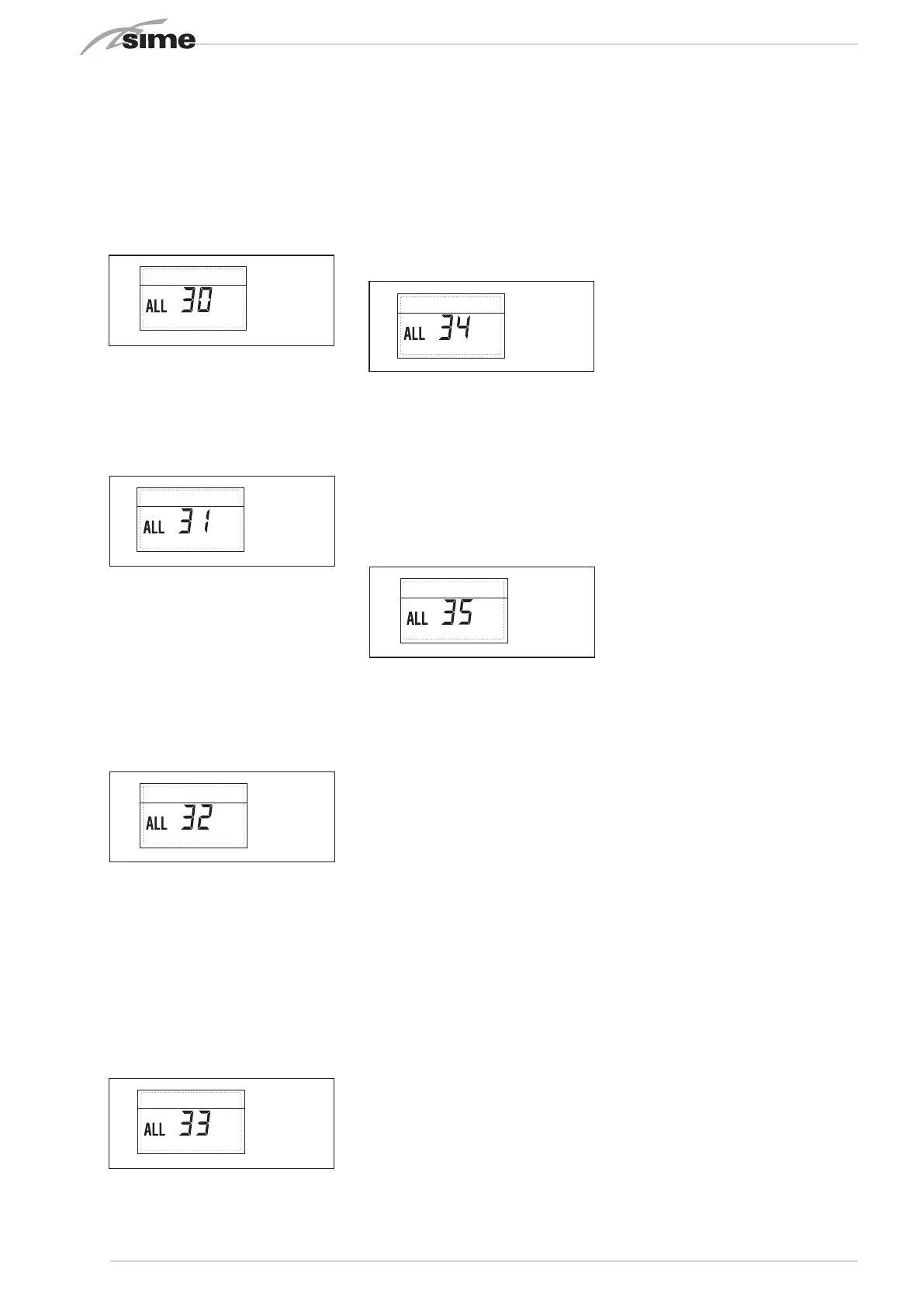

– HEATING RETURN SENSOR ERROR
“ALL 30” (fig. 23/24)
When the heating return sensor (SR)
is open or short-circuited, the display
shows anomaly ALL 30. During such
anomaly the generator continues normal
functioning.
– CASCADE DELIVERY SENSOR ERROR
“ALL 31” (fig. 23/25)
When the cascade delivery sensor (SMC)
is open or shorted, ALL 31 will be dis-
played.
– THREE-ZONE SYSTEM CONFIGURATION
ANOMALY “ALL 32” (fig. 23/26)
When the boards connected to the
RS-485 are not enough and/or at least
one of them it is not mixing zone board,
the boiler stops and anomaly ALL 32 is
displayed.
The boiler restarts when the boiler
three-zone system configuration is acti-
vated.
– RS-485 BOARD COMMUNICATION
ANOMALY IN MODBUS MODE “ALL 33”
(fig. 23/27)
When PAR 16 is different from “- -”and
there is no communication between the
boiler board and the RS-485 board in
MODBUS mode for at least four minutes,
the boiler stops and anomaly ALL 33 is
displayed.
The boiler restarts when communication
is restored or when PAR 16 = “- -” is set.
– RS-485 BOARD COMMUNICATION
ANOMALY IN CASCADE MODE “ALL 34”
(fig. 23/28)
When PAR 15 is different from “- -” and
there is no communication between the
boiler board and the RS-485 board in
CASCADE mode, the boiler stops and
anomaly ALL 34 is displayed. The boil-
er restarts when communication is
restored or when PAR 15 = “- -” is set.
– RS-485 AND RS-485 COMMUNICATION
ANOMALY “ALL 35” (fig. 23/29)
When PAR 15 is different from “- -” and
there is no communication between the
two RS-485 boards, the boiler stops
and anomaly ALL 35 is displayed. The
boiler restarts when communication is
restored or when PAR 15 = “- -” is set.
CAUTION: In the event of sequence/cas-
cade connection, error codes 70 and 71
will appear on the SIME HOME remote
control display:
- ALARM 70
When an anomaly affects cascade oper-
ation (cascade delivery sensor ALL 31),
SIME HOME remote control display will
show alarm 70. Verify the anomaly in
the cascade.
- ALARM 71
When an anomaly occurs in one of the
modules and the others keep operating
to the extent permitted, the SIME HOME
remote control display will show alarm
71. Verify the anomaly in the cascade.
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/29
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/24
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/25
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/27
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/28
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 23/26
