9INSTALLATION
ENGLISH

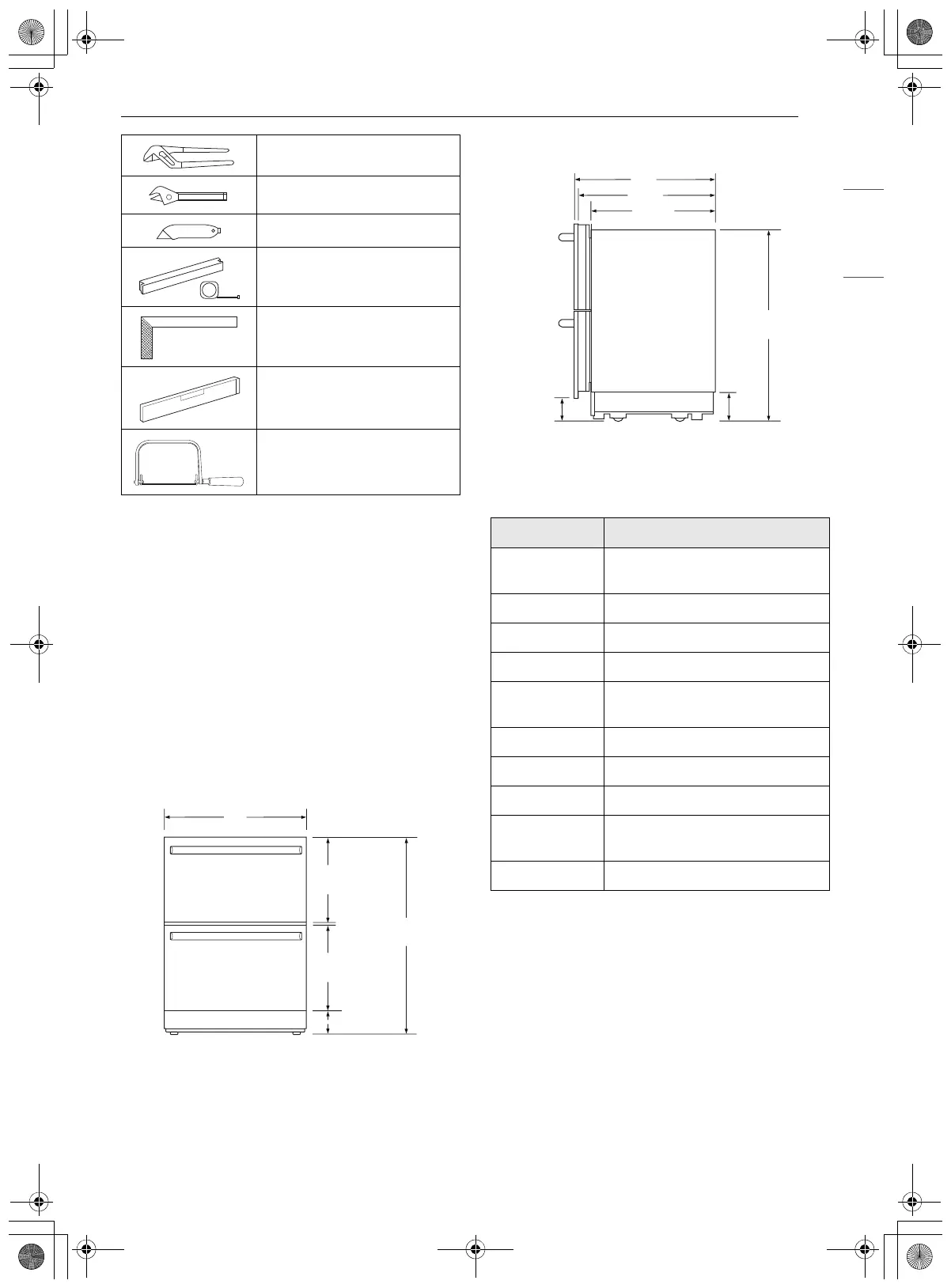

Product Dimensions
The following installation instructions describe the
installation steps for various appliance types.
The diagrams may be a general representation of
your appliance.
Particular reference is made to special installation
steps for individual appliance types.
Product Dimensions
Model: SKSUD2402P
• Front View
• Side View
* Depth with 3/4" (19 mm) drawer panel
** Depth with drawers (no panel)
*** Unit depth without drawers
Multigrip pliers
Adjustable wrench
Cutter with adustable blade
Metal tape measure, folding
rule
Square
Level, length 2" (60 cm) and 4'
(1.2 m)
Saw to cut top trim pieces (for
retrofit installation only)
A
B
B
C
D
E
- Dimensions
A
23 11/16" (602 mm) with panel
23 7/16" (595 mm) without panel
B 15" (381 mm)
C 1/4" (7 mm)
D 4" (101 mm)
E
34 1/4" (870 mm) min.
34 5/8" (880 mm) max.
F 23 1/4" (590 mm)
G 22 1/2" (571 mm)
H 20 1/2" (520 mm)
I
33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
J 5" (128 mm)
F*
G**
H***
I
J
D
