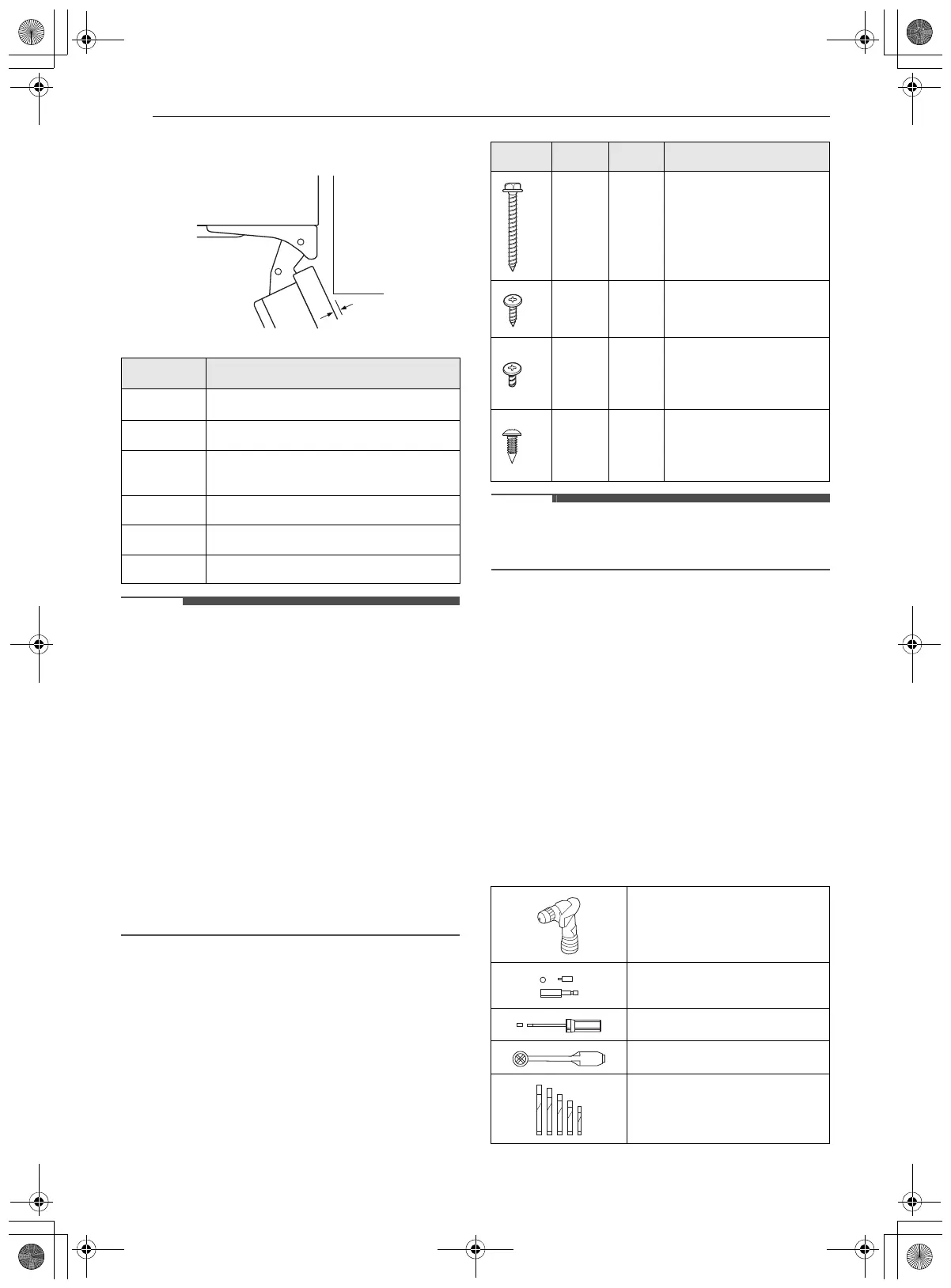

8 INSTALLATION
Top View (Door Open 115°)
NOTE
• Door Swing Clearances
- The installation must allow for clearances to
adjacent walls or cabinets. This wine
refrigerator is equipped with a 2-position door
stop. The factory-set 115° door swing can be
adjusted to 90° if clearance to adjacent
cabinets or walls is restricted.
• Door Handle Clearances
- The door handle depth must be added to the
dimension as noted to determine the total
clearances required from adjacent cabinets or
walls. This clearance will vary depending on
the custom handle used. When using the
Stainless Steel Door Panel Kit w/ Stainless Steel
Handle, the door handle clearance with door
open 115° is 11 3/4" (298 mm).
Required Accessories and
Tools
Accessories
Supplied Accessories
• Installation instructions
• Operating instructions
• Installation kit
NOTE
• In addition to the quantity required for installing
the appliance, spare screws may be provided.
Other
• Dolly, hand truck
• Drill for drilling holes in wall or floor.
• Drill bits in various sizes and suitable for
materials
• Wood screws in different sizes
• Thin plywood sheet, particle board or cardboard
to protect the floor from damage
• Suitable material for covering and protecting
furniture (e.g. protective sheets)
• Adhesive tape
Tools
- Dimensions and Clearances
A
224" (610 mm)
B 23 7/16" (595 mm)
C
Handle Side 1/8" (2.5 mm) min.
Hinge Side 1/2" (12.5 mm) min.
D 3/16" (4 mm)
E 23 11/16" (602 mm) with panel
F1/4" (6.5 mm)
Case
Door
Hinge
F
Screw Size No. Used for
5H x
45L
6 Anti-tip bracket
4D x
14L
10
Anti-tip bracket (6)
Enclosure (4)
4D x
6L
4Enclosure
4D x
12L
12 Door panel
Cordless screwdriver
Torx bit T20, T30 and
magnetic holder
Torx screwdriver T20, T30
3/8" (10 mm) hex nut driver
Various drill bits
A Type
B Type
C-1 Type
C-2 Type
en-us_main.book.book Page 8 Friday, July 14, 2023 11:13 AM
