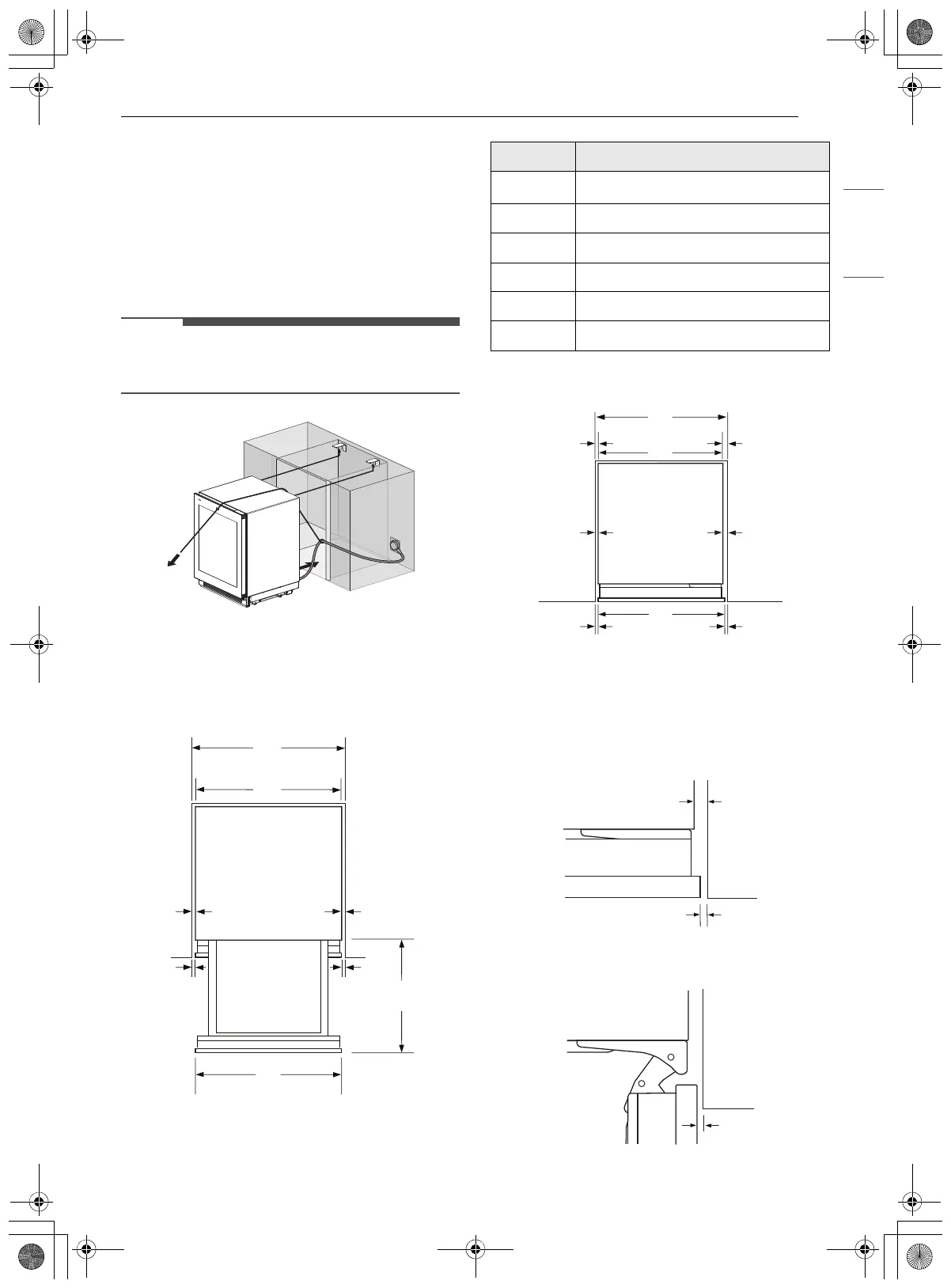

7INSTALLATION
ENGLISH
Electrical
• A 115 V, 60 Hz, 15 amp power supply is required.
An individual, properly grounded branch circuit
or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
• When installing a single product, use a single
outlet.
NOTE
• GFCI (ground fault circuit interrupter) is not
recommended.
Installation Clearances
Model: SKSUD2402P
* Side clearance at cabinet
** Side clearance at front panel
Model: SKSUW2401P
* Right hand hinge installation shown. When
reversing the door, the hinge and handle side
clearances also reverse.
** Side clearance at front panel
Top View (Door Closed)
Top View (Door Open 90°)
A
B
C* C*
D** D**
E
F
- Dimensions and Clearances
A
224" (610 mm)
B 23 7/16" (595 mm)
C 5/16" (7.5 mm) min.
D 3/16" (4 mm)
E 18" (457 mm) with panel
F 23 11/16" (602 mm) with panel
A
B
C*
D**
D**
C*
E
Door
Case
Panel
D**
C*
Case
Door
Hinge
D**
