10 INSTALLATION
Model: SKSUW2401P

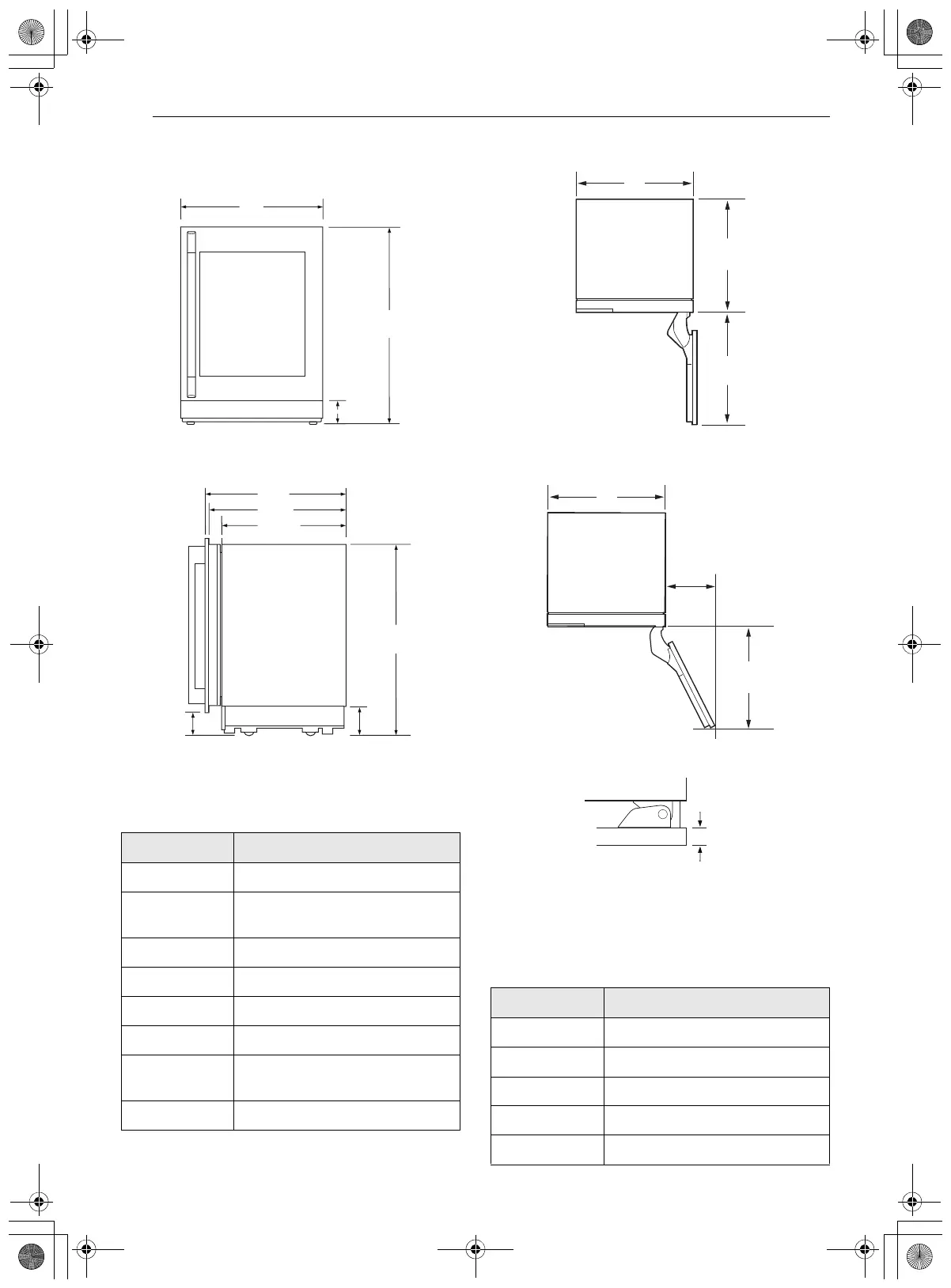

• Front View
• Side View
* Depth with 3/4" (19 mm) drawer panel
** Depth with door (no panel)
*** Unit depth without door
• Top View (Door Open 90º)
• Top View (Door Open 115º)
* Door handle must be added to this dimension.
** Varies depending on the thickness of the
custom cabinet panel. The door panels in the
optional Signature Kitchen Suite stainless steel
door panel kit are 3/4" (19 mm) thick.
- Dimensions
A 23 11/16" (602 mm) with panel
B
34 1/4" (870 mm) min.
34 5/8" (880 mm) max.
C 4" (101 mm)
D 23 5/8" (600 mm)
E 22 7/8" (581 mm)
F 20 7/8" (530 mm)
G
33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
H 5" (128 mm)
A
B
C
D*
E**
F***
G
H
C
- Dimensions
I 23 7/16" (595 mm)
J 20 7/8" (530 mm)
K 26 1/8" (663 mm)
L 10 1/2" (266 mm)
M 24 3/8" (620 mm)
I
J
K
I
L*
M
N**
