11INSTALLATION
ENGLISH
NOTE
• This unit is designed to be customized with a
decorative panel. A field-installed custom door
panel or an optional Stainless Steel Panel Kit is
required.
• For Custom Panels: Use templates provided
with units to pre-drill holes for mounting panel
brackets (provided with unit). Adjustment screws
and instructions are also provided with units.

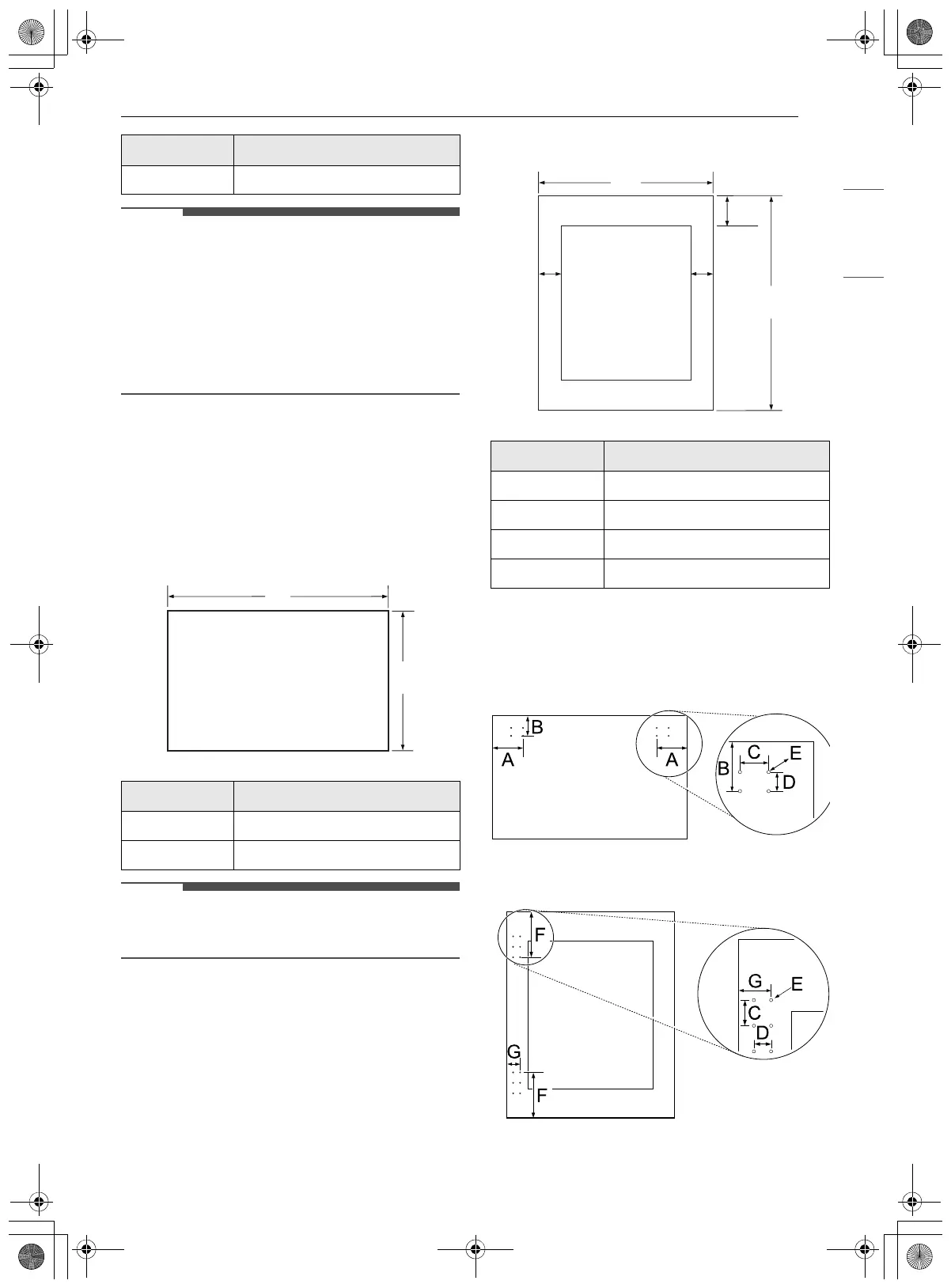

Custom Panel Dimensions
3/4" (19 mm) Custom panel dimensions
– Flush installation
• 24-inch undercounter convertible drawer
refrigerator
NOTE
• The custom panel dimensions are the same for
the upper and lower drawers.
• 24-inch built-in undercounter wine refrigerator
SKS door handle installation
dimensions of custom panel
• 24-inch undercounter convertible drawer
refrigerator
• 24-inch built-in undercounter wine refrigerator
N 3/4" (19 mm)
- Dimensions
A 23 11/16" (602 mm)
B 15" (381 mm)
- Dimensions
A
B
- Dimensions
C 23 1/16" (602 mm)
D 3 11/32" (84.9 mm)
E 4 15/16" (124.9 mm)
F 30 9/32" (769 mm)
F
C
D
E
D
en-us_main.book.book Page 11 Friday, July 14, 2023 11:13 AM
