12 INSTALLATION
Optional Accessories
• SKSUK240DS - Stainless Steel Panel and
Handle Kit for 24-inch Undercounter Drawer
Refrigerator
- This unit can be installed with an optional
Stainless Steel Panel Kit. Kit includes two
drawer panels and two handles.
• SKSUK240WS - Stainless Steel Panel and
Handle Kit for 24-inch Undercounter Wine
Refrigerator
- This unit can be installed with an optional
Stainless Steel Panel Kit. Kit includes door
panel and handle.
• SKSHK230HS - Handles for use with custom
panel
- 22 3/4" (578 mm) medium brushed aluminum
handle
Moving Appliance into
Enclosure
Installing the Anti-tip Brackets
WARNING
• To avoid injury or damage, check for electrical
wires or plumbing in walls before drilling or
installing screws.
• The anti-tip bracket should be firmly fixed to a
concrete wall/wood with strength of 15 t or
greater, or a wall with equivalent strength. (The
structure where the bracket is fixed should be a
solid structure that can withstand a force of 70
kgf or greater.)

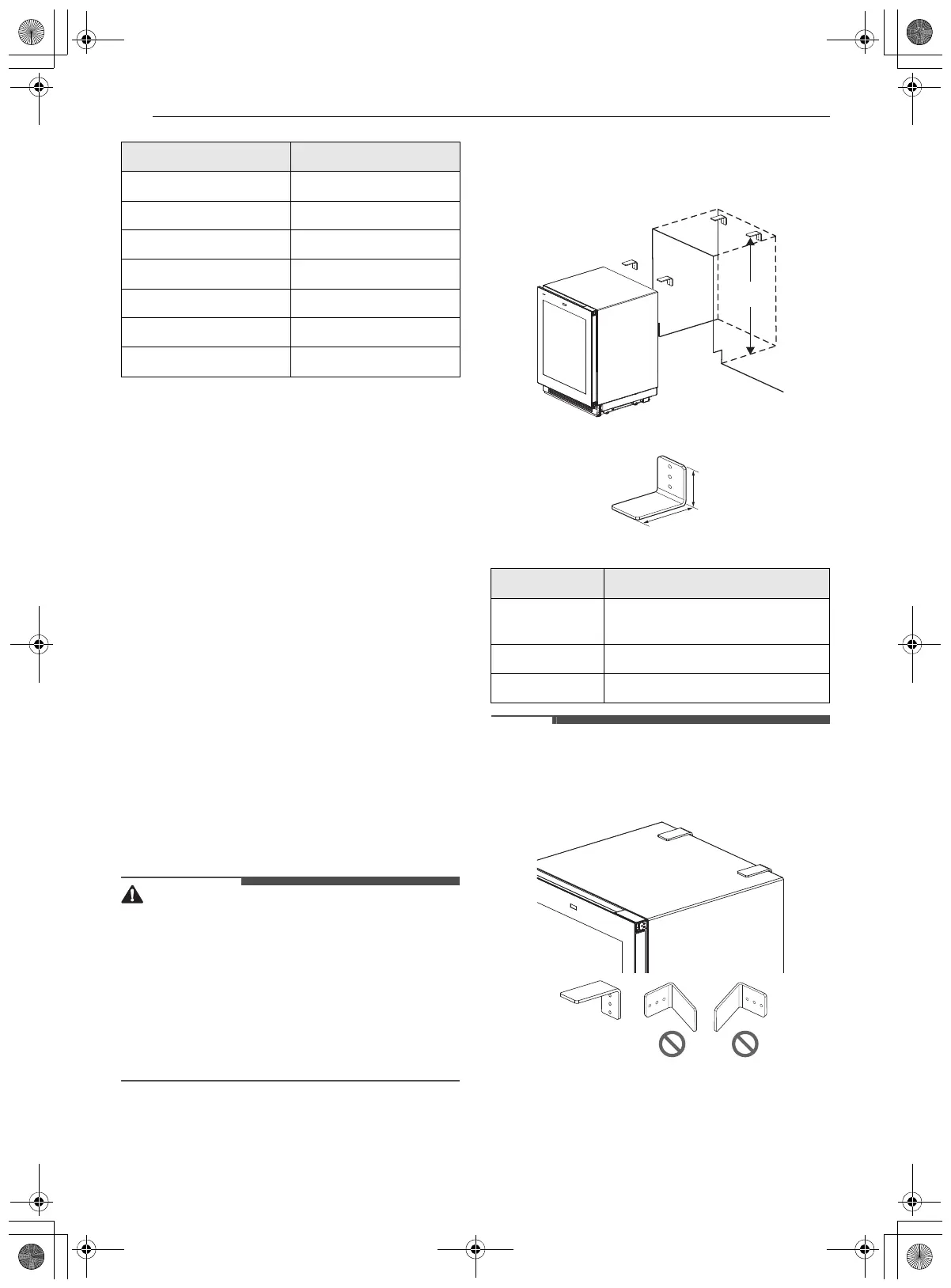

Install the anti-tip brackets at the rear of the
enclosure, locating the brackets based on stud
locations and product and enclosure dimensions.
NOTE
• Brackets must be attached as shown below. The
brackets could fail to prevent tipover of the unit
if installed in an alternate orientation.
- Dimensions
A 3 3/4'' (94.5 mm)
B 2 7/16'' (62.4 mm)
C 1 7/16'' (37 mm)
D 15/16'' (24.4 mm)
E Φ 3/16'' (4.8 mm)
F 7'' (178 mm)
G 1 1/4'' (57.9 mm)
- Dimensions
A
33 3/16" (843 mm) min.
33 9/16" (853 mm) max.
B 2 3/8" (60 mm)
C 3 3/4" (90 mm)
A
B
C
Anti-Tip Bracket x 2
