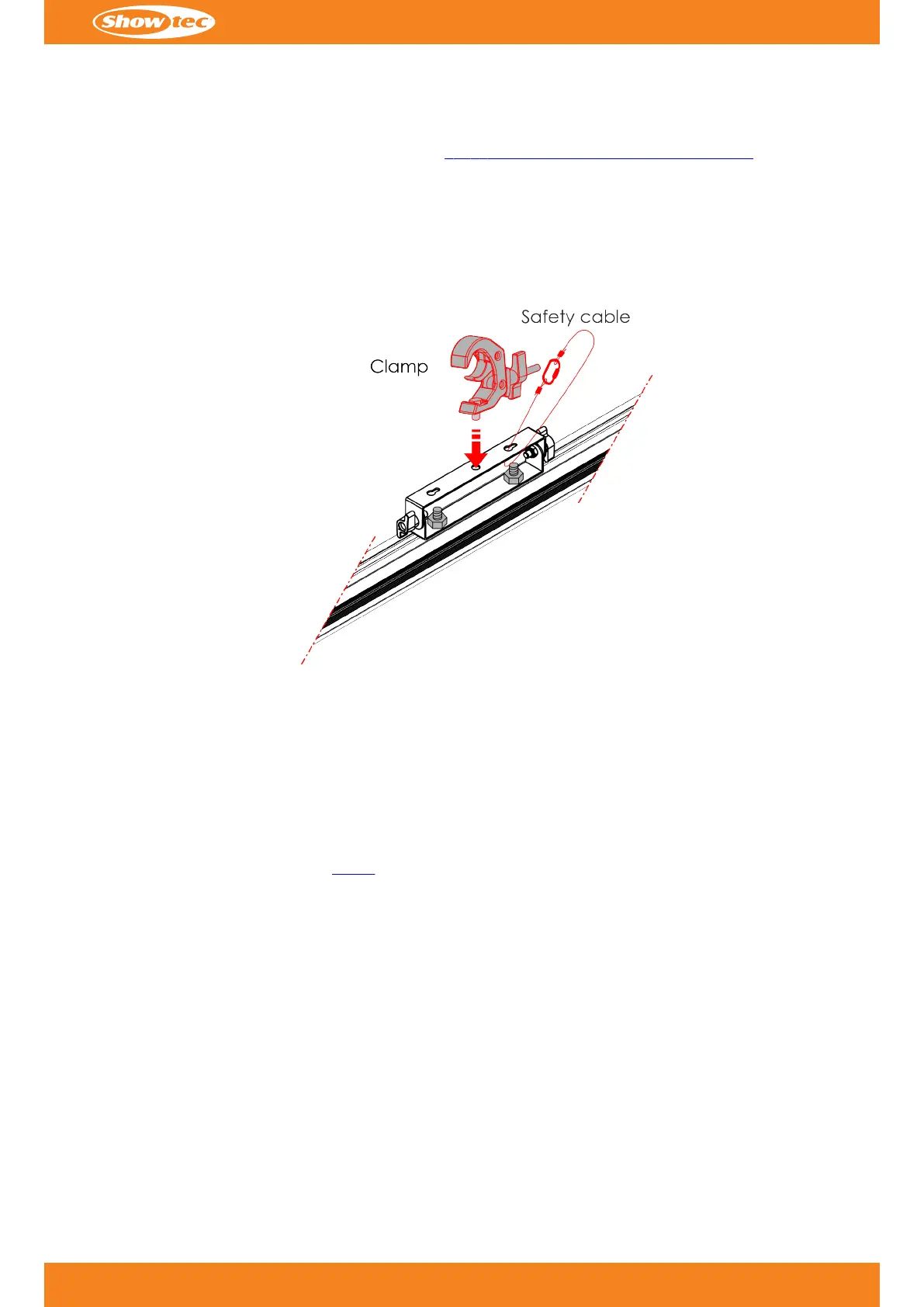

4.4.2. Installation with a Clamp

To mount the LED strip to a rigging structure:

01) Fasten the mounting bracket to the LED strip (see 4.4.1. Installation of the Mounting Bracket on page 11).01)

02) Attach a clamp to the mounting hole on the mounting bracket. Make sure that you use a clamp suitable02)

for attaching the LED strip to a truss.

03) Secure the LED strip with a secondary suspension, for example a safety cable. Make sure that the03)

secondary suspension can hold 10 times the weight of the LED strip. If possible, the secondary suspension

should be attached to a supporting structure independent of the primary suspension. Put the safety cable

through the safety eye on the mounting bracket.

Figure 5

4.4.3.

Installation on a Flat Surface

You can mount the LED strip on a flat surface in 2 ways:

You need the following:

• a drill•

• a drill bit (for wood or concrete), 6–7 mm long•

• 2 anchors (if applicable)•

• 2 screws•

• mounting bracket (product code: 42234)•

Notes:

• Make sure that the drilling location for the mounting holes is free of obstructions such as pipes, ducts, or•

wires.

• Do not drill into mortar joints. Screws installed in mortar joints cannot safely support the weight of the•

device.



Product code: 42242

Single Strip for Octostrip FLEX – 0,5M
