To mount the LED strip on a flat surface follow the steps below:

01) Hold the mounting bracket against the flat surface and mark the position of the 2 mounting holes on the01)

flat surface.

02) Drill holes at the 2 marked locations.02)

03) Insert anchors into the drilled holes, if applicable.03)

04) Fasten the mounting bracket to the LED strip (see 4.4.1. Installation of the Mounting Bracket on page 11).04)

05) Hold the mounting bracket at the mounting location.05)

06) Insert and tighten the screws into the drilled holes to fasten the mounting bracket and the LED strip to the06)

flat surface.

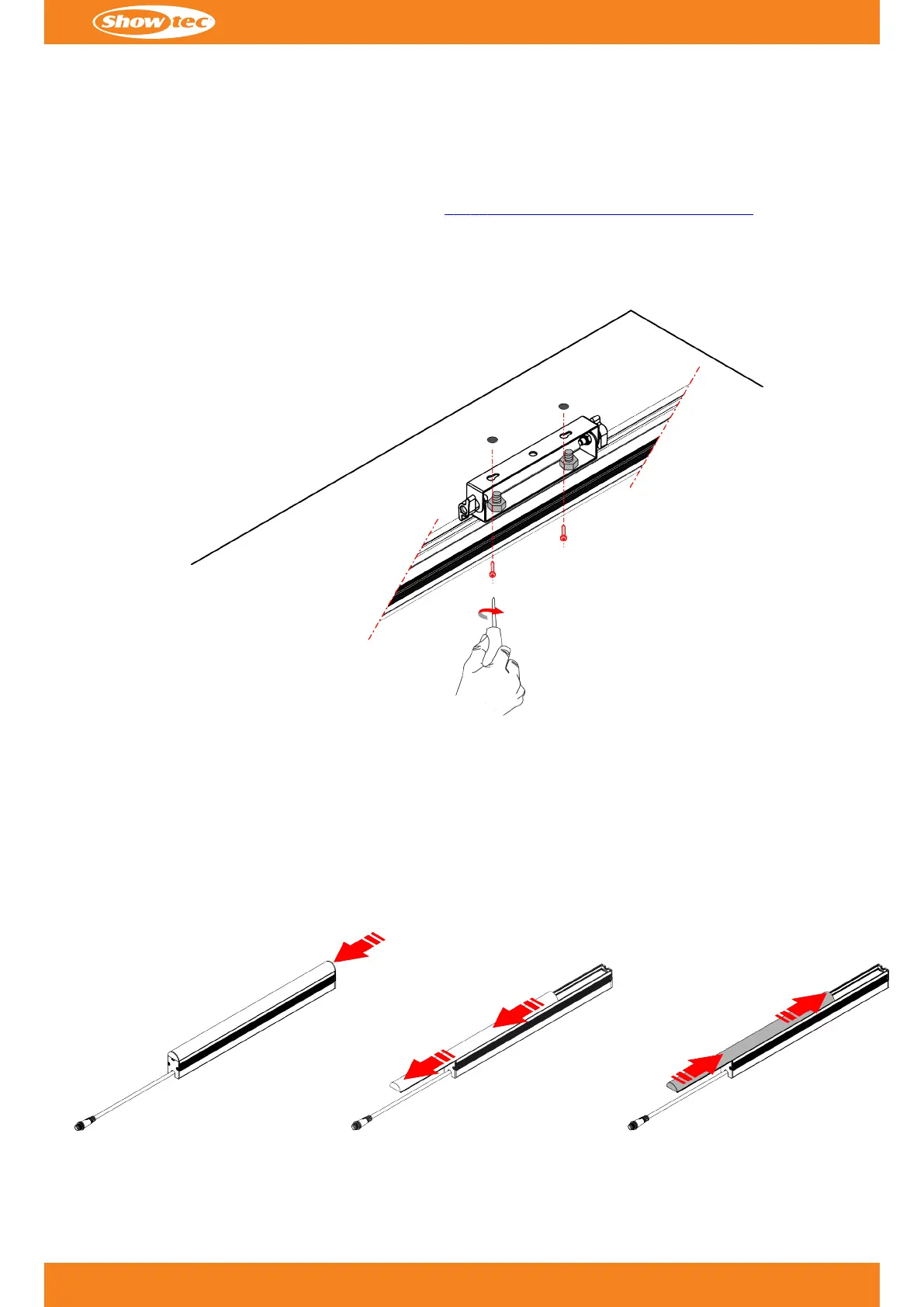

Figure 6

4.5.

Diffuser Installation

The Single Strip for Octostrip FLEX – 0,5M is delivered with a white diffuser and a black diffuser. The white diffuser

is installed on the LED strip.

To replace the diffuser on the LED strip:

01) Push the diffuser (04) at one end and slide it out of the LED strip housing (01).01)

02) Place the other diffuser at the end of the LED strip housing (01) and slide it in.02)

Figure 7

Product code: 42242
