To wirelessly connect 1 or more devices, follow the steps below:
01) Set up an AirDrive 2.4 IP, 3-pin XLR as a transmitter (see 5.4. Change the Transmitter/Receiver Mode on01)
page 20).
02) Connect a controller device to the DMX XLR connector IN (11) of the transmitter.02)
03) Set up 1 or more devices as a receiver.03)
04) Set the receiver devices to the same wireless group as the transmitter device.04)
05) Connect the DMX XLR connector OUT (10) or one of the optically isolated DMX XLR connectors OUT (09) of05)
the receivers to output devices.
The signal from the transmitter device is now sent to the receiver devices.
Note:
The AirDrive 2.4 IP, 3-pin XLR has 4 DMX XLR connectors out. The standard DMX XLR connector OUT (10) is not
optically isolated. The 3 DMX XLR connectors OUT (09) are optically isolated. It is recommended to use an
optically isolated output when using an AirDrive 2.4 IP, 3-pin XLR as a receiver.
5.3. Setup as Signal Booster
The AirDrive 2.4 IP, 3-pin XLR can be used as a signal booster to boost the signal across larger distances.

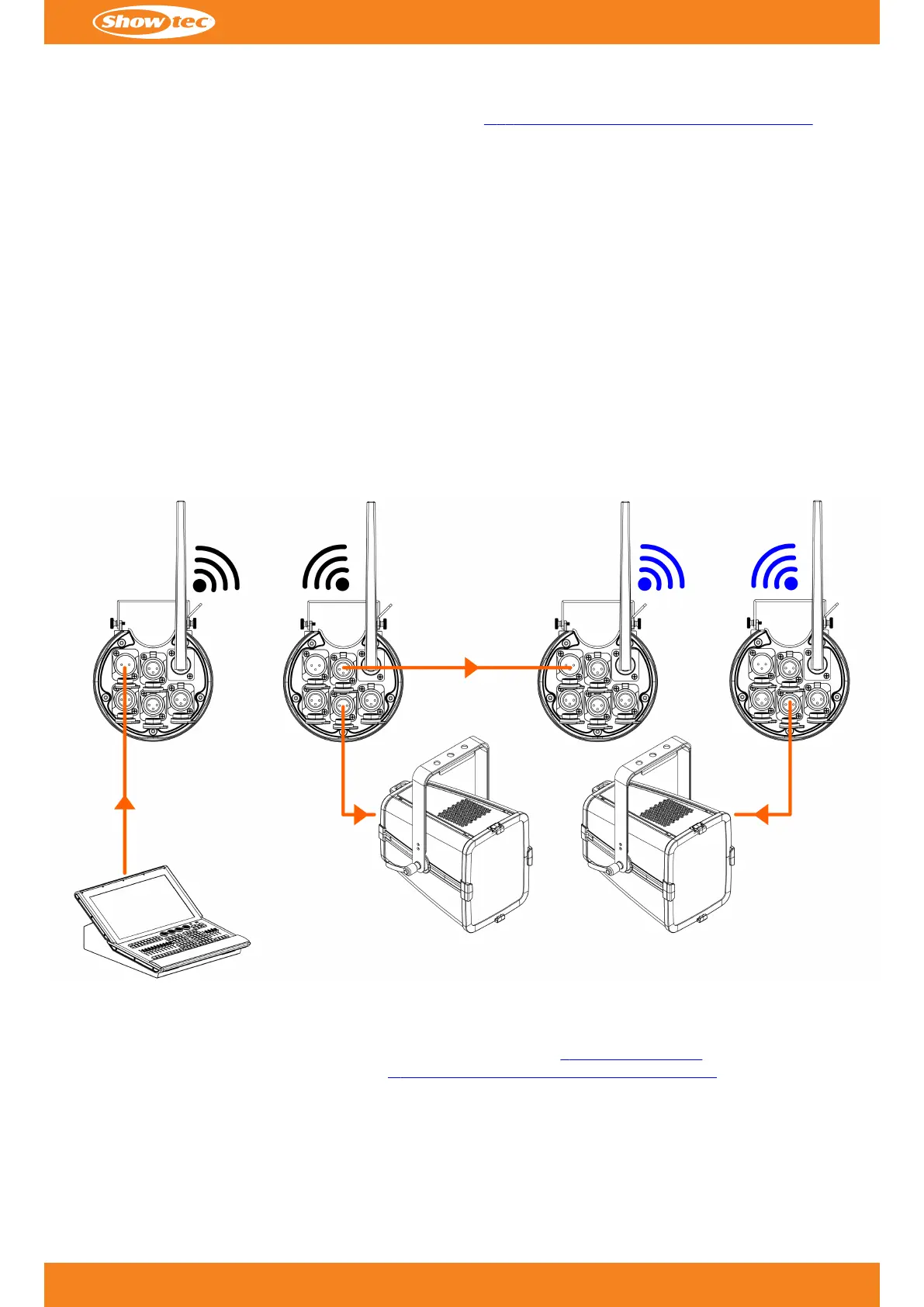

Figure 9
To use an AirDrive 2.4 IP, 3-pin XLR as a signal booster, follow the steps below:
01) Set up a 1
st
group of devices with transmitters and receivers (see 5.2. Setup Example on page 18).01)
02) Set up a new device as a transmitter (see 5.4. Change the Transmitter/Receiver Mode on page 20).02)
03) Set the device to a different wireless group.03)
04) Connect one of the DMX XLR connectors OUT (09) of a receiver device in the 1
st
wireless group to the DMX04)
XLR connector IN (11) of the new transmitter device.
05) Set up 1 or more more devices as receivers and connect them to the 2
nd
wireless group.05)
06) Connect the DMX XLR connectors OUT (09) of the receivers in the 2
nd
group to output devices.06)
The signal from the first group of devices is now repeated by the 2
nd
transmitter to the remaining receivers.
19
c
Product code: 50266
AirDrive 2.4 IP, 3-pin XLR
