XPT800 – Sound Level Meter and Spectrum Analyzer
V1.0
Page 34 of 124

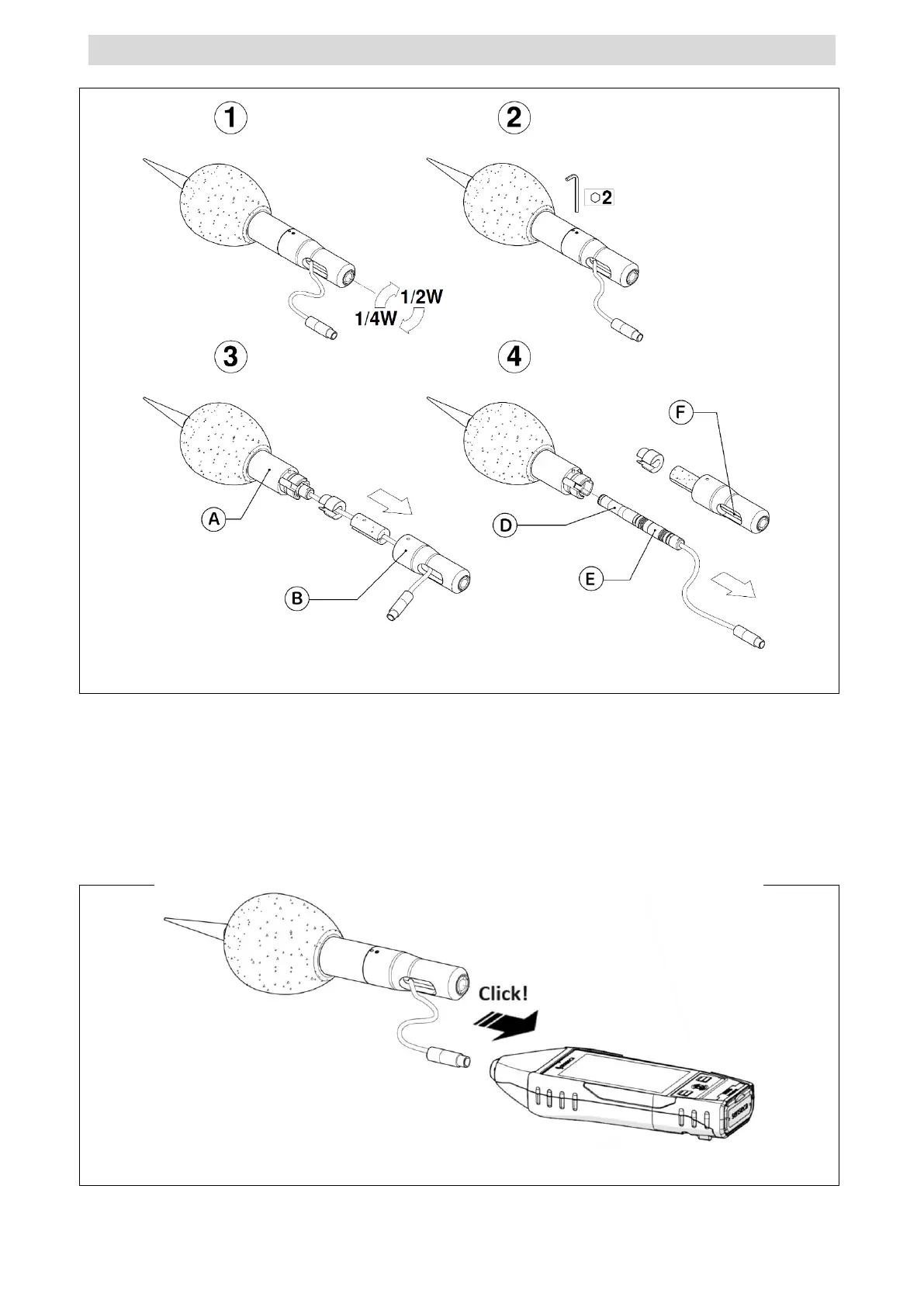

Fig. 11 - Disassembly of outdoor microphone unit
5.4.4 Connect the outdoor microphone unit to the sound level meter
After placing the outdoor microphone unit at the measurement site, it can be connected to the sound
level meter.
1
Remove the microphone from the sound level meter, see section “5.4.1 Microphone and preampli-
fier” on page 32”.
2
Insert the connector of the outdoor microphone unit into the sound level meter until you hear a
small click, pay attention to the orientation of the red pin.
3
If necessary, use the extension cable provided.
Fig. 12 - Outdoor microphone unit connection
