SCN60
User’s Manual
May 2011
Page 9
Plumbing: Gravity Drain Model
Caution: Restrictions in the drain system to the
machine will cause water to back up into the ice
storage bin and melt the ice. Gravity drain tubing
must be vented, have no kinks and slope to the
building drain. Air gaps are typically required by
local code.
1. Place the ice machine in front of the installation
opening. Adjust leveling legs to the approximate
height.
2. Insert drain tube through the routing hole in the
back panel.
3. Remove the upper back panel if needed for
access to drain connection.
Note: If you are connecting a gravity drain model
and the drain opening has been located in the
oor under the base pan according to the pre
install specications, follow steps 4 through 7a to
drain the unit through the base. If not, proceed to
step 7b.
4. Remove the clamp and barbed elbow and take
o the plastic cover in the base pan below the
drain hose.
5. Connect a straight 5/8” barbed connector to
the drain hose, securing with the supplied hose
clamp.
6. Cut an 8” piece of 5/8” ID X 7/8” OD tygon
(clear plastic) tubing. Slide one end of the tube
onto the outlet of the barbed connector and
secure with a clamp. Leave the other end of the
tube lying on the oor of the base pan until the
unit is positioned over the oor drain.
7. Route the drain tube. Either a) Insert the drain
tube through the base pan into the oor drain or b)
Route the drain tube through the hole in the lower
back panel and connect to barbed elbow and
secure with a clamp.
8. Reinstall any panels removed to connect the
drain.
Water Supply
The recommended water supply tubing is ¼ inch
OD copper. Stainless steel ex or reinforced
PVC tube may also be used. Install an easily
accessible shut-o valve between the supply and
the unit. This shut-o valve should not be installed
behind the unit.
The water connection is at the back of the cabinet.
Connect using a compression tting, one is
supplied tied to the water inlet tube at the back of
the cabinet.
When built in: Coil enough tubing behind the
machine so it can be pushed into the cavity
without kinking the tubing.

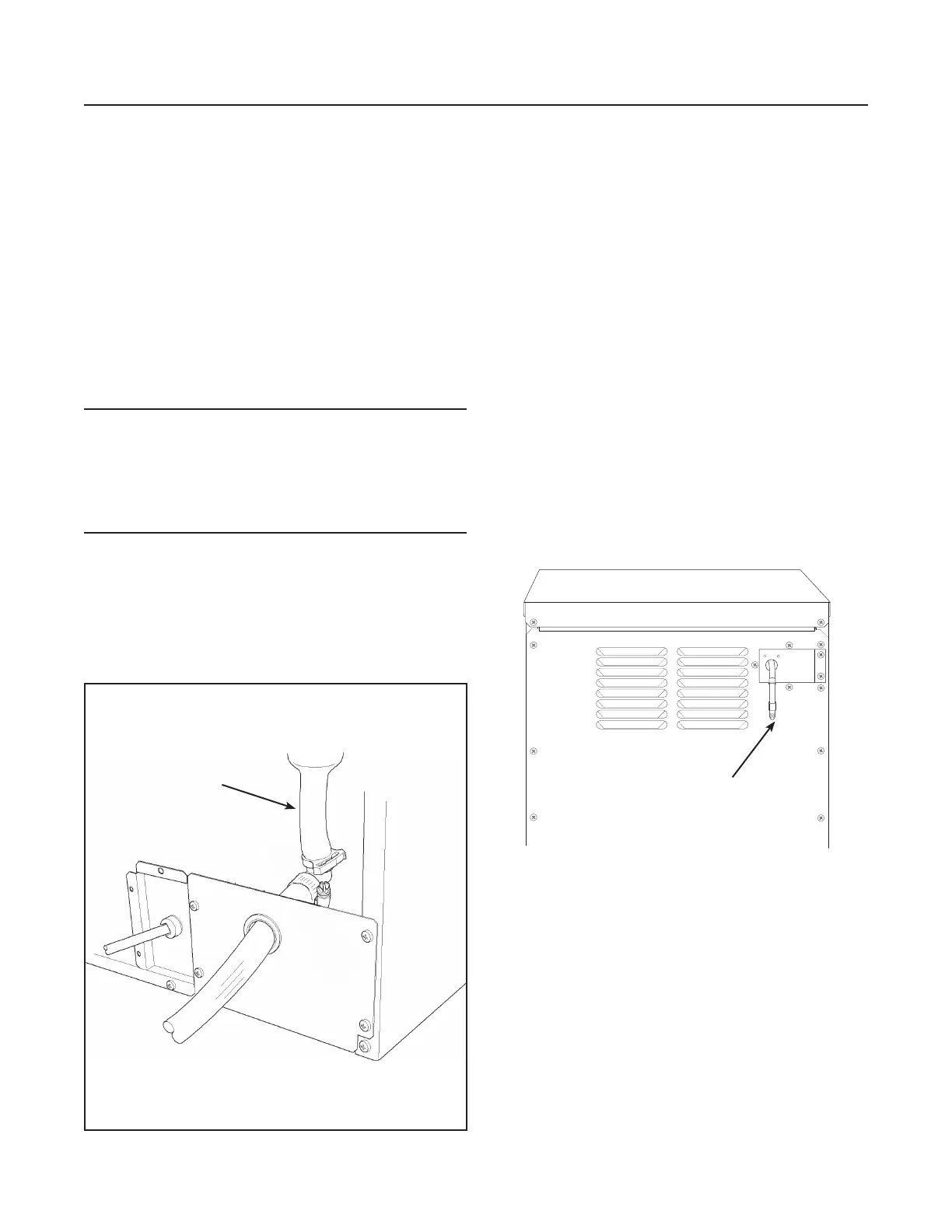

Connect Water Supply
Here, tting is supplied in
bag tied to tube.
Drain Tubing
Inside Cabinet
