Page 11
1.
IMPORTANT: When
mounting pipe fan
locking holes to be in
outside end of pipe (fan
end)
Min 150mm long
150mm PVC pipe
Locking Screw
Min 50mm
Flexible 200mm
ducting
Bell-mouth Adaptor
Locking holes at 10 and
4 o’clock
Cord slots at bottom
(6 o’clock position)
Weather shield
upper most
NOTE: Ensure that power cord is fed through exit slot and
is not allowed to double back restricting fan inlet.
Attach weather shield using 3 screws provided
when wall mounting. Ensure weather shield is
upper most position (12 o’clock position) when
engaging locking screw
Fix fan module using side locking
screw at 4 & 10 o’clock

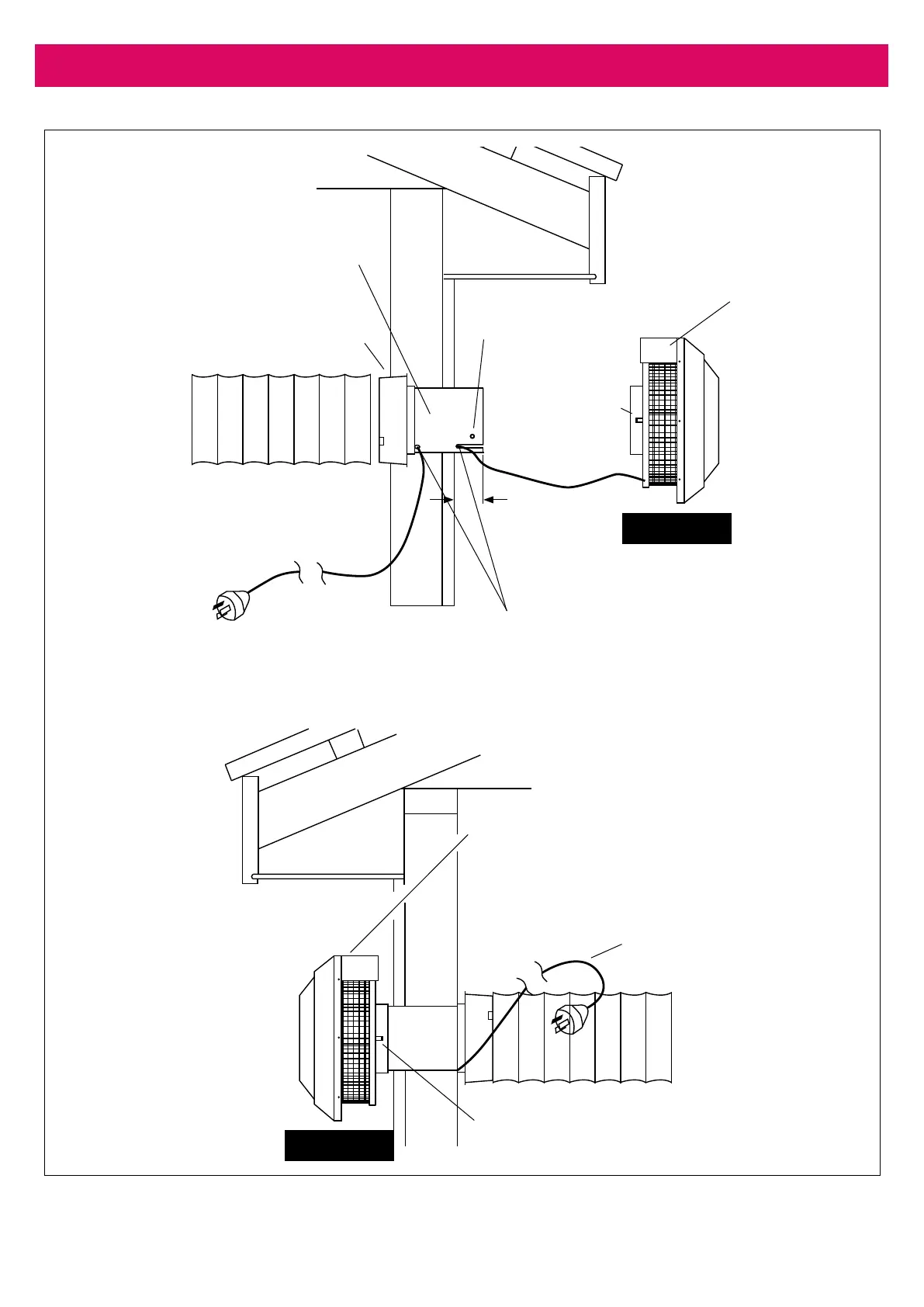

Figure 3 Wall Mount Option
1600 motor
1600 motor
4. Installation
NOTE: Ensure that power cord
is fed through exit slot and is
not allowed to double back
restricting fan inlet.
