Page 10
1.
Wall Installation
This type of installation is similar to roof mounting, ensuring that the pipe extends at least 50mm past the wall
surface refer gure 2. If the pipe length is shortened, reproduce the power cord exit slot on the inside of the
wall.
IMPORTANT FOR 1600 MOTOR: Weather shield must be tted to the top cover of the side ange using
the 3 screws provided. Also, it is required to use the hanging bracket for wall mount installation, for more
information please refer to page 15.
NOTE: By decreasing the length of the exi duct from which specied (refer to installation instructions) there
will be an increase in airow and noise levels as a result. This increase in airow can cause movement of air to
be heard through the system and inhibit the system to run silently.
Installation Without Back Draught Shutter

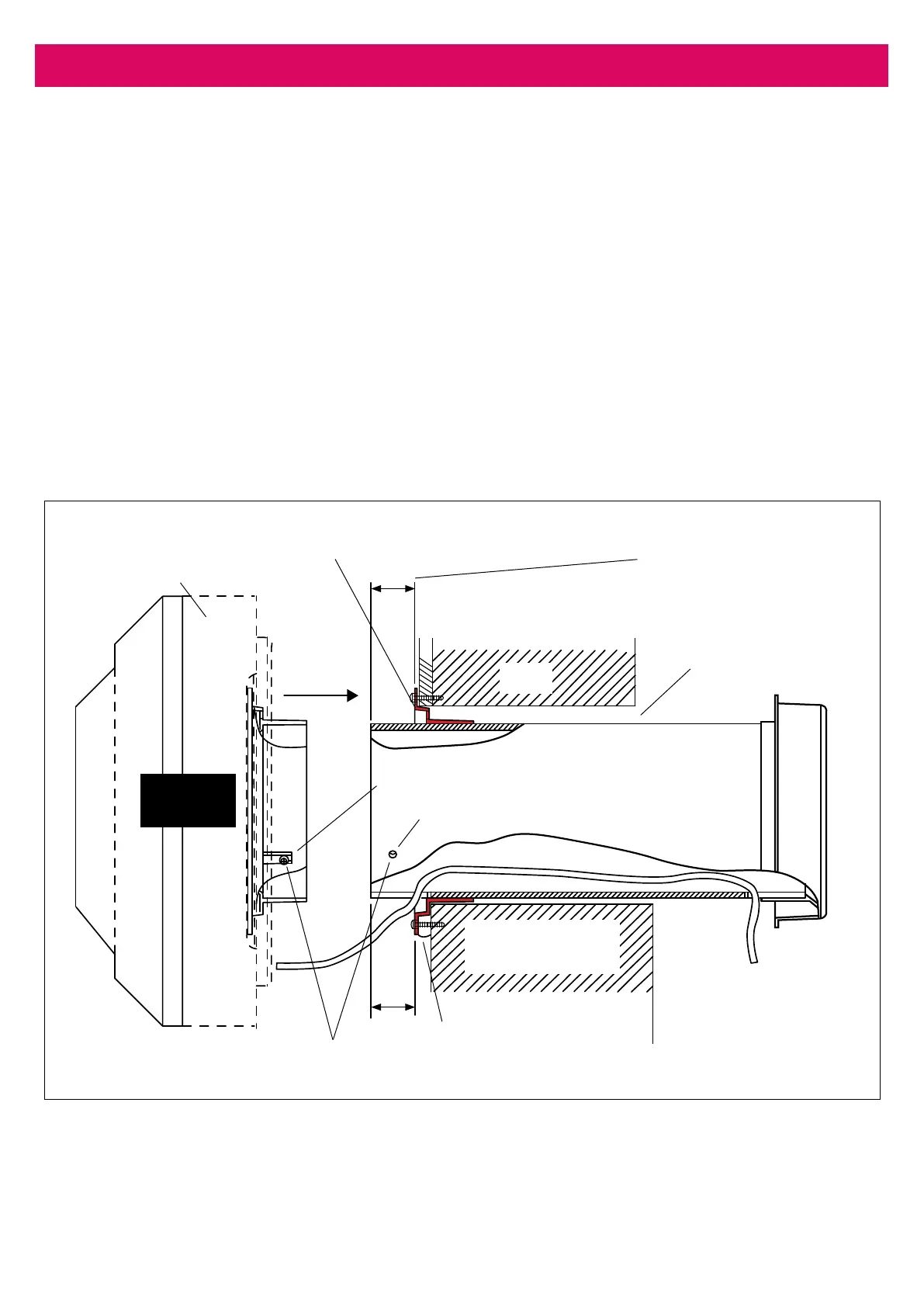

Figure 2 Wall Installation
Wall
Wall Optional
Fitment Pipe
Weather shield
must be at top
(1600 motor only)
Optional Mounting Flange
(P40113MF*)
150mm PVC Stormwater Pipe
From outside face of ange to end of pipe (or
wall if mounting ange not used)
50
50
Locking screws to be fully
tightened engaging in holes
Locking holes at 4 and 10 o’clock
Locking screws
Power cord to
240V supply
Seal with silicone or
urethane
Fill gap between pipe
and wall or t second
wall mount ange if
required
1600
motor
*Optional wall mounting ange (P40113MF) is available
from Schweigen, please contact 1300 829 066.
4. Installation
