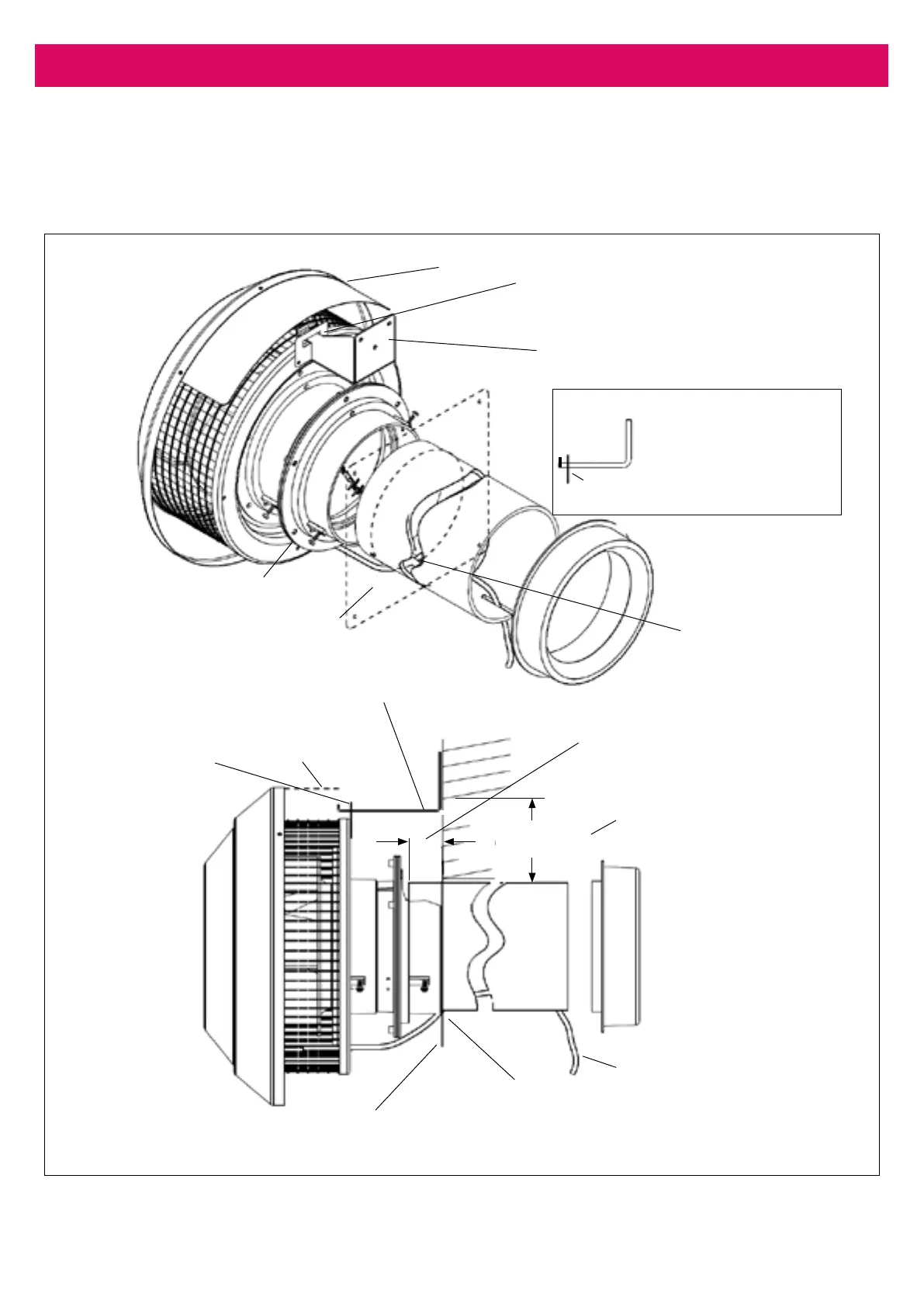

Installation Through Wall with Back Draught Shutter
Due to the weight and to create stability for the Isodrive 1600 motor, it is require to use a hanging bracket.
Warranty will be void if a hanging bracket is not used.
Figure 7
*Optional parts are available from Schweigen, please contact 1300 829 066.
Shield
Hanging Plate
Hanging Plate
Power Cord
Hanging
Plate
Hanging Bracket P1107*
NOTE: Hanging bracket is required
Shutter Assembly
Optional wall cover plate with
notch at bottom P1108*
Minimum pipe protrusion
from wall surface
Height of hanging bracket
above top of pipe
Slot in pipe at bottom
(6 O’Clock)
Optional wall cover plate P1108*
Required Hanging Bracket
P1107*
Shield
47mm
90-
95mm
Wall
Ensure that power
cable passes through
the cover plate notched
recess and is clear of
cut edges
Hanging bracket may be
substituted in the eld
by 25mm x 6mm at
bar bent to form angle
bracket
4. Installation
