Schneider TeSys D LR97D015 handleiding
Handleiding
Je bekijkt pagina 4 van 4
4/4
W9 1636662 01 A03
H
I
J

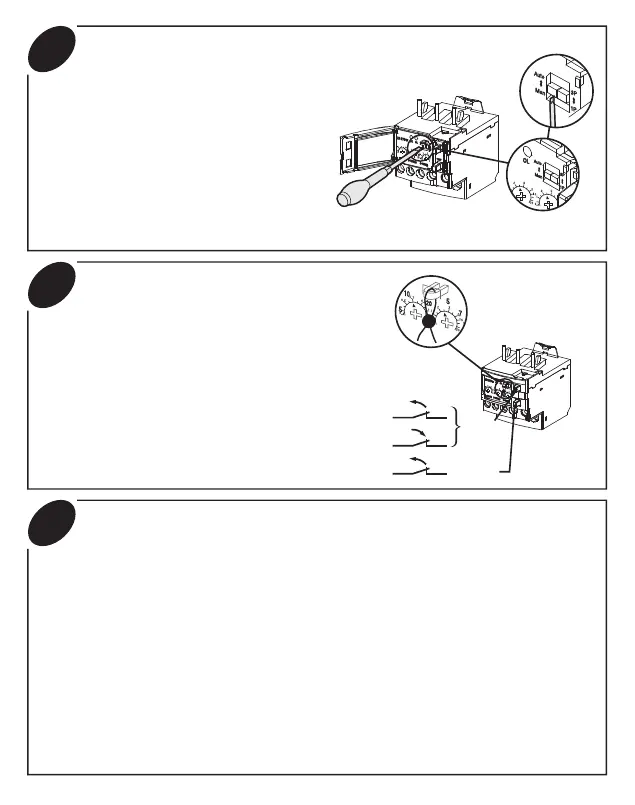

Function switch
RESET
9895
TEST
9695
9695
Reset
b Manual: Immediate reset by RESET button
b Electrical: Immediate reset by interrupting
control power (minimum 0.1 s).
b Auto: 120 s fixed, selectable by dip switch
(Over current trip only).
TEST Function available at no load
b
When LR97D is powered, keep Test button
pushed for D-Time plus O-Time till
internal relay switches its contact.
b
Periodic test is recommended.
Stop Function while motor is running.
b
Must be associated with 3-wire control circuit.
b
The motor will be stopped immediately by pressing the TEST/STOP button.
In this case, LR97D is automatically reset.
Bekijk gratis de handleiding van Schneider TeSys D LR97D015, stel vragen en lees de antwoorden op veelvoorkomende problemen, of gebruik onze assistent om sneller informatie in de handleiding te vinden of uitleg te krijgen over specifieke functies.
