OHBS and OHBL Combination Service Entrance Device (CSED) Tunnel Kits 73295-551-01
Kits de túnel para la base integral de medición para acometida (CSED) OHBS y OHBL 02/2011
Electrical equipment should be installed, operated, serviced, and
maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this
material.
Solamente el personal especializado deberá instalar, hacer funcionar y prestar servicios
de mantenimiento al equipo eléctrico. Schneider Electric no asume responsabilidad
alguna por las consecuencias emergentes de la utilización de este material.
Schneider Electric USA, Inc.
1601 Mercer Road
Lexington, KY 40511 USA
1-888-SquareD (1-888-778-2733)
www.schneider-electric.us
Importado en México por:
Schneider Electric México, S.A. de C.V.
Calz. J. Rojo Gómez 1121-A
Col. Gpe. del Moral 09300 México, D.F.
Tel. 55-5804-5000
www.schneider-electric.com.mx
© 2011 Schneider Electric All Rights Reserved / Reservados todos los derechos
2
Square D
™
is a trademark or registered trademark of Schneider
Electric. Other trademarks used herein are the property of their
respective owners.
Square D
™
es una marca comerciale o marca registrada de Schneider Electric. Cualquier
otra marca comercial utilizada en este documento pertenece a sus respectivos
propietarios.
Tunnel Installation Instalación del túnel
1. Orient tunnel (A, Figure 2) in enclosure so that the
hooks on the tunnel engage the slots in the utility
barrier (B, Figure 2).
1. Oriente el túnel (A, figura 2) en el gabinete de manera que los
ganchos en el túnel se enganchen en las ranuras de la barrera de
acometida (B, figura 2).
2. Attach tunnel to enclosure with two screws provided.
Torque screws to 30 lbs-in. (3.4 N•m).
2. Instale el túnel en el gabinete empleando los dos tornillos
incluidos.

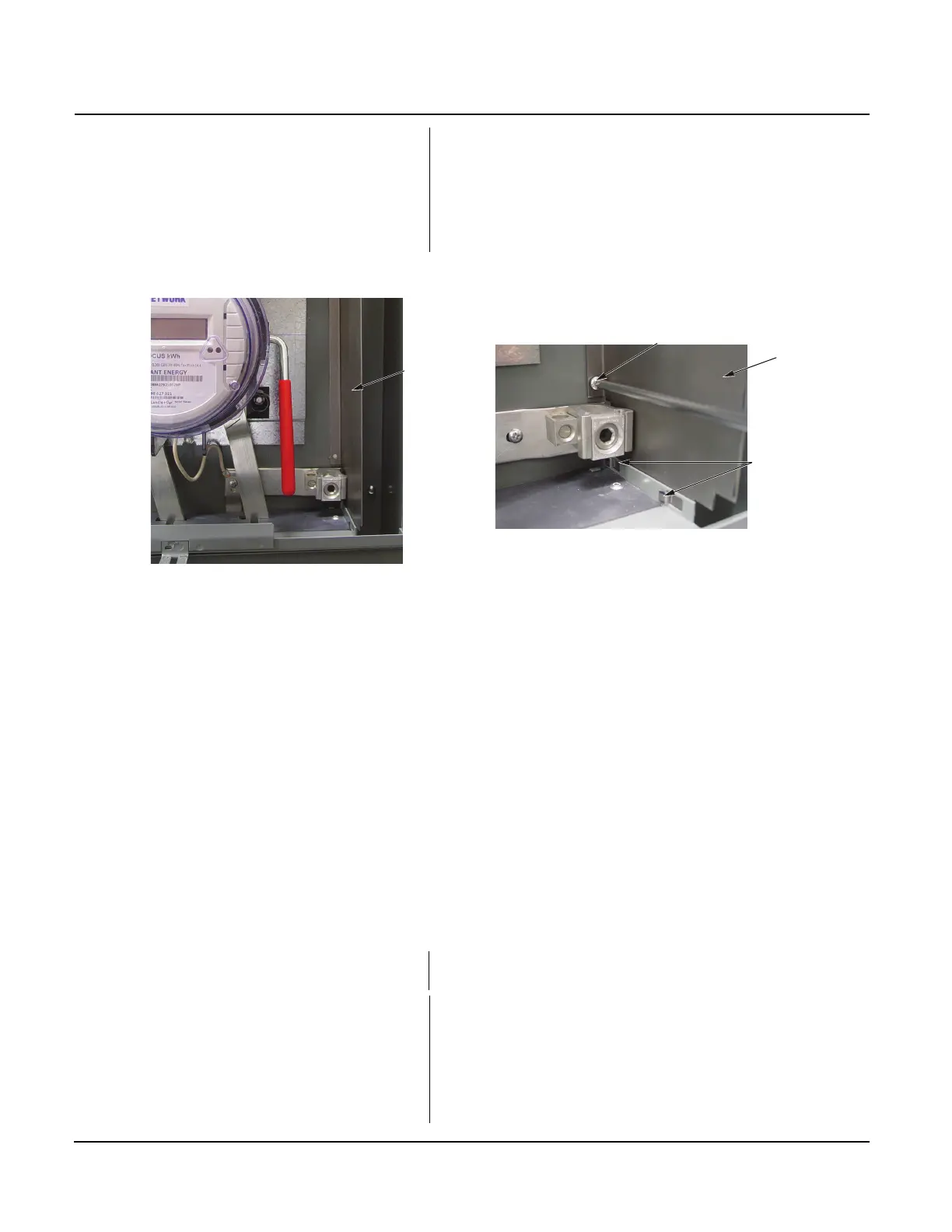

Figure / Figura 2: Tunnel Installation / Instalación del túnel
A
B
A
C
