1. Overview

The following seven functions are available with Remote Keypad.

1. Function to serve as remote operation panel.

Remote Keypad can be used as a remote operation panel for the inverter.

2. Copying function

Data can be copied from one memory to another memory among the four memories, three

(memories A, B, C) on Remote Keypad and one on the inverter.

(i) Data copy from Remote Keypad to inverter

(ii) Data copy from inverter to Remote Keypad

(iii) Data copy from one memory to another memory on Remote Keypad

3. Simple copying function

Data stored in one of Remote Keypad’s memory may be transferred to the inverter’s memory by

simple operation of two keys.

4. Comparing function

Data stored in one of Remote Keypad’s memory can be compared with the data of inverter’s

memory. In addition, data stored within any of the 3 Remote keypad memories (A, B, or C) can be

compared with each other.

5. Memory protecting function

Data written on the inverter's memory and the memories of Remote Keypad are protected by this

function to protect against data damage.

6. Memory initializing function

One of the memories (A, B, or C) on Remote Keypad can be initialized by this function.

In addition, Remote keypad can be reprogrammed to default setting.

7. Remote Keypad parameter editing function

Remote Keypad parameters are programmable.

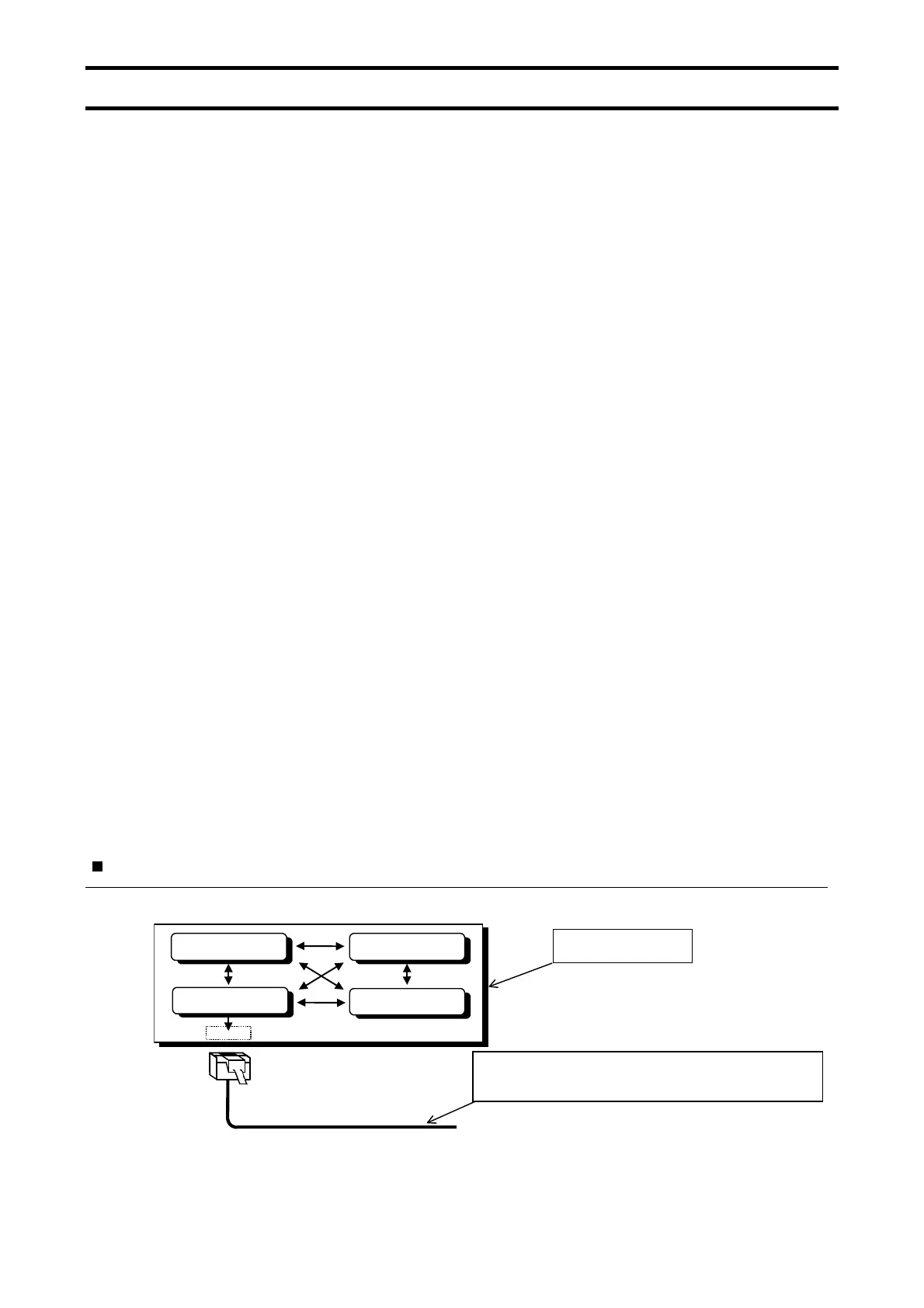

Memory configuration

Remote Keypad has three memories (A, B, and C) to retain three kinds of parameter for the inverter.

Memor

To inverter

Communication cable between Remote Keypad

and the inverter (To be purchased separately)

Remote Keypad

To inverter
