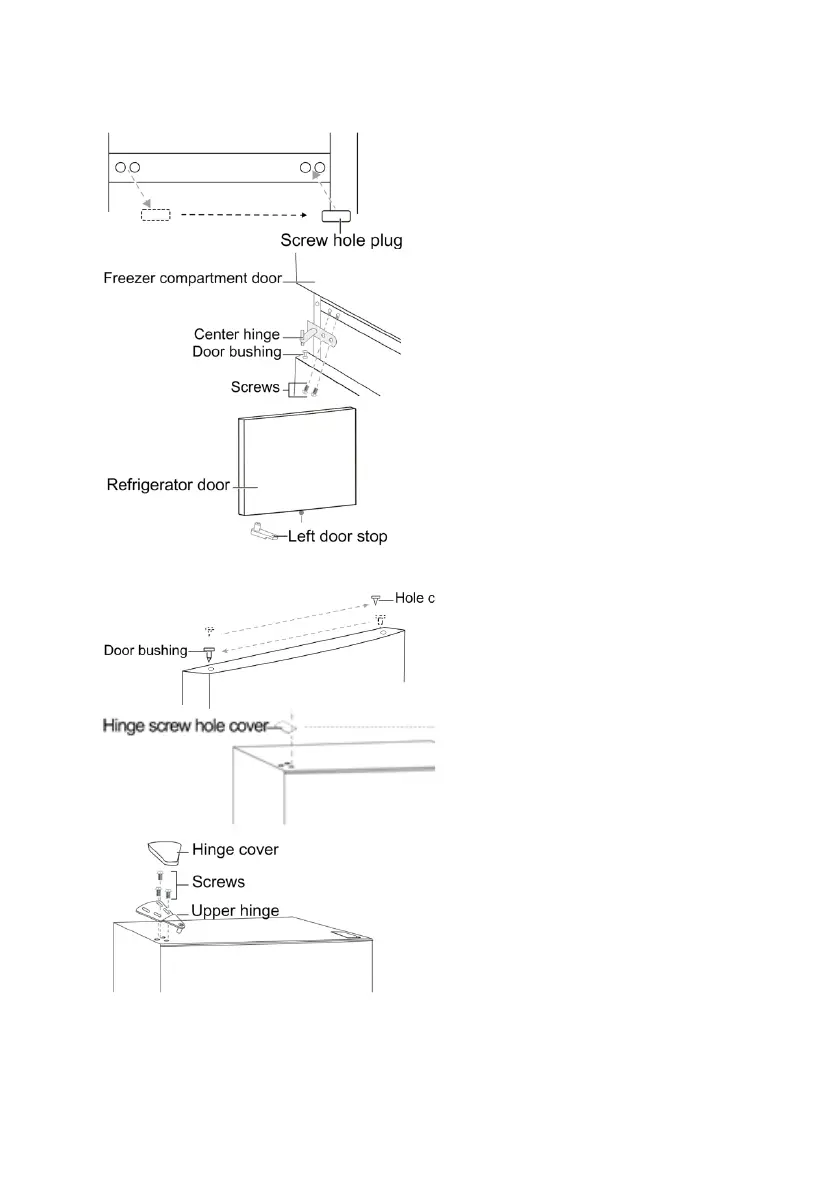

13 Remove the center hinge screw hole plug on
the left side of the cabinet, then install
the screw holes on the right side of the
cabinet
14 Install the center hinge to the left side with
the two screws you removed previously.
15 Get the left door stop from the accessory
bag, install it on the bottom left side o the
refrigerator door.
16 Install the Freezer compartment door.
17 Move the door bushing from the top right
side of the Refrigerator door to the top left
side of the door. And move the left hole
cover to the right side.
18 Remove the hole cover from the top left
side of the cabinet. Install the hole cover to
the top right side of the cabinet.
19 Secure the upper hinge to the top left side
of the cabinet with the three screws you
removed previously. Before you tighten the
upper hinge screws, make sure that the top
of the door is level with the cabinet and that
the rubber gasket makes a good seal.
20. Install the hinge cover over the hinge on the
top left side of the cabinet.
Note: Ensure the rubber gaskets are making a good seal with the cabinet all the way around the doors
before tightening the hinge screws.
English
24
