MRF209/MRF229/BCD211 reverse door

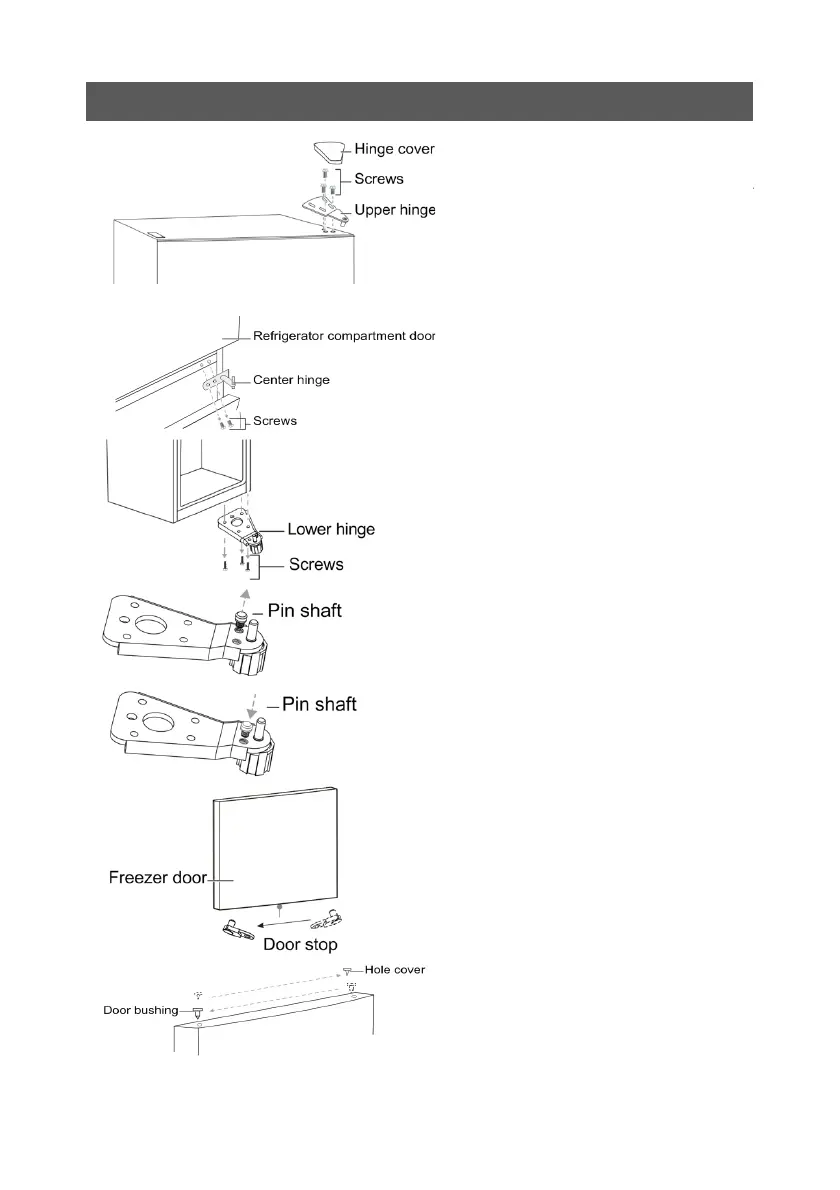

Reversing the door swing
1 Make sure that your product is unplugged.
2 Remove the screw which fix the right hinge
(if any), pry the top hinge cover up and off
and remove the screws that secure the
upper hinge to the door.
3 Remove the refrigerator compartment door
from the cabinet.
4 Remove the two screws that secure the
center hinge, then remove the hinge.
5 Remove the freezer compartment door.
6 Remove the screws that secure the lower
hinge to the right side of the cabinet, then
remove the hinge.
7 Remove the washer and nut that secure the
pin shaft to the right hole on the lower
hinge, then remove the shaft
8 Insert the pin shaft into the left hole on the
lower hinge, then secure the shaft with the
washer and nut.
9 Install the lower hinge on the left side of the
cabinet.
10 Remove the screw that secures the door
stop from the bottom right of the
refrigerator compartment door, then
remove the door stop and install to the
bottom left side.
11 Install the refrigerator compartment door.
12 Move the door bushing from the top right
side of the freezer door to the top left side
of the door. And move the left hole cover to
the right side.
English
23
