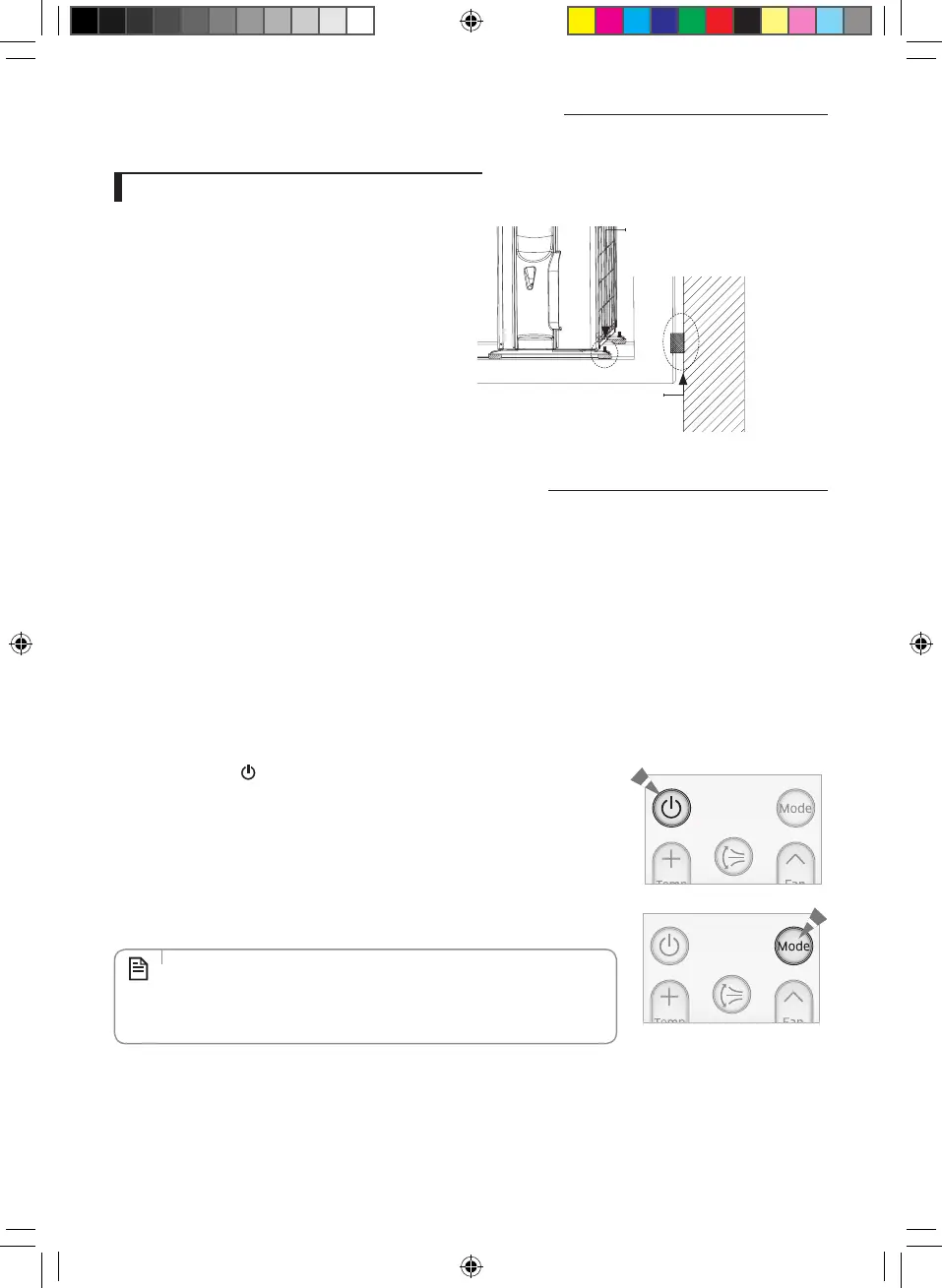

Fixing the outdoor unit in place
Outdoor unit installed on the wall by rack
Ensure the wall will be able to suspend the
weight of rack and outdoor unit;
Install the rack close to the column as much as
possible;
Install proper grommet in order to help reduce
noise and residual vibration transferred by
outdoor unit towards wall.
Soft rubber designed to cut off
vibration from rack to wall.
(not supplied with product)
Designed to cut off residual vibration
from outdoor unit to rack.
(not supplied with product)
Final check and trial operation
To complete the installation, perform the following checks and tests to ensure that the air conditioner operates
correctly.
Check the followings:
Strength of the installation site
Tightness of pipe connection to detect gas leak
Electric wiring connection
Heat-resistant insulation of the pipe
Drainage
Grounding conductor connection
Correct operation (follow the steps below)
1. Press the Power
button and check the following:
The indicator on the indoor unit lights up.
The airflow blade opens and the fan gears up for operation.
2. Press the Mode button to select Cool mode.
In Cool mode, use Temp + or – button and set the temperature at 17 °C.
• Approximately 3~5 minutes later, outdoor unit will start to operate
and the Cool air will blow out.
• After 12 minutes of stationary condition check the indoor unit air
treatment.
NOTE
Cool mode (indoor unit check) → Inlet air temp. - Outlet air temp:
From 10 °C to 12 °C (indicative delta T)
