English-45
INSTALLATION
05

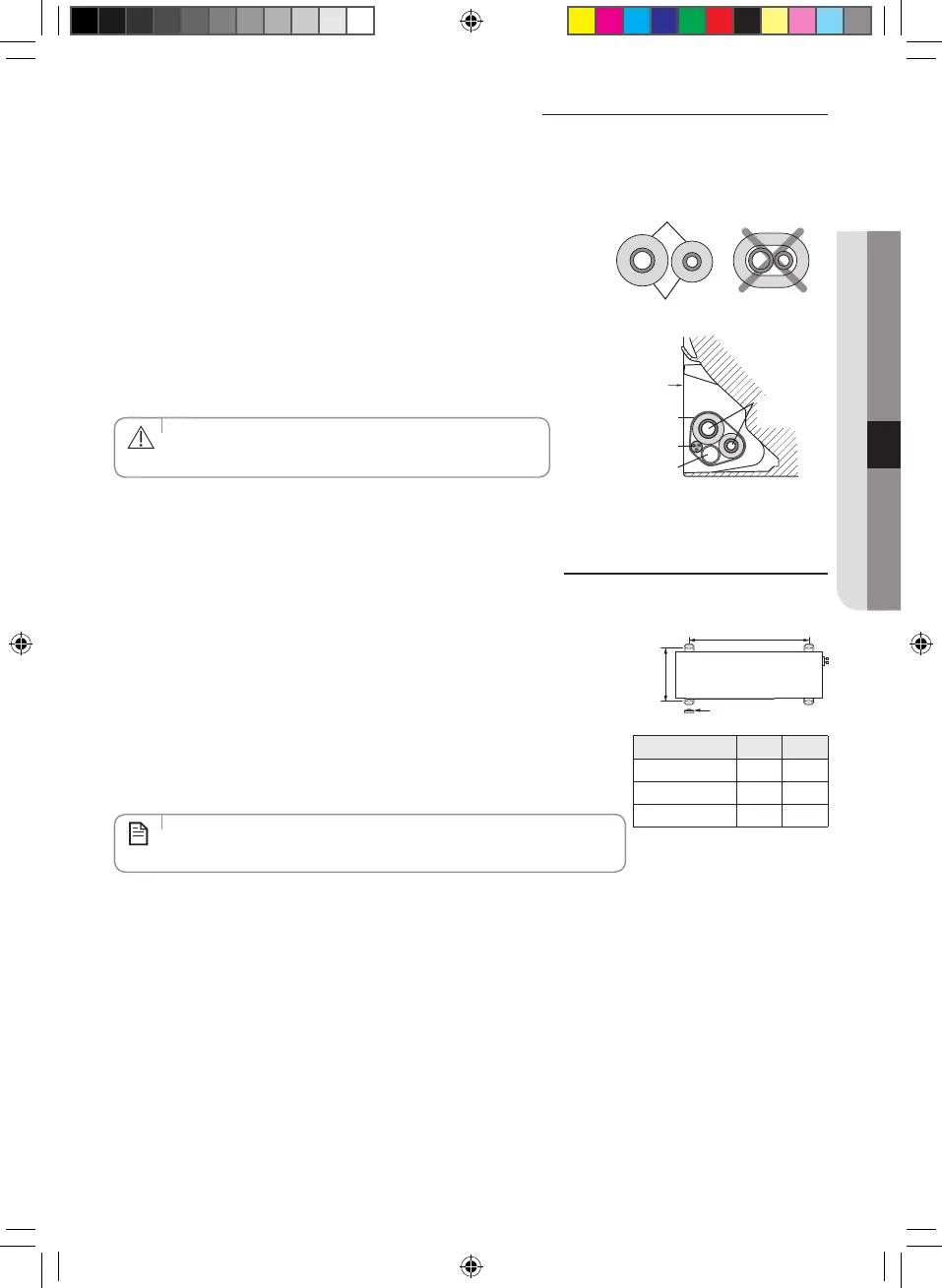

Fixing the indoor unit in place
Perform the following work on the area where gas leak test was done priory.
After checking for gas leaks in the system, insulate the pipe, hose and cables.
Then place the indoor unit on the installation plate.
1. To minimise condensation problems, wrap foam insulation
(as shown in the figure) on a part without insulation on the end
of the pipes.
2. Wind the pipe, assembly cable and drain hose with vinyl tape.
3. Place the bundle (the pipe, assembly cable and drain hose) in
the lower part of the indoor unit carefully so it does not project
from the rear of the indoor unit.
4. Hook the indoor unit to the installation plate and move the unit
to the right and left until it is securely in place.
• Make sure pipe does not move when you install the
indoor unit on an installation plate.
CAUTION
5. Wrap the rest of the pipe with vinyl tape.
6. Attach the pipe to the wall using clamps (optional).
Insulation
Pipes
Installation
plate
Connecting wires
Connecting
pipes
Vinyl tape
Drain hose
Fixing the outdoor unit in place
Install the outdoor unit in level on a stable base to help avoid the generation of
noise and vibration, especially when installing the unit close to a neighbor.
If you install the outdoor unit in a place exposed to strong winds or at a height, fix
it to an appropriate support (wall or ground).
1. Place the outdoor unit as indicated on the top of the unit to let the discharged
air out properly.
2. Fix the outdoor unit in level to an appropriate support using anchor bolts.
3. If the outdoor unit is exposed to strong winds, install shield plates around the
outdoor unit so that the fan can operate correctly.
• Secure the rubber leg to help prevent the generation of noise and
vibration.
NOTE
'X' mm
Rubber leg
'Y' mm
Model X Y
09/12
415 263
18
516 314
24
586 348
