English-33
INSTALLATION
05

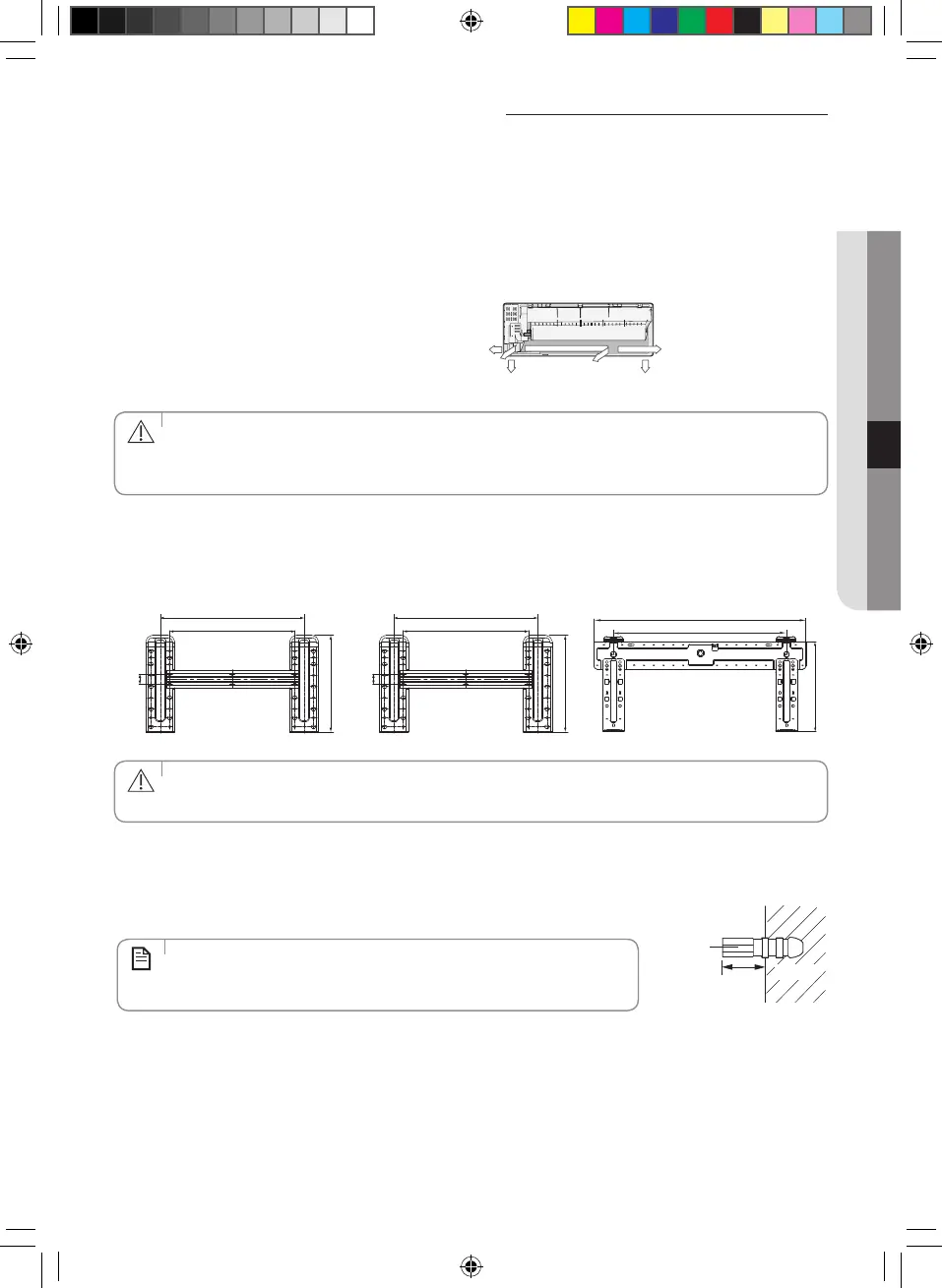

Fixing the installation plate
You can select the direction of the drain hose depending on where you want to install the indoor unit.
Therefore before fixing the installation plate to a wall or a window frame, you must determine the position of the
65 mm hole through which the cable, pipe and hose pass to connect the indoor unit to the outdoor unit.
When facing the wall, the pipe and cable can be connected from the:
• Right (A)
• Left (B)
• Underside_right (C)
• Rear_right or left (D)
❋ Direction of pipe
BA
D
C
D
• You can install the refrigerant pipe in the left/right/bottom, or the rear side of the indoor unit.
• If changing the pipe direction from left to right, do not drastically bent it but slowly turn it in the
opposite direction as shown. Otherwise, the pipe may be damaged in the process.
CAUTION
1. Determine the position of the pipe and drain hose hole as seen in the picture and drill the hole with an inner
diameter of 65 mm so that it slants slightly downwards.
✴✴09/12✴✴ ✴✴18✴✴ ✴✴24✴✴
320
280
20
224
380
267
340
20
650
530
275
• Make sure to drill only one hole after choosing the direction of the pipe.
CAUTION
2. Fix the indoor unit.
If you fix the indoor unit on a wall
(1) Fix the installation plate to the wall giving attention to the weight of the indoor
unit.
• If you mount the plate to a concrete wall using plastic anchors, make
sure that gaps between the wall and the plate, created by projected
anchor, is less than 20 mm.
NOTE
Wall
20mm
Plastic
Anchor
If you fix the indoor unit on a window frame
(1) Determine the positions of the wooden uprights to be attached to the window frame.
(2) Attach the wooden uprights to the window frame giving attention to the weight of the indoor unit.
(3) Attach the installation plate to the wooden upright using tapping screws.
