English-32

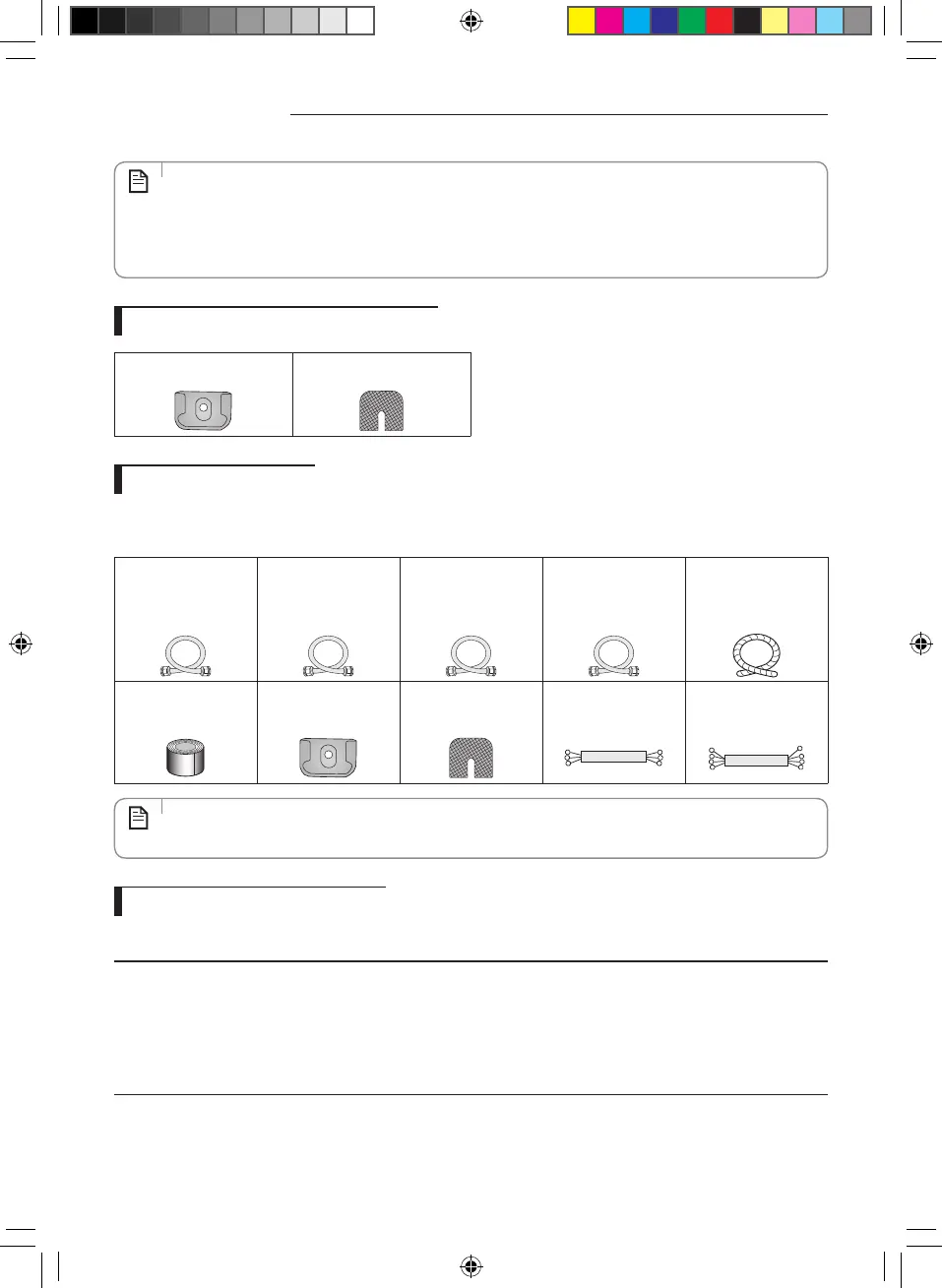

Accessories
• The flare nuts are attached to the end of each pipe of an evaporator or a service port. Use the nuts
when connecting the pipes.
• The wire assembly cable is optional. If it is not supplied, use the standard cable.
• The drain plug and rubber leg are only included when the air conditioner is supplied without the
assembly pipe as seen in the picture below.
NOTE
Accessories in the outdoor unit case
Rubber Legs (4)
✴✴09/12✴✴
Rubber Legs (4)
✴✴18/24✴✴
Optional accessories
The following connection accessories are optional. If they are not supplied, you should obtain them before
installing the air conditioner.
Insulated
Assembly Pipe,
Ø 6.35 mm (1)
✴✴09/12/18/24✴✴
Insulated
Assembly Pipe,
Ø 9.52 mm (1)
✴✴09✴✴
Insulated
Assembly Pipe,
Ø 12.7 mm (1)
✴✴12/18✴✴
Insulated
Assembly Pipe,
Ø 15.88 mm (1)
✴✴24✴✴
Drain Hose,
length 1 m (1)
Vinyl Tapes (2)
Rubber Legs (4)
✴✴09/12✴✴
Rubber Legs (4)
✴✴18/24✴✴
3-wire
Assembly Cable (1)
✴✴09/12/18✴✴
4-wire
Assembly Cable (1)
✴✴24✴✴
• If these accessories are supplied, they will be in the accessory box.
NOTE
Tools required for installation
General Tools
• Vacuum Pump(Backward flowing prevention) • Manifold Gauge • Stud Finder
• Torque Wrench • Pipe Cutter • Reamer • Pipe Bender • Spirit Level
• Screw Driver • Spanner • Drill • L Wrench • Measuring Tape
Tools for test operations
• Thermometer • Resistance Meter • Electroscope
RAC TCL ODM 아프리카향 IBIM_EN_Ver.1.0.indd 32 2019-04-08 오후 1:24:09
