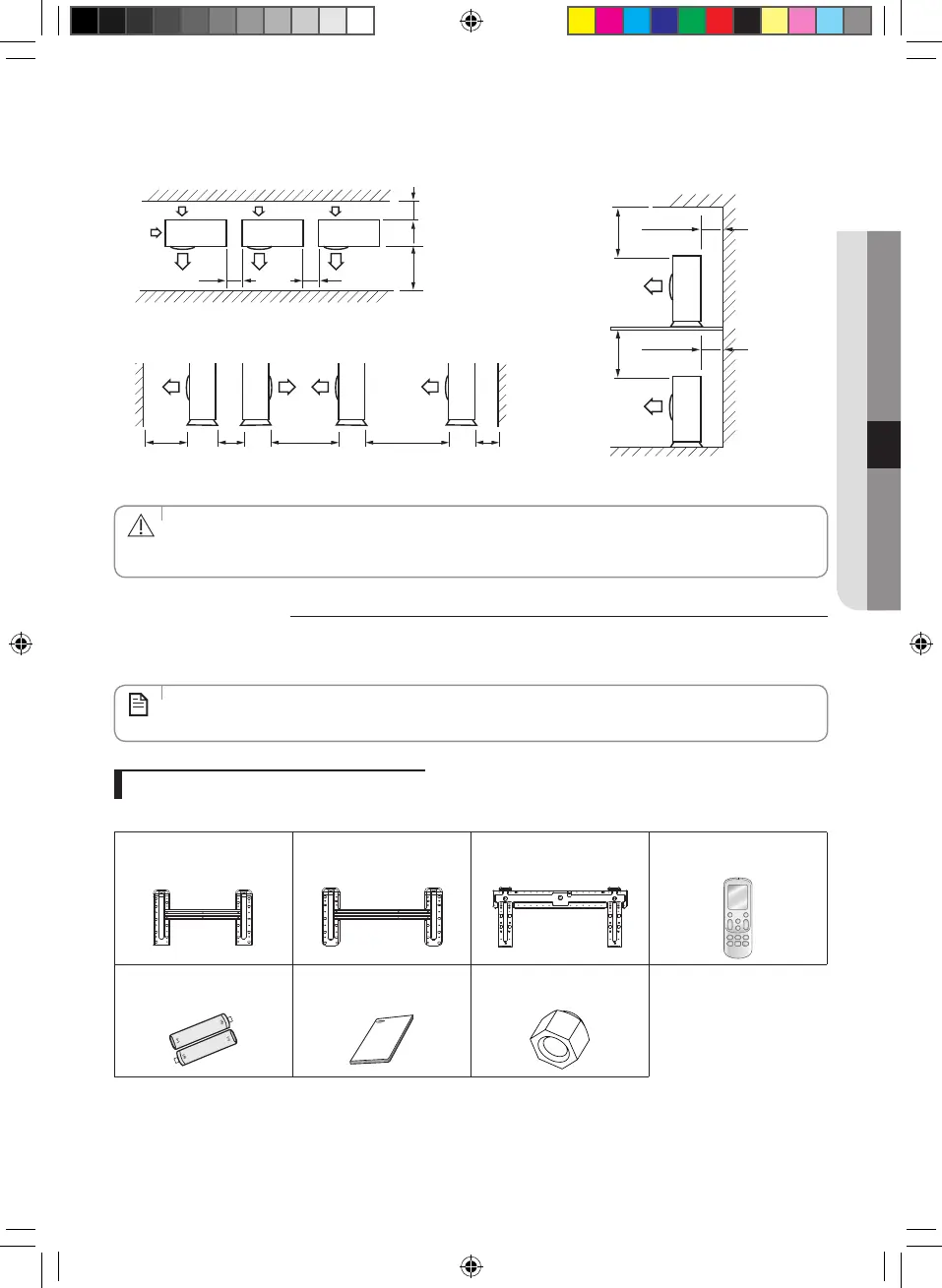

INSTALLATION
05
When the upper part of the outdoor unit
and the air outlet is opposite the wall
When the walls are blocking front and the rear side of the
outdoor units
When front and rear side of the outdoor unit is towards
the wall
500 or more
300 or more
500 or more
300 or more
300 or
more
1500 or
more
600 or more
600 or more
1500 or
more
600 or
more
3000 or
more
200 or
more
3000 or
more
(Unit : mm)
• If installation is done in inappropriate space, unit may generate sound and cause bad effect on the
product.
• Installation must be done in level and in a place where vibration will not cause any effect.
CAUTION
Accessories
The following accessories are supplied with the air conditioner:
• The number of each accessory is indicated in parentheses.
NOTE
Accessories in the indoor unit case
Installation Plate (1)
✴✴09/12✴✴
Installation Plate (1)
✴✴18✴✴
Installation Plate (1)
✴✴24✴✴
Remote controller (1)
Batteries for
Remote controller (2)
User’s & Installation Manual
(1)
Nut (2)
