Choosing the installation location

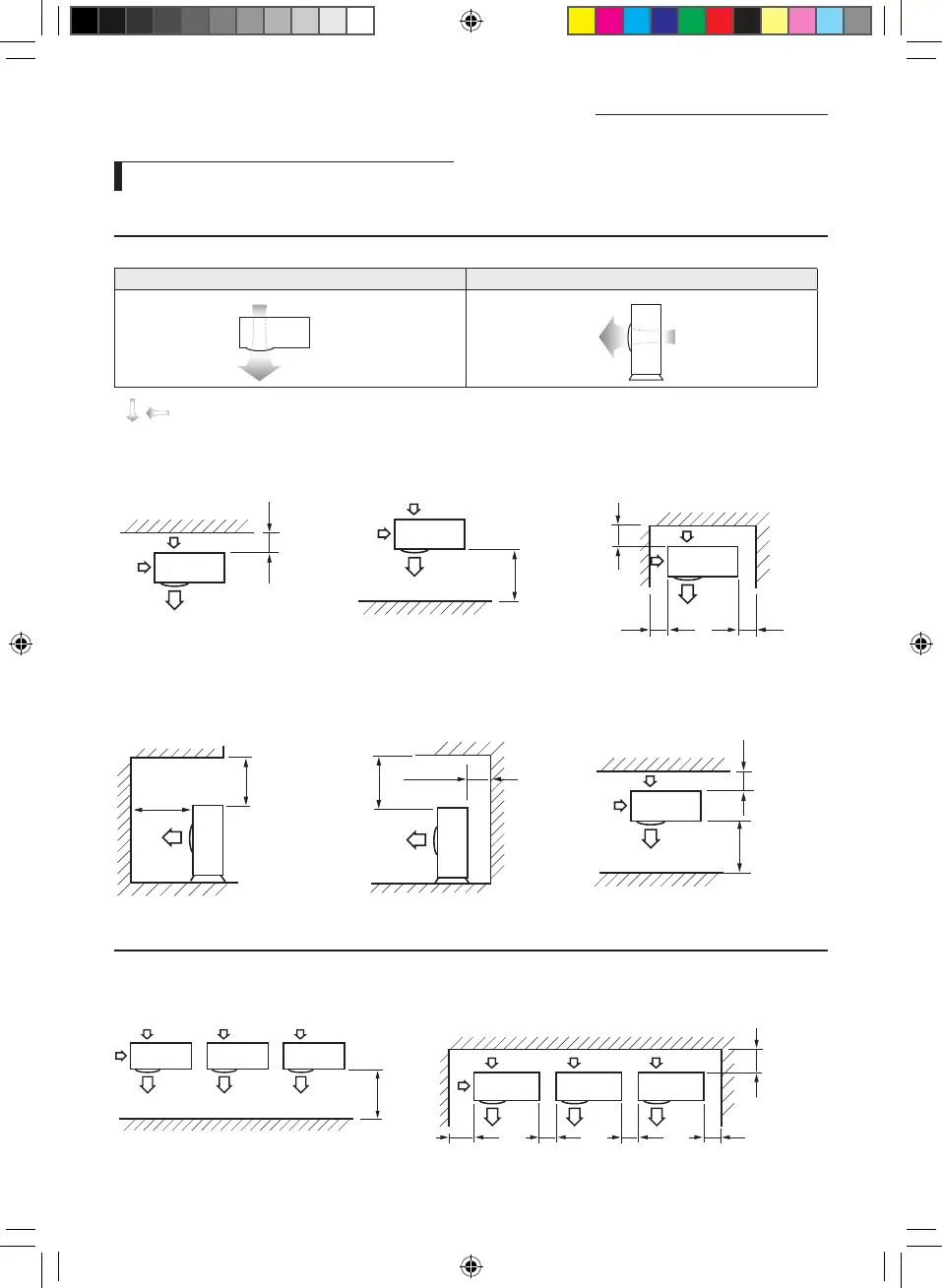

Space Requirements for Outdoor Unit
When installing 1 outdoor unit
Figure Description
Top view Side view
Air intake
Air outlet
Air outlet Air intake
, Air flow direction.
(Unit : mm)
When the air outlet is opposite
the wall
When the air outlet is towards
the wall
When 3 sides of the outdoor unit
are blocked by the wall
300 or more
1500 or more
300 or more
150 or more 600 or more
The upper part of the outdoor
unit and the air outlet is towards
the wall
The upper part of the outdoor
unit and the air outlet is opposite
the wall
When the walls are blocking front
and the rear side of the outdoor
unit
1500 or more
2000 or more
500 or more
300 or more
300 or
more
1500 or
more
When installing more than 1 outdoor unit
(Unit : mm)
1500 or more
When the air outlet is towards the wall When 3 sides of the outdoor unit are blocked by the wall
300 or more
300 or more 600 or more 600 or more 600 or more
