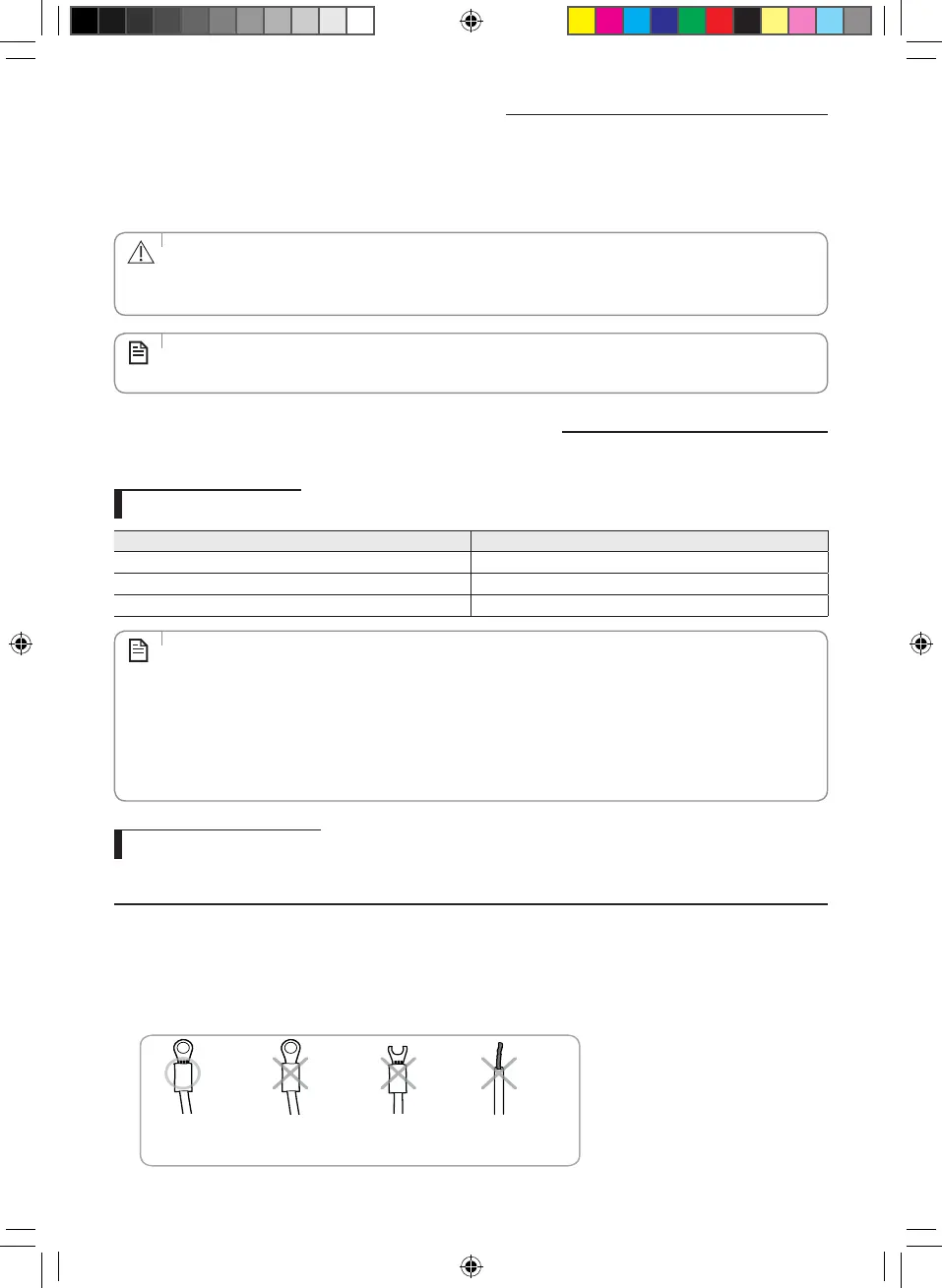

English-34
Fixing the installation plate
If you fix the indoor unit on a gypsum board
(1) Use stud finder to find out locations of the studs.
(2) Fix the plate hanger on two studs.
• Search for other spots if there are less than two studs, or the distance between the studs are different
from the plate hanger.
• Fix the installation plate without inclining to one side.
CAUTION
• Make sure that a wall can withstand the weight of the product. If you install the product in a place
where it is not strong enough to withstand the product weight, the unit could fall and cause injury.
NOTE
Connecting the assembly cable
Cable specification
Model Power cable
✴✴09✴✴ 3G1.0 mm² H05VV-F
✴✴12/18✴✴ 3G1.5 mm² H05VV-F
✴✴24✴✴ 3G2.5 mm² H07RN-F
• Connect the power cable to the auxiliary circuit breaker. If every pole fails to connect to the power
supply, it must be incorporated in a wire with a contact opening of ≥3 mm.
• Use shield cable (Category 5; less than 50pF/m) for noisy environmental site.
• The Interconnection cable is optional. If it is not supplied, use the standard cable.
• Power supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene
sheathed flexible cord (Code designation IEC: 60227 IEC53 / CENELEC:H05VV-F, IEC:60245 IEC 66 /
CENELEC:H07RN-F)
• Power & Communication cable shall not exceed 20m.
NOTE
Connecting the cable
Electrical work
1. For electrical and earth works, comply with the ‘technical standards of electrical installations’ and the the ‘wiring
regulations’ of the Local wiring regulations.
2. Tighten the terminal block screw to 1.2~1.8N•m(12~18kgf•cm).
3. Precautions when connecting terminal blocks of the indoor unit.
Before connecting, make sure the connecting part of the terminal socket is facing upwards.
Upside down The terminal
socketis damaged.
There is no ring
terminalto cover the
wire.
